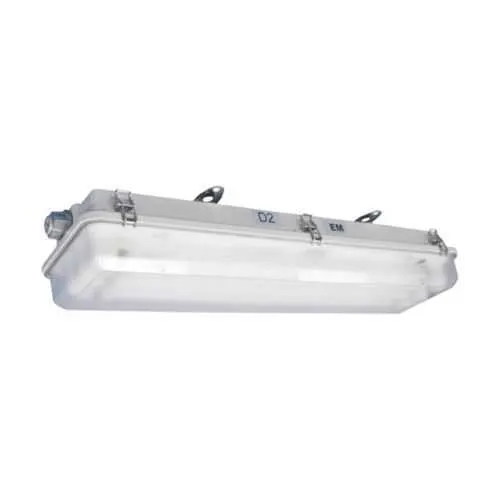

Eaton SPP23570LXCT SPP Light Fixture - IP66
Part Number: SPP23570LXCT
Quick Summary
SPP23570LXCT is a hazardous-area linear fluorescent light fixture designed for 2 ft spans and 3-lamp operation in challenging industrial environments. It delivers reliable illumination while minimizing maintenance downtime through pre-wired, through-feed wiring and included lamps. In hazardous locations, frequent lamp changes and corrosion risk drive maintenance downtime and safety concerns. It carries NEC/CEC compliance with Hazardous/Classified Locations (Class I, Division 2; Class II, Division 2; Class III), IP66 ingress protection, and NEMA 4 enclosure, ensuring safety and compliance. By offering universal 120-277 VAC input and 50/60 Hz compatibility, and a 2 ft length with 3 lamps, it reduces stocking needs and speeds installation, delivering predictable lifecycle performance and lower total cost of ownership.
Product Information
Extended Description
SPP23570LXCT Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent,3/4" entry (2) hubs,2 ft,Clear polycarb lens,T5HO mini bi-pin,Fiberglass-reinforced polyester,3-lamp,Lamps included,multi-point terminal block,Through feed,120-277 Vac,24W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP23570LXCT
UPC
662276497672
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
9 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
2 ft
Number of lamps
3-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
24W
Lens material
Clear polycarbonate
Special features
Lamps included, multi-point terminal block
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPP23570LXCT
Rugged fiberglass-reinforced polyester housing provides exceptional corrosion resistance and a sealed IP66/NEMA 4 enclosure, delivering lifecycle resilience in chemical plants, oil refineries, and outdoor installations. This protects ballast electronics from washdowns and harsh weather, reducing unscheduled maintenance and replacement costs. In practice, technicians appreciate fewer field repairs and safer operation in demanding environments, while procurement benefits from longer service intervals and lower total cost of ownership. Three-lamp, 24W configuration in a 2 ft form factor with a clear polycarbonate lens ensures efficient light distribution and long lamp life, with included lamps accelerating start-up and minimizing stockouts. The T5HO mini bi-pin lamps are ready for immediate use, supporting reliable performance from day one.
Get a Quick Quote for a Eaton SPP23570LXCT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPP23570LXCT?
Enquire Now
FAQs
The SPP23570LXCT is designed for through-feed wiring with 3/4" entry and two hubs, enabling flexible routing in restricted spaces. For safe installation, mount according to NEC/CEC guidelines, connect using the multi-point terminal block, and verify that the environment meets the Class I, Division 2 requirements. Always de-energize circuits during installation and follow the manufacturer’s installation instructions.
This fixture operates at 120-277 VAC with a 50/60 Hz frequency rating, and uses 24 W in a 3-lamp configuration. It supports 2 ft length, has a T5HO mini bi-pin lamp type, and includes lamps. The unit is IP66 rated and is suitable for through-feed wiring, offering reliable performance across variable industrial power sources.
Yes. With universal 120-277 VAC input, 2 ft length, and through-feed wiring, the SPP23570LXCT is well-suited for retrofit projects. The lamp inclusion simplifies stocking, while the fiberglass-reinforced polyester housing and IP66/NEMA 4 enclosure help ensure compatibility with challenging environments and existing conduit layouts.
The fixture is certified for Hazardous/Classified Locations (Class I Division 2, Class II Division 2, Class III) under NEC/CEC, with an IP66 ingress protection rating and a NEMA 4 enclosure. These protections reduce risk from dust, water, and chemical exposure while supporting regulatory compliance in hazardous-industrial settings.
Lamps are included, which shortens lead times and simplifies stocking. A multi-point terminal block and through-feed wiring streamline field connections, reducing installation time. The robust housing and lens resist corrosion and impact, lowering maintenance frequency, while universal voltage enables flexible deployment across existing or new facilities, delivering a favorable total cost of ownership.
