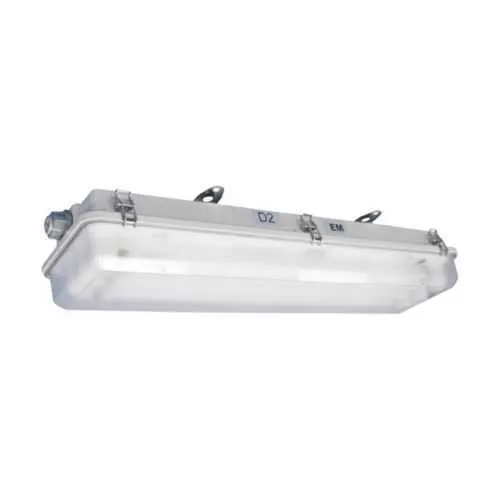

Eaton SPP42170SP Linear Fluorescent Light Fixture - IP66 Hazardous

Part Number: SPP42170SP
Manufacturer
Eaton
Part number
SPP42170SP

Quick Summary

Eaton SPP42170SP is a linear fluorescent light fixture designed for hazardous locations in industrial facilities. Many facilities struggle with maintenance in harsh environments, where ingress, corrosion, and frequent replacements disrupt operations. This fixture carries NEC/CEC compliance, IP66 ingress protection, and hazardous-location ratings to help you stay compliant and safe. Beyond compliance, it offers through-feed installation, a two-lamp 32W configuration, and durable fiberglass-reinforced polyester housing to reduce downtime and total cost of ownership. The 52.8 inch length and 4 ft lamp arrangement provide broad coverage for wide aisles and process areas. It runs on 120-277 VAC, 50/60 Hz, with an on/off switch and easy through-feed wiring for rapid, safe installation.

Product Information

Extended Description

SPP42170SP Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent,3/4" entry (2) hubs,4 ft,Matte polycarb lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,On/off switch,access plate,4-pole terminal block,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP42170SP
UPC
662276415669
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
32W
Lens material
Matte polycarbonate
Special features
On/off switch, access plate with 4-pole terminal block
Feature: Fiberglass-reinforced polyester housing provides chemical resistance and impact durability in tough environments. Business Impact: Reduces corrosion-related maintenance and replacement costs while extending service life in hazardous settings. Application: Chemical plants, oil & gas facilities, and other heavy industrial spaces requiring robust lighting. Feature: 2-lamp, 32W T8 configuration delivers balanced illumination with efficient power use. Business Impact: Lower energy consumption per lumen and improved visibility for critical tasks, supporting productivity gains. Application: Long-run corridors, work cells, and processing lines where consistent light is essential. Feature: IP66 ingress protection and NEMA 4 enclosure ratings ensure reliability against dust, water, and harsh washdowns. Business Impact: Compliance with stringent safety standards minimizes downtime and inspection risk. Application: Environments with high moisture, dust, or chemical exposure. Feature: Through-feed wiring and 3/4 inch entry hubs simplify installation and future modifications. Business Impact: Faster commissioning and scalable layouts reduce labor costs. Application: Retrofit projects and new installations across plants with modular wiring needs. Feature: Matte polycarbonate lens provides diffusion and impact resistance with low glare. Business Impact: Enhanced worker comfort and reduced eye strain over long shifts. Application: Open workspaces, maintenance bays, and assembly lines that demand glare control. Feature: 120-277 VAC, 50/60 Hz operation aligns with standard plant power. Business Impact: Eliminates the need for special transformers, enabling quick integration into existing electrical systems. Application: General plant integrations and multi-voltage facilities.

Get a Quick Quote for a Eaton SPP42170SP

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton SPP42170SP? Enquire Now

FAQs

The SPP42170SP is designed for through-feed mounting with 3/4-inch entry hubs and a 52.8 inch overall length. It supports 120-277 VAC operation at 50/60 Hz and uses a 4-pole terminal block with an accessible access plate, enabling straightforward wiring and modular expansion in Class I, Division 2 and Class II, Division 2 environments.
This fixture delivers 32W across two T8 Bi-pin lamps, in a 4 ft configuration, with a matte polycarbonate lens for diffused illumination. It operates on 120-277 VAC, 50/60 Hz, and is housed in a fiberglass-reinforced polyester enclosure rated IP66 and NEMA 4 for enhanced protection in harsh environments.
Yes. It is designed for Hazardous/Classified Locations with NEC/CEC compliance, IP66 ingress protection, and hazardous-location ratings (Class I, Division 2; Class II, Division 2; Class III). The rugged housing and sealed lens make it reliable where dust, moisture, and chemical exposure are concerns.
The unit adheres to NEC/CEC standards, carries a NEMA 4 rating, and IP66 ingress protection. It is intended for Hazardous/Classified Locations and aligns with broad industrial lighting requirements, helping ensure regulatory compliance and safer operation in challenging facilities.
The durable fiberglass-reinforced polyester housing, sealed matte lens, and simple through-feed wiring minimize maintenance intervals and downtime. Its two-lamp 32W design enhances efficiency, while robust construction reduces replacement costs over its service life, delivering a favorable total cost of ownership for industrial facilities.
