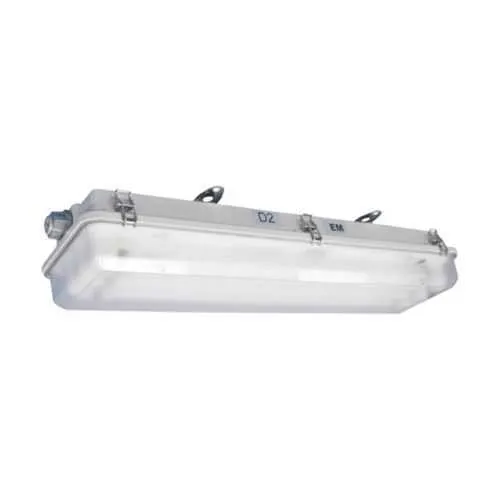

Eaton SPP42570XCL Linear Fluorescent Light Fixture - IP66 Hazardous Locations
Part Number: SPP42570XCL
Quick Summary
Eaton SPP42570XCL is a hazardous-area linear fluorescent light fixture designed for demanding industrial facilities. In harsh environments, reliable illumination and minimal maintenance downtime are essential to keep operations safe and productive. This luminaire meets NEC/CEC standards and IP66 protection, with hazardous-location ratings covering Class I Division 2, Class II Division 2, and Class III. Through-feed design and 4 ft length support straightforward mounting in long runs, while a 2-lamp configuration at 54W delivers ample light for high-bay or walkway applications. Lamps are included, simplifying procurement, and the 120-277 VAC supply broadens compatibility with existing electrical infrastructure. Built for rugged industries, it helps facilities meet compliance while lowering total cost of ownership and energy use.
Product Information
Extended Description
SPP42570XCL Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture,3/4" entry (2) hubs,4 ft,Clear polycarbonate lens,T5HO mini bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Through feed,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP42570XCL
UPC
662276497696
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
54W
Lens material
Clear polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPP42570XCL
Rugged housing and lens protection reduce damage from chemical exposure and impact in hazardous locations, translating to higher uptime and fewer maintenance interventions. The fiberglass-reinforced polyester body paired with a clear polycarbonate lens withstands harsh industrial environments such as chemical plants and mining operations, delivering durable performance over the life of the installation. A 54W, two-lamp configuration in a 4 ft form factor provides reliable, balanced illumination, while 120-277 VAC compatibility and 50/60 Hz operation simplify integration with existing electrical infrastructure and power systems, reducing inventory complexity and energy waste. The through-feed design with 3/4" entry and (2) hubs accelerates installation and future expansions, and lamps included minimizes initial procurement time. Certified IP66, NEMA 4, and NEC/CEC-compliant ratings help ensure compliance, safety, and risk reduction in hazardous-location lighting projects.
Get a Quick Quote for a Eaton SPP42570XCL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPP42570XCL?
Enquire Now
FAQs
The SPP42570XCL is designed for through-feed installation with a 4 ft layout and 3/4" entry. It features two hubs for easy conduit connections and supports 120-277 VAC at 50/60 Hz. Lamps are included, simplifying start-up. For hazardous locations, follow Class I Division 2 wiring practices and keep connections within the IP66-rated enclosure to ensure containment and safety.
This fixture uses a 2-lamp, 54W configuration with a T5HO mini Bi-Pin lamp type. The 4 ft length provides ample, uniform illumination across long runs, while the 120-277 VAC supply supports flexible electrical integration. Lamps included reduce lead times and procurement complexity, contributing to predictable lighting performance and lower total cost of ownership.
Yes. The SPP42570XCL is engineered for hazardous locations, with Class I Division 2 ratings and NEC/CEC compliance. It also carries IP66 ingress protection and a NEMA 4 enclosure, providing robust containment against dust, water, and washdowns typical of chemical and petrochemical facilities.
The luminaire adheres to NEC/CEC standards and carries Hazardous/Classified Locations ratings. It provides IP66 ingress protection and a NEMA 4 enclosure, with hazardous-location classifications including Class I Division 2, Class II Division 2, and Class III. This combination supports regulatory compliance and safer operation in demanding environments.
Lamps are included, reducing upfront procurement steps and accelerating implementation. The fiberglass-reinforced polyester housing and clear polycarbonate lens resist chemical exposure and physical impact, lowering replacement and maintenance costs. Its energy profile at 54W per 4 ft and broad voltage compatibility support steady performance and a favorable total cost of ownership in long-term industrial use.
