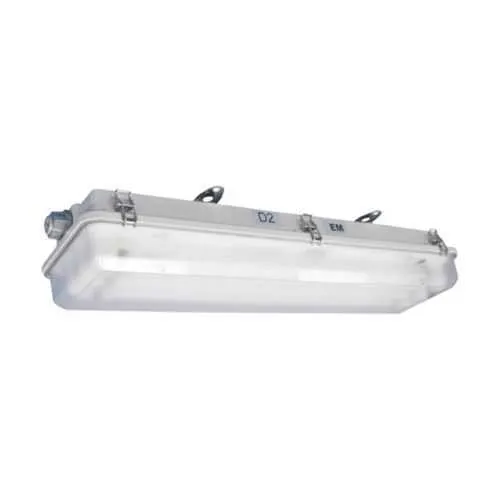

Eaton SPP42870EMT1L SPP Fluorescent Light - IP66
Part Number: SPP42870EMT1L
Quick Summary
Eaton SPP42870EMT1L is a hazardous-area fluorescent light fixture for industrial facilities requiring reliable coverage in demanding environments. It minimizes maintenance downtime and simplifies installation in hazardous or classified locations. It carries Hazardous/Classified Locations certification with NEC/CEC compliance to meet rigorous industrial standards. With a two-lamp, 4 ft configuration plus emergency battery back-up, this model delivers consistent, energy-efficient illumination that lowers lifecycle costs and supports ongoing operations in harsh settings. Designed for through-feed wiring and 3/4-inch entry, it also supports flexible installation in tight spaces and aligns with typical plant maintenance protocols.
Product Information
Extended Description
SPP42870EMT1L Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent,3/4" entry (2) hubs,4 ft,Matte polycarb lens,T12HO RDC,Fiberglass-reinforced polyester,2-lamp,battery back-up,one lamp,277V max,test switch,Lamps,Through feed,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP42870EMT1L
UPC
662276415799
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T12HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
48W
Lens material
Matte polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, test switch, lamps included
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPP42870EMT1L
Hazardous/Classified Locations certification → Compliance and safer operations → Suitable for chemical plants, refineries, and offshore facilities where lighting reliability is non-negotiable. IP66 ingress protection → Reduced dust and water ingress → Ideal for outdoor, washdown, or damp industrial environments requiring durable fixtures. Electrical compatibility and efficiency → 120-277 VAC, 50/60 Hz, 4 ft, 2-lamp, 48W → Lower energy costs and simplified power budgeting for warehouses and manufacturing floors. Through-feed wiring and 3/4 inch entry → Faster installation and easier field routing → Retrofit projects and new builds minimize downtime. Emergency battery back-up ballast with test switch → Maintains illumination during outages → Supports safety compliance and evacuation readiness in hazardous locations. Matte polycarbonate lens and fiberglass-reinforced polyester housing → Long service life with consistent light distribution → Suitable for demanding environments, reducing maintenance cycles and replacement costs.
Get a Quick Quote for a Eaton SPP42870EMT1L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPP42870EMT1L?
Enquire Now
FAQs
The SPP42870EMT1L is designed for through-feed wiring with a 3/4-inch entry, enabling flexible routing and simplified connections. This makes retrofit installations faster, reduces field labor, and supports consistent wiring practices across multiple fixtures in harsh environments.
It is rated for Hazardous/Classified Locations and complies with NEC/CEC standards. With IP66 ingress protection and NEMA 4 compatibility, the fixture is suited for demanding industrial settings where safety and regulatory compliance are critical.
Yes. The SPP42870EMT1L includes an emergency battery back-up ballast and a test switch, providing light during power interruptions and improving safety and evacuation readiness in hazardous locations.
The unit features a 3/4" entry and (2) hubs for through-feed wiring, supporting versatile mounting and straightforward integration into existing conduit layouts, which reduces installation time and potential wiring complications.
The fixture’s IP66-rated housing, robust fiberglass-reinforced polyester body, and 4 ft two-lamp design deliver durable performance with fewer maintenance cycles, lower downtime, and energy-efficient operation, translating to reduced lifecycle costs in hazardous-location facilities.
