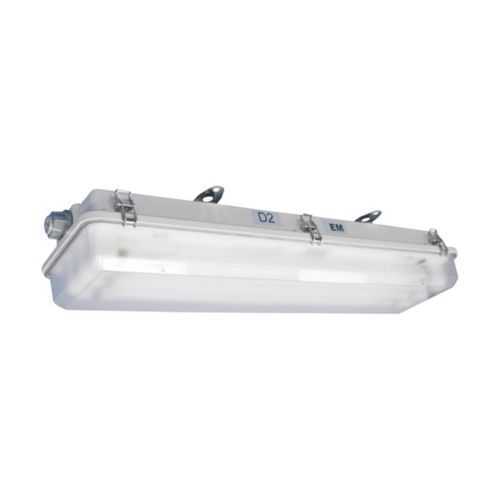

Eaton SPP43570L Linear Fluorescent Light Fixture - Hazardous/IP66
Part Number: SPP43570L
Quick Summary
The linear fluorescent light fixture from Eaton delivers reliable, code-compliant illumination for hazardous and classified locations. End users often grapple with luminaires that survive tough environments while supporting simple installation and quick maintenance. With a hazardous area rating (Class I, Division 2; Class II, Division 2; Class III), IP66 ingress protection, and a NEMA 4 enclosure, this model blends safety with rugged durability and long service life. Its 54W, 4 ft, 3-lamp design and through-feed wiring support flexible retrofits across facilities operating with 120–277 VAC and 50/60 Hz power. For engineers and procurement teams, the SPP43570L translates to reduced downtime, predictable maintenance, lamps included, a matte polycarbonate lens, and a fiberglass-reinforced polyester housing that withstands harsh processes.
Product Information
Extended Description
SPP43570L Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture,3/4" entry (2) hubs,4 ft,Matte polycarbonate lens,T5HO mini bi-pin,Fiberglass-reinforced polyester,3-lamp,Lamps included,Through feed,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPP linear fluorescent light fixture
Catalog Number
SPP43570L
UPC
662276497719
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Lamp length
4 ft
Number of lamps
3-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
54W
Lens material
Matte polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPP43570L
Hazardous and Classified Locations rating with Class I, Division 2; Class II, Division 2; Class III ensures compliance in volatile environments, while IP66 and NEMA 4 provide robust protection against dust and water ingress. This combination reduces regulatory risk and maintenance costs in chemical plants, refineries, and wastewater plants. The rugged fiberglass-reinforced polyester housing delivers chemical resistance and extended service life, even in aggressive environments. Lamps are included, enabling immediate deployment and eliminating separate procurement steps, which shortens project timelines and lowers total cost of ownership. Through-feed wiring with two hubs simplifies retrofit integrations into existing 120–277 VAC systems, reducing field labor and installation complexity. The 4 ft, 3-lamp configuration delivers high lumen output with efficient 54W consumption, optimizing energy use in long-run corridors and work areas. T5HO mini bi-pin lamps support common maintenance stock, while matte polycarbonate lens provides impact resistance and clear visibility in harsh conditions. This fixture aligns with NEC/CEC standards, delivering reliable performance in hazardous facilities while maintaining compatibility with Pauluhn Intrepid lighting families and retrofit strategies.
Get a Quick Quote for a Eaton SPP43570L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPP43570L?
Enquire Now
FAQs
SPP43570L is designed for Class I, Division 2; Class II, Division 2; Class III environments and carries IP66 with a NEMA 4 enclosure. It uses 120–277 VAC supply and through-feed wiring with two hubs, making retrofits straightforward in facilities that require strict hazardous-location compliance and durable enclosure protection.
Key certifications include Haz. Location classifications (Class I/II/III, Div. 2), NEC/CEC compliance, IP66 ingress protection, and NEMA 4 enclosure. These ratings support safe operation in hazardous environments such as chemical plants, refineries, and wastewater treatment facilities, while meeting regulatory requirements.
Ideal for hazardous or classified locations in chemical plants, oil and gas facilities, water treatment, and industrial plants requiring durable illumination. The 4 ft, 3-lamp design with 54W output and through-feed wiring supports long-run lighting schemes, while the rugged housing withstands chemical exposure and washdown conditions.
Lamps are included, enabling immediate startup and simplified stocking. The T5HO mini bi-pin lamps are commonly available, and the matte polycarbonate lens provides impact resistance. The IP66/NEMA 4 enclosure minimizes ingress, reducing cleaning frequency and downtime in harsh environments.
SPP43570L features through-feed wiring and (2) hubs for flexible entry, aligning with Pauluhn Intrepid hazardous-area luminaires. Its 52.8 in length, 7.63 in width, and 5 in height fit standard 4-ft envelope expectations, while 54W output and 120–277 VAC compatibility simplify upgrades and retrofit projects.
