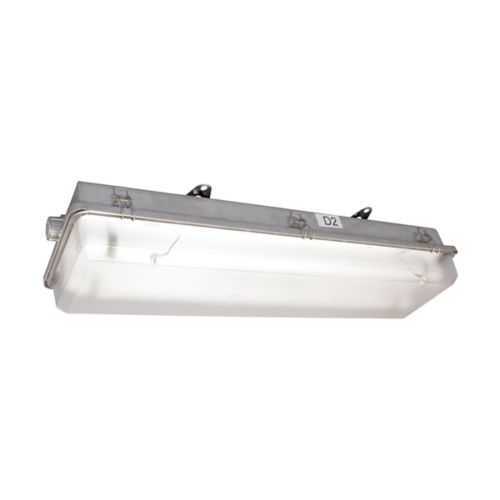

Eaton SPS42170 Lighting Fixture - IP66 Hazardous Locations
Part Number: SPS42170
Quick Summary
Eaton SPS42170 lighting fixture delivers reliable hazardous-location illumination for industrial facilities. Maintenance and compliance in harsh environments demand rugged, IP-rated fixtures with long life and easy wiring. This model meets NEC/CEC standards, IP66 ingress protection, and a NEMA 4 enclosure, helping you stay compliant across operations. Designed for through-feed mounting in hazardous areas, the SPS42170 uses a 4 ft lamp, two-lamp configuration with a 32W T8 bi-pin system, and a 120-277 VAC input, simplifying installation and stock management. With corrosion-resistant 304 stainless steel and a matte polycarbonate lens, it delivers durable performance with predictable maintenance and lifecycle costs.
Product Information
Extended Description
SPS42170 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture,3/4" entry (2) hubs,50/60 Hz,4 ft lamp,Fluorescent,Matte polycarbonate lens,T8 bi-pin,304 stainless steel,2-lamp,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture
Catalog Number
SPS42170
UPC
662276415980
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
25.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
32W
Lens material
Matte polycarbonate
Eaton Crouse-Hinds SPS42170 3D drawing
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPS42170
Long-format SPS42170 length accommodates two-lamp 32W T8 fluorescent configuration, delivering wide-area coverage for industrial bays and process areas. Feature → Business Impact → Application: The 52.8 in body enables high lumen output while maintaining a compact 7.63 in width and 5 in height, supporting efficient mounting and retrofit projects in facilities with limited ceiling space. Through-feed design and 3/4" entry with two hubs simplify wiring, reducing field splice points and installation time for maintenance upgrades. The 304 stainless steel housing provides superior corrosion resistance in chemical, washdown, or offshore environments, lowering lifecycle maintenance costs and downtime. Matte polycarbonate lens reduces glare and improves visibility for operators in busy production lines. This 2-lamp fixture aligns with 120–277 VAC power and 50/60 Hz supply, improving compatibility with existing electrical infrastructure while enabling scalable upgrades.
Get a Quick Quote for a Eaton SPS42170
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPS42170?
Enquire Now
FAQs
Install SPS42170 using its through-feed entry with two hubs to minimize field splices. Ensure power is de-energized, mount on suitable supports, and connect to a 120-277 VAC supply within 50/60 Hz. Use proper enclosure seals and gaskets to maintain IP66 protection, and follow NEC/CEC wiring methods for Class I, Division 2 environments.
SPS42170 is rated IP66 and NEMA 4, confirming strong ingress protection and enclosure integrity. It supports NEC/CEC standards and NEC hazardous ratings for Class I, Division 2, Class II, Division 2, and Class III locations. These certifications ensure compliance, safe operation in hazardous areas, and reduced risk during inspections and audits.
Yes. SPS42170 operates on 120-277 VAC and supports 50/60 Hz, making it compatible with a wide range of industrial power systems. The through-feed configuration and two-lamp 32W T8 setup provide predictable ballast loads and ease of integration with existing wiring schemes in hazardous facilities.
Ideal for chemical plants, refineries, and other hazardous/classified locations, SPS42170 provides broad illumination along aisles, tanks, and process areas. Its corrosion-resistant 304 stainless steel housing and matte polycarbonate lens withstand washdowns and chemical exposure, while the 4 ft, 2-lamp, 32W T8 design supports efficient, low-maintenance operation in demanding environments.
The 304 stainless steel housing and IP66/NEMA 4 protection reduce corrosion and water ingress, extending service life and lowering maintenance cycles. The through-feed wiring and 52.8 in two-lamp layout minimize downtime during upgrades, while NEC/CEC compliance minimizes regulatory risk, contributing to a lower total cost of ownership in asset-intensive facilities.
