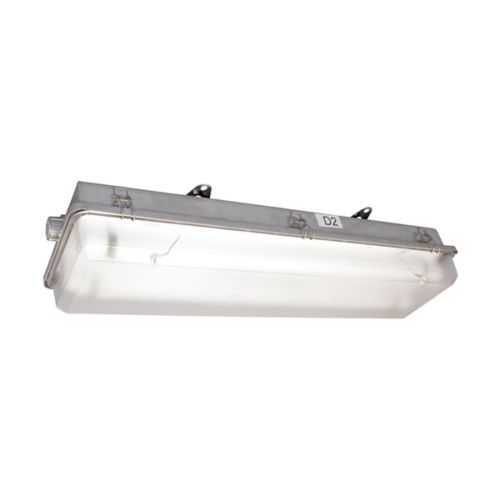

Eaton SPS42172XC light fixture - IP66 Hazardous Location
Part Number: SPS42172XC
Quick Summary
The SPS42172XC light fixture from Eaton provides hazardous-location lighting for industrial facilities. In harsh environments, unreliable lighting can slow maintenance and compromise safety. This luminaire carries NEC Class I, Division 2; Class II, Division 2; and Class III ratings, plus IP66 and NEMA 4 for rugged performance in hazardous locations. Through-feed wiring and 304 stainless steel construction help minimize downtime and maintenance costs while delivering long-term reliability. Designed for flexible installations in corrosive or washdown environments, it supports cost-effective retrofits and compliant, consistent illumination across demanding processes. With 52.8 inch length and two-lamp setup, it delivers even coverage across large work zones, reducing shadowing and improving operator comfort.
Product Information
Extended Description
SPS42172XC Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture,1/2" entry (2) hubs,50/60 Hz,4 ft lamp,Fluorescent,Clear polycarbonate lens,T8 bi-pin,304 stainless steel,2-lamp,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture
Catalog Number
SPS42172XC
UPC
662276373419
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
25.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
1/2"
Entry type
(2) hubs
Wattage
32W
Lens material
Clear polycarbonate
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPS42172XC
Feature: Hazardous location readiness with NEC/CEC classifications and IP66/NEMA 4 ratings → Business Impact: Ensures regulatory compliance and safer operations in Class I, II, III hazardous environments, reducing risk and avoidable downtime → Application: Chemical plants, oil & gas facilities, refineries. Feature: 4 ft lamp length with two lamps and 32W consumption at 120-277 Vac, 50/60 Hz → Business Impact: Delivers efficient, bright illumination with lower energy costs and longer interval between replacements → Application: Large production lines and washdown zones requiring uniform coverage. Feature: 304 stainless steel construction with clear polycarbonate lens and IP66 protection → Business Impact: Superior corrosion resistance and durability in aggressive atmospheres, lowering lifecycle maintenance costs → Application: Washdown areas, chemical processing, offshore locations. Feature: Through-feed style with 1/2" entry and (2) hubs → Business Impact: Simplifies field wiring and enables scalable daisy-chaining, reducing installation time and labor costs → Application: Series installations and retrofit projects in existing PauluhnIntrepid systems. Feature: 2-lamp, T8 bi-pin configuration with 52.8 in overall length → Business Impact: Consistent lumen output and easy lamp replacement, improving throughput and reducing downtime → Application: Large industrial bays and hazardous process areas where uniform light coverage is essential.
Get a Quick Quote for a Eaton SPS42172XC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPS42172XC?
Enquire Now
FAQs
The SPS42172XC uses a through-feed configuration with a 1/2 inch entry and two hubs for wiring, supporting 120–277 VAC at 50/60 Hz. Installers must follow NEC/CEC guidelines for hazardous locations, ensure proper sealing with gaskets, and mount per the provided instructions. The stainless steel housing and IP66 rating help withstand washdown and corrosive environments, reducing maintenance needs.
Yes. SPS42172XC is part of Eaton’s Pauluhn Intrepid hazardous-area line and shares mounting footprints and electrical characteristics with existing SPS modules. It can be retrofitted or expanded within compatible installations. Verify catalog references and mounting hardware compatibility to ensure seamless integration and consistent performance in hazardous locations.
Best suited for hazardous/classified locations in chemical plants, refineries, oil and gas facilities, and other washdown environments. The 4 ft length and two-lamp 32W configuration provide even illumination across large work zones, while IP66 and NEMA 4 protection support reliability in tough industrial settings. It is ideal where compliance and robust construction are priorities.
SPS42172XC carries NEC Class I, Division 2; Class II, Division 2; and Class III ratings, along with IP66 and NEMA 4 compliance. It operates at 120–277 VAC and 50/60 Hz, uses a fluorescent lamp (T8 bi-pin), and is designed for hazardous/classified locations. These certifications support regulatory adherence and safe operation in demanding facilities.
The 304 stainless steel housing and clear polycarbonate lens provide excellent corrosion resistance, enabling longer service life in harsh environments and reducing replacement cycles. With 32W two-lamp operation and through-feed wiring, energy use is optimized and installation times are minimized. The net result is lower lifecycle costs, fewer maintenance trips, and higher equipment uptime in critical process areas.
