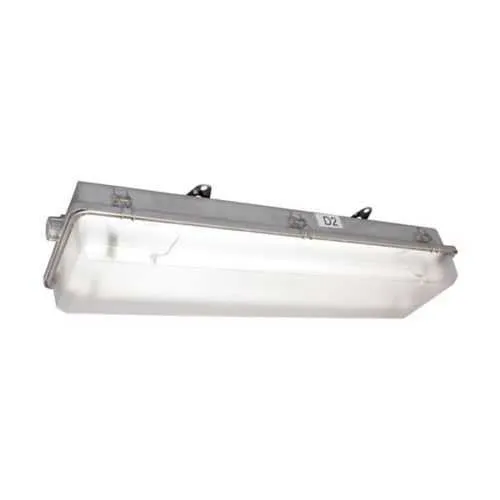

Eaton SPS42172XCEMT1 Linear Fluorescent Fixture - IP66
Part Number: SPS42172XCEMT1
Quick Summary
SPS42172XCEMT1 is an Eaton hazardous-location linear fluorescent light fixture designed for harsh industrial spaces. Engineers often struggle with meeting strict code compliance while minimizing downtime in classified locations. This luminaire carries NEC/CEC compliance, IP66 ingress protection, and Hazardous/Classified Locations ratings (Class I, Division 2; Class II, Division 2; Class III), helping ensure safe, compliant operation. With through-feed wiring, a 52.8 in length and 304 stainless steel body, it installs quickly in demanding environments while resisting corrosion. The 4 ft, two-lamp configuration delivers 32W of fluorescent output across a clear polycarbonate lens, with emergency battery backup options and a 120-277 Vac supply to support business continuity and maintenance efficiency.
Product Information
Extended Description
SPS42172XCEMT1 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent,1/2" entry (2) hubs,4 ft,Clear polycarb lens,T8 bi-pin,304 stainless steel,2-lamp,Emergency battery back-up,one lamp,277V max,test switch,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture
Catalog Number
SPS42172XCEMT1
UPC
662276375314
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
25.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
1/2"
Entry type
(2) hubs
Wattage
32W
Lens material
Clear polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, test switch
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPS42172XCEMT1
Hazardous-location rating and IP66 ingress protection reduce risk and simplify compliance in oil and gas, chemical, and mining facilities. This directly translates to lower insurance/operational risk and less rework during audits. The 52.8 in 4 ft footprint and 2-lamp 32W configuration deliver broad, uniform illumination along long runs, cutting fixture density needs and improving throughput in conveyors, washdown zones, and process lines. Built from 304 stainless steel with a clear polycarbonate lens, the unit resists corrosion and allows easy cleaning in washdown environments, extending service life and reducing maintenance cycles. An emergency battery back-up ballast helps sustain critical lighting during outages, supporting safety protocols and incident response. Through-feed wiring and two hubs streamline installation, enabling faster retrofit and new-build deployments across complex facilities, while remaining compatible with 120–277 Vac power rails and 50/60 Hz operation. This combination of rugged construction, reliable illumination, and flexible wiring supports total cost of ownership improvements and long-term ROI for hazardous-location projects.
Get a Quick Quote for a Eaton SPS42172XCEMT1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPS42172XCEMT1?
Enquire Now
FAQs
SPS42172XCEMT1 is designed for universal 120–277 Vac supply and 50/60 Hz operation. Its through-feed configuration simplifies integration in long runs, with two hubs and a 1/2" entry size to accommodate common industrial wiring schemes. This makes retrofit projects faster and minimizes panel-time, even in complex hazardous-area installations.
Key specs include 32W fluorescent output, 2-lamp configuration, T8 bi-pin lamps, 52.8 in length, IP66 ingress protection, 304 stainless steel construction, clear polycarbonate lens, and NEC/CEC compliance. It supports 120–277 Vac and operates at 50/60 Hz, with an emergency battery back-up ballast for outage resilience.
This fixture is ideal for hazardous or classified locations such as oil and gas facilities, chemical plants, mining operations, and washdown-intensive sites. Its IP66 rating and Class I, Division 2 approval enable safe, compliant illumination in challenging environments while delivering robust reliability and easy maintenance.
The luminaire carries NEC/CEC compliance, IP66 ingress protection, and Hazardous/Classified Locations ratings (Class I, Division 2; Class II, Division 2; Class III), along with a NEMA 4 rating. These certifications support safe operation, regulatory compliance, and durability in demanding industrial settings.
Benefits include emergency battery back-up for outage protection, reducing downtime costs; corrosion-resistant 304 stainless steel construction for longer service life; through-feed wiring and hubs for faster installs; and a long-lifespan reducing maintenance intervals. Collectively, these factors contribute to lower total cost of ownership and a favorable ROI in hazardous-location programs.
