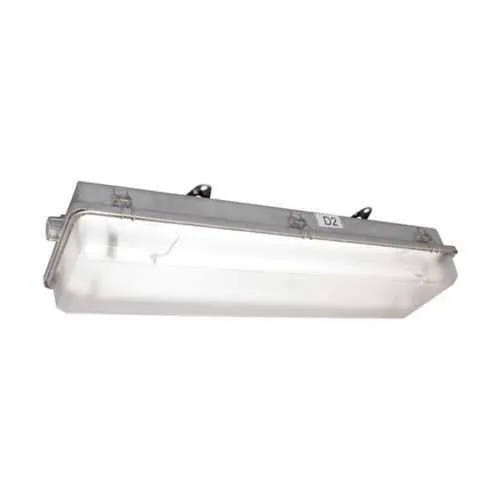

Eaton SPS42870 Linear Fluorescent Light Fixture - IP66
Part Number: SPS42870
Quick Summary
The SPS42870 is an Eaton linear fluorescent light fixture for hazardous locations. Engineers often struggle to maintain safe, reliable illumination in Class I/II/III zones while managing complex through-feed and entry configurations. This luminaire meets NEC/CEC standards, carries IP66 ingress protection, and is certified for Hazardous/Classified Locations (Class I, Division 2; Class II, Division 2; Class III). Built for durability, it features 304 stainless-steel housing and a matte polycarbonate lens. With a 4 ft, 2-lamp T12HO RDC design at 48W, and 120–277 VAC 50/60 Hz operation, it supports flexible power sourcing and longer service life in demanding environments. This combination supports predictable operations, faster upgrades, and enhanced facility safety across demanding industrial sites.
Product Information
Extended Description
SPS42870 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture,3/4" entry (2) hubs,50/60 Hz,4 ft lamp,Fluorescent,Matte polycarbonate lens,T12HO RDC,304 stainless steel,2-lamp,Through feed,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture
Catalog Number
SPS42870
UPC
662276416062
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
25.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T12HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
48W
Lens material
Matte polycarbonate
Eaton Crouse-Hinds SPS42870 3D drawing
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPS42870
Feature: Hazardous-location certification and IP66 protection → Business Impact: NEC/CEC compliance minimizes regulatory risk and reduces unplanned downtime in demanding environments → Application: Use in chemical plants, refineries, and other hazardous-area facilities that require reliable, compliant lighting. Feature: 304 stainless steel housing and matte polycarbonate lens → Business Impact: corrosion resistance and easy cleaning extend service life in washdown and corrosive environments → Application: suitable for food processing plants, marine terminals, and chemical processing areas where durability matters. Feature: 4 ft length with a 2-lamp T12HO RDC configuration delivering 48W → Business Impact: balanced brightness and energy efficiency for long runs while minimizing maintenance costs → Application: aisle lighting, workbench zones, and assembly lines where consistent illumination is critical. Feature: Wide power range 120–277 VAC at 50/60 Hz → Business Impact: simplifies retrofits and reduces panel diversity, cutting installation time and costs → Application: multi-branch facilities and retrofits across plants with variable power distribution. Feature: Through-feed design with 3/4 inch entry and two hubs → Business Impact: streamlined field wiring and flexible mounting, minimizing installation labor → Application: complex hazardous-location wiring where multiple feeds and terminations are required. Feature: NEMA 4 housing, IP66 and Class I/Division 2; II/Division 2; III ratings → Business Impact: boosts uptime by withstanding dust, water and intrusion in harsh environments → Application: new-build projects and upgrades requiring proven rugged lighting. Feature: Through-feed wiring flexibility and modular mounting → Business Impact: reduces install time and simplifies future maintenance by allowing quick lamp access and hub reconfiguration → Application: facility upgrades in hazardous locations where downtime costs matter, with compatibility to common T12HO RDC lamps and standard ballast configurations. Feature: Long-term durability and easy field servicing → Business Impact: extends component life, reduces maintenance intervals, and lowers replacement costs → Application: remote sites and on-site service scenarios where robust lighting and quick access are critical.
Get a Quick Quote for a Eaton SPS42870
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPS42870?
Enquire Now
FAQs
For SPS42870, plan for through-feed wiring, dual hubs, and 3/4 inch entry to simplify field wiring in Class I, Division 2 areas. Use proper sealing, mounting hardware, and cable management per NEC/CEC guidelines; ensure IP66 protection is maintained during installation and servicing.
The SPS42870 operates at 120–277 VAC with a 50/60 Hz supply, delivering 48 watts across two T12HO RDC lamps in a 4 ft configuration. The luminaire supports through-feed wiring and features a 4 ft lamp length for extended runs with consistent brightness.
Yes. SPS42870 is rated for Hazardous/Classified Locations with NEC hazardous ratings including Class I, Division 2; Class II, Division 2; and Class III, making it suitable for chemical, oil, and processing sites with stringent safety requirements.
SPS42870 carries NEC/CEC standards, IP66 ingress protection, and a NEMA 4 enclosure rating. These certifications indicate compliance with safety and durability requirements for hazardous-location lighting, aiding regulatory approvals and reliable performance in tough environments.
The fixture’s 304 stainless steel housing, long-lamp life, and easy field servicing reduce maintenance cycles and downtime. Combined with energy-efficient 48W operation, facilities can expect lower energy costs and longer replacement intervals, improving overall return on investment in continuous-operation settings.
