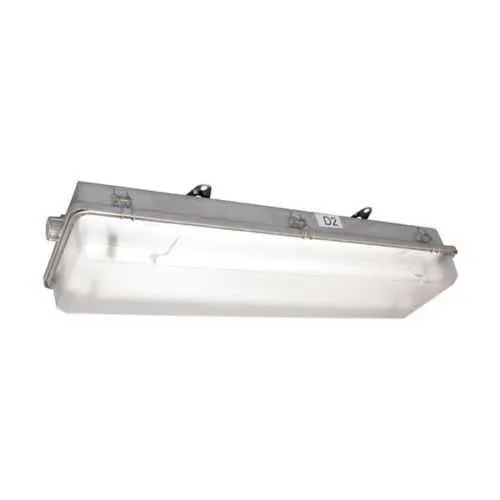

Eaton SPS42870EM1LZ Linear Fluorescent Light Fixture - IP66
Part Number: SPS42870EM1LZ
Quick Summary
Eaton SPS42870EM1LZ is a hazardous-area linear fluorescent light fixture designed for harsh industrial environments. Facilities operating in washdown zones, chemical plants, or offshore locations need luminaires that resist moisture, dust, and corrosive elements without frequent maintenance. This fixture meets IP66 protection, NEMA 4 enclosure, and NEC/CEC hazardous-location standards (Class I, Division 2; Class II, Division 2; Class III), ensuring compliant operation where safety and reliability matter most. Built in 316 stainless steel with a matte polycarbonate lens, it withstands corrosion while delivering clear, long-life illumination. Through-feed wiring, 120–277 Vac operation, and a 4 ft two-lamp configuration provide flexible integration, reducing installation time and lifecycle costs for regulated facilities.
Product Information
Extended Description
SPS42870EM1LZ Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent,3/4" entry (2) hubs,4 ft,Matte polycarb lens,T12HO RDC,316 stainless steel,2-lamp,Emergency battery back-up,one lamp,277V max,lamps included,Through feed,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture
Catalog Number
SPS42870EM1LZ
UPC
662276416079
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
25.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
316 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T12HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
48W
Lens material
Matte polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, lamps included
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPS42870EM1LZ
316 stainless steel construction delivers superior corrosion resistance in harsh environments, extending fixture life and lowering replacement costs for chemical plants and marine facilities. The result is fewer maintenance calls and longer maintenance intervals, translating to lower total cost of ownership. IP66 protection and a NEMA 4 enclosure safeguard against water ingress and dust in washdown zones, supporting compliant operation in offshore platforms and food/beverage processing plants where cleanliness is critical. With a 48W, 4 ft two-lamp T12HO RDC configuration and a broad 120–277 Vac, 50/60 Hz supply, the unit supports flexible system design and faster commissioning across mixed electrical environments, reducing project lead times. Through-feed wiring and two hubs enable simpler, scalable installations in retrofit and new-build projects. The emergency battery back-up ballast enhances safety-critical lighting, minimizing downtime during power outages and easing regulatory compliance for egress lighting.
Get a Quick Quote for a Eaton SPS42870EM1LZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPS42870EM1LZ?
Enquire Now
FAQs
When installing SPS42870EM1LZ in hazardous locations, verify that the supply is within the 120–277 Vac range and supports 50/60 Hz operation. Use the through-feed wiring configuration and two hubs for flexible routing, ensure the 3/4 inch entry is utilized, and mount to a suitable surface that maintains IP66/NEMA 4 enclosure integrity. Lamps are included, reducing procurement steps and ensuring immediate operation after installation. Adhere to NEC/CEC hazardous-location requirements during commissioning to maintain compliant performance.
The fixture operates at 48W with a 4 ft, two-lamp configuration using fluorescent lamps (T12HO RDC). It supports 120–277 Vac input at 50/60 Hz and includes an emergency battery back-up ballast for egress lighting. The through-feed design allows ease of wiring, and the two hubs support flexible entry, simplifying integration into existing electrical systems in hazardous environments.
Yes. SPS42870EM1LZ is designed for hazardous/classified locations with IP66 protection and a NEMA 4 enclosure. Its 316 stainless steel construction and NEC/CEC hazard classifications (Class I Division 2, II Division 2, III) make it well-suited for offshore platforms, chemical processing plants, and wastewater facilities where corrosion resistance and stringent safety standards are required.
The fixture complies with NEC/CEC hazardous-location standards (Class I, Division 2; Class II, Division 2; Class III), is IP66 rated, and uses a NEMA 4 enclosure. It is intended for Hazardous/Classified Locations and features through-feed wiring for robust, code-compliant installation in demanding industrial settings.
The unit’s 316 stainless steel body and matte polycarbonate lens resist corrosion and wear in harsh environments, extending service life. Emergency back-up ballast reduces downtime during outages, and the lamps are included to simplify procurement and commissioning. Overall, the fixture minimizes maintenance frequency, supports reliable operation in hazardous zones, and lowers lifecycle costs for regulated facilities.
