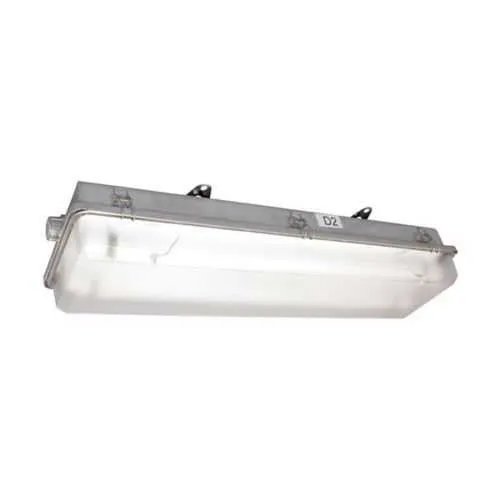

Eaton SPS42870EMT1LXC Linear Fluorescent Light - IP66
Part Number: SPS42870EMT1LXC
Quick Summary
SPS42870EMT1LXC is a hazardous-location linear fluorescent fixture designed to illuminate industrial spaces. In challenging environments, you need lighting that starts reliably, resists dust and moisture, and can be installed quickly to minimize downtime. It meets NEC/CEC standards, offers IP66 ingress protection, and is rated for Hazardous/Classified Locations (Class I, Division 2), ensuring compliance and safe operation in demanding facilities. With through-feed wiring, 3/4" entry, and 2-lamp capability, this fixture supports efficient installation and scalable layouts. Built from 304 stainless steel and finished with a clear polycarbonate lens, it provides robust durability. Emergency battery back-up, lamps included, and 120-277 VAC compatibility translate into lower maintenance costs and faster return on investment for industrial plants.
Product Information
Extended Description
SPS42870EMT1LXC Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent,3/4" entry (2) hubs,4 ft,Clear polycarb lens,T12HO RDC,304 stainless steel,2-lamp,battery back-up,one lamp,277V max,test switch,lamps included,Through feed,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture
Catalog Number
SPS42870EMT1LXC
UPC
662276374621
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
25.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T12HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
48W
Lens material
Clear polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, test switch, lamps included
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPS42870EMT1LXC
Feature: 304 stainless steel housing provides corrosion resistance in chemical and washdown environments. Business Impact: Reduces maintenance cycles and replacement costs while extending service life in demanding facilities. Application: Chemical processing plants, refineries, and other harsh environments requiring durable hardware. Feature: 4 ft length with a 52.8 in footprint and 2-lamp T12HO RDC configuration. Business Impact: Delivers balanced illumination across large aisles or work zones, increasing productivity and reducing eye strain. Application: Manufacturing floors and staging areas needing uniform light distribution. Feature: IP66 ingress protection and Hazardous/Classified Location ratings (Class I, Division 2). Business Impact: Ensures compliance with safety codes and protection against dust and water ingress, lowering risk of electrical faults. Application: Environments with moisture, dust, or explosive atmospheres. Feature: Emergency battery back-up ballast with lamps included. Business Impact: Maintains essential illumination during power outages, supporting safety procedures and exit-path visibility. Application: Emergency lighting and continuous operation requirements in industrial facilities. Feature: Through-feed mounting with 3/4" entry and two hubs. Business Impact: Simplifies wiring and installation, enabling scalable layouts and reduced downtime. Application: Large-scale installations in hazardous locations. Feature: 120-277 VAC, 50/60 Hz, 277V max operation. Business Impact: Flexible power compatibility across facility electrical systems, minimizing transformer needs. Application: Retrofit projects and new builds with variable power infrastructure. This fixture combines durability, compliance, and practical installation advantages for industrial lighting professionals.
Get a Quick Quote for a Eaton SPS42870EMT1LXC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPS42870EMT1LXC?
Enquire Now
FAQs
Yes. The SPS42870EMT1LXC supports 120-277 VAC operation with 50/60 Hz power in a through-feed configuration. It features 3/4" entry and two hubs to simplify wiring, enabling seamless integration into existing circuits without additional transformers. This design reduces install time and ensures reliable operation across varied electrical systems in hazardous locations.
The fixture carries IP66 ingress protection and is certified for Hazardous/Classified Locations. It is rated for Class I, Division 2 (and related classifications) under NEC/CEC standards, addressing critical safety and compliance requirements in demanding industrial environments.
This luminaire is ideal for hazardous areas such as chemical plants, oil and gas facilities, and other industrial spaces with dust, moisture, or corrosive atmospheres. Its 304 stainless steel housing, clear polycarbonate lens, and emergency battery back-up ballast make it a dependable choice for facilities requiring resilient lighting in challenging conditions.
It meets NEC/CEC standards, carries IP66 protection, and is rated NEMA 4. The hazardous-location rating includes Class I, Division 2, Class II, Division 2, and Class III, ensuring robust compliance for installations in classified locations and tough environments.
The SPS42870EMT1LXC offers long-life operation with lamps included, reducing replacement cycles. The emergency battery back-up ballast enhances safety and minimizes downtime during outages. Stainless steel construction and a durable polycarbonate lens lower lifecycle maintenance costs, delivering a favorable total cost of ownership for facilities with stringent reliability requirements.
