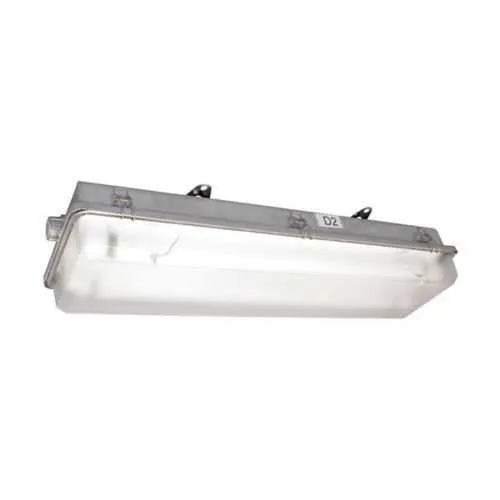

Eaton SPS43170EMT1L Linear Fluorescent Fixture - IP66
Part Number: SPS43170EMT1L
Quick Summary
Eaton SPS43170EMT1L is a hazardous-area linear fluorescent light fixture designed for demanding industrial spaces. When downtime or noncompliant lighting interrupts production, operators struggle with failed inspections and costly repairs. This luminaire qualifies under NEC/CEC standards, Class I, Division 2 hazardous locations, and IP66 protection, with a rugged 304 stainless steel body and NEMA 4 rating for harsh environments. Built for through-feed wiring and 120–277 Vac operation, it delivers reliable 4 ft illumination with a 3-lamp, 32 W configuration and battery-backup ballast for emergency lighting. Lamps are included for quick start-up, and a 277 V maximum capability supports varied installations. This combination delivers durability, code compliance, and operational resilience for critical facilities.
Product Information
Extended Description
SPS43170EMT1L Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent,3/4" entry (2) hubs,4 ft,Matte polycarb lens,T8 bi-pin,304 stainless steel,3-lamp,battery back-up,one lamp,277V max,test switch,lamps included,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture
Catalog Number
SPS43170EMT1L
UPC
662276416109
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
25.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
3-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) hubs
Wattage
32W
Lens material
Matte polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, test switch, lamps included
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Hazardous Area Linear Fluorescent catalog page
IF LBL1370D2 - Pauluhn Intrepid Hazardous Area Linear Fluorescent
Eaton Specification Sheet - SPS43170EMT1L
Feature 1: 4 ft length with a 3-lamp, 32 W configuration delivers consistent, high-quality illumination while minimizing energy use. Business impact: reduced energy costs and extended lamp life translate to lower total cost of ownership. Application: industrial facilities requiring long runs of reliable light in hazardous environments. Feature 2: IP66 ingress protection and a 304 stainless steel build resist dust, moisture, and corrosive atmospheres. Business impact: lower maintenance frequency and downtime due to environmental exposure. Application: chemical plants, refineries, and outdoor-rated operations. Feature 3: Through-feed wiring with 120–277 Vac operation supports flexible electrical integration across diverse plant layouts. Business impact: simplified installation and faster commissioning. Application: retrofits and new builds in mixed-voltage facilities. Feature 4: Emergency battery-backup ballast with test switch and included lamps ensures egress lighting during power loss. Business impact: enhanced safety compliance and minimized outage risk. Application: safety-critical zones in hazardous locations. Feature 5: 52.8 in overall length and 2 hubs with 3/4" entry optimize mounting in constrained spaces while maintaining serviceability. Business impact: reduced installation time and easier maintenance access. Application: long runs in production corridors and washdown areas.
Get a Quick Quote for a Eaton SPS43170EMT1L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton SPS43170EMT1L?
Enquire Now
FAQs
When planning installation, verify through-feed wiring compatibility and the 3/4 inch entry hubs to match conduit configurations. The 52.8 inch length suits long runs, while 2 hubs enable flexible routing. Ensure 120–277 Vac supply and 50/60 Hz service, and confirm Class I, Division 2 compliance for the specific hazardous zone. Use proper seals and anti-corrosion fasteners for 304 stainless steel hardware.
The SPS43170EMT1L delivers 32W with a 4 ft lamp length across a 3-lamp configuration, using T8 bi-pin lamps. It operates on 120–277 Vac at 50/60 Hz and includes an emergency battery-backup ballast with a test switch. Lamping is included, enabling quick startup, and the unit is designed for IP66 protection and rugged environments.
Yes. With IP66 ingress protection and NEMA 4 ratings, the fixture resists dust ingress and heavy moisture exposure. The 304 stainless steel housing further enhances corrosion resistance, making it appropriate for damp, wet, or chemically harsh areas common in hazardous locations like chemical plants and outdoor installations.
This fixture aligns with NEC/CEC standards and carries a Class I, Division 2 rating for hazardous locations, plus IP66 and NEMA 4 ratings. These certifications ensure code compliance, electrical safety, and environmental protection, reducing regulatory risk while supporting dependable operation in hazardous or classified spaces.
The combination of energy-efficient 32 W operation, long service life, and lamps included minimizes replacement and downtime. Emergency back-up ballast improves safety compliance and reduces outage-related risk. Its corrosion-resistant housing and rugged construction lower maintenance costs in harsh environments, delivering a favorable total cost of ownership for hazardous-area lighting projects.
