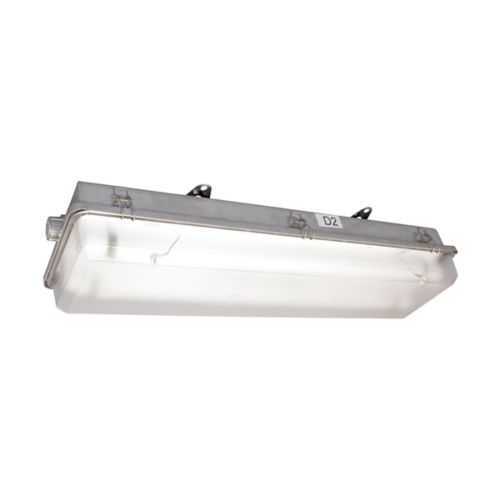

Eaton SPS43571EMT1 SPS linear fluorescent light - IP66

Part Number: SPS43571EMT1
Manufacturer
Eaton
Part number
SPS43571EMT1

Quick Summary

The Eaton SPS43571EMT1 is a hazardous-location linear fluorescent light fixture designed for demanding industrial environments. Ongoing downtime from unreliable illumination in hazardous zones can erode productivity and safety. This unit earns strong code compliance with IP66 ingress protection, NEMA 4 enclosure, and NEC/CEC ratings for Class I, Division 2, Class II, Division 2, and Class III areas, ensuring safe operation under harsh conditions. Its pendant-mount, 4 ft length, and 3-lamp configuration support easy installation in overhead runs, while an emergency battery back-up provides critical light during power loss. With stainless 304 components and a matte polycarbonate lens, it blends durability with low lifecycle costs for industrial lighting applications.

Product Information

Extended Description

SPS43571EMT1 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent,3/4",(2) hubs,4 ft,Matte polycarbonate lens,T5HO mini bi-pin,304 stainless steel,Pendant mount,3-lamp,Emergency battery back-up,one lamp,277V max,test switch,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid SPS linear fluorescent light fixture
Catalog Number
SPS43571EMT1
UPC
662276687370
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
25.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
3-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Pendant
Entry size
3/4"
Entry type
(2) hubs
Wattage
54W
Lens material
Matte polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, test switch
Feature: IP66 ingress protection and a NEMA 4 enclosure guard against dust, water jets, and corrosive environments. Business impact: dramatically reduces maintenance cycles and extends service life in Hazardous/Classified Locations. Application: ideal for washdown-heavy areas in chemical plants, refineries, and offshore facilities where reliable lighting and rugged sealing are essential. Feature: 304 stainless steel construction with a matte polycarbonate lens resists chemical attack and glare. Business impact: lowers lifecycle costs and corrosion-related downtime in coastal and offshore settings. Application: provides durable, consistent illumination across long runs and work areas. Feature: 54W, 3-lamp configuration with T5HO mini bi-pin lamps operating on a 120-277 VAC supply at 50/60 Hz. Business impact: offers energy-efficient lighting and compatibility with common plant power systems, enabling straightforward retrofits. Application: suitable for 4 ft fixture installations along benches, aisles, and overhead grids. Feature: Emergency battery back-up ballast, one lamp, 277V maximum, with a test switch. Business impact: maintains critical lighting during outages, supporting safety drills and safe egress, while reducing downtime. Application: essential for emergency-rated areas and process lines that require uptime guarantees. Feature: Pendant mounting with 3/4" entry and two hubs across a 52.8 in footprint. Business impact: installation flexibility and wiring options shorten setup time and simplify future maintenance. Application: fits standard 4 ft layouts in industrial facilities and hazardous-area installations.

Get a Quick Quote for a Eaton SPS43571EMT1

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton SPS43571EMT1? Enquire Now

FAQs

SPS43571EMT1 supports pendant mounting with a 3/4 inch entry and two hubs, offering versatile wiring options for ceiling or overhead runs. The fixture is designed for easy integration into existing grids and can be readily retrofitted in hazardous-location projects, reducing installation time and risk while maintaining code-compliant performance.
The fixture provides IP66 protection and a NEMA 4 enclosure, with area classifications for Hazardous/Classified Locations (Class I, Division 2; Class II, Division 2; Class III). Its 304 stainless steel construction and matte polycarbonate lens support corrosion resistance and glare control, aligning with NEC/CEC requirements and supporting compliant operation in demanding environments.
SPS43571EMT1 operates on 120-277 VAC at 50/60 Hz and consumes 54 watts. It employs a 3-lamp configuration with T5HO mini bi-pin lamps and a 4 ft form factor, enabling energy-efficient, long-run illumination that fits standard industrial electrical systems and simplifies retrofits.
The fixture includes an emergency battery back-up ballast with one-lamp operation at 277V maximum and a test switch. In power outages, this feature preserves critical lighting for safe egress and continued operations, reducing downtime during emergencies and enhancing worker safety in hazardous areas.
Yes. IP66 ingress protection, NEMA 4 enclosure, and Hazardous/Classified Location ratings, combined with 304 stainless steel and matte polycarbonate lens, make SPS43571EMT1 ideal for washdown-heavy, corrosive, or offshore environments. The pendant design and wiring flexibility support robust, long-term performance with low maintenance in demanding installations.
