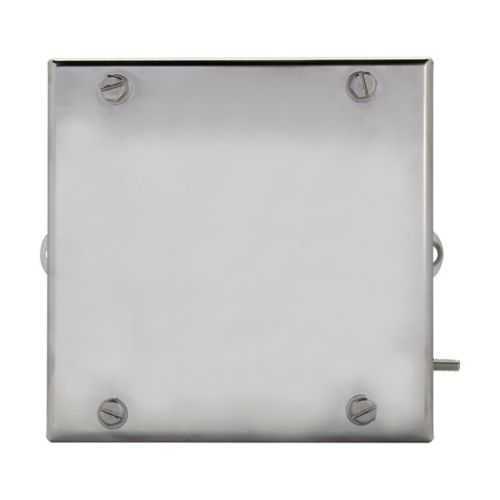

Eaton STBPS151509 STB Enclosure - IP66, Class I, Div 2
Part Number: STBPS151509
Quick Summary
STBPS151509 is an Eaton Crouse-Hinds STB enclosure designed to protect electrical equipment in demanding industrial environments. This compact 15x15x9 inch enclosure delivers robust mechanical protection while keeping critical components accessible for service. Engineers often struggle with reliable protection against dust, water, and chemical exposure without sacrificing ease of maintenance. The STBPS151509 meets IP66 ingress protection and NEC Class I Division 2 hazardous-location ratings, while aligning with IEC/CEC standards for global compliance. By combining corrosion-resistant painted mild steel with a proven mounting footprint, it reduces downtime and replacement costs while supporting safe, compliant panel builds. This enclosure is well-suited for control panels, pump stations, and outdoor installations in hazardous locations.
Product Information
Extended Description
STBPS151509 Eaton: Eaton Crouse-Hinds series STB enclosure, 400A, 15" x 15" x 9" enclosure size, 175 mm horizontal fixing center, Painted mild steel, 690 Vac/Vdc
Product Name
Eaton Crouse-Hinds series STB enclosure
Catalog Number
STBPS151509
EAN
3066227675286
Product Length/Depth
150 mm
Product Height
150 mm
Product Width
90 mm
Product Weight
1.9 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
3S 6 4
Ingress protection (IP) ratings
IP66
Material
Painted mild steel
Enclosure size
15" x 15" x 9"
Crouse-Hinds series Stainless Steel Enclosures Solutions brochure
Crouse-Hinds series STB Stainless Steel or Sheet Steel Enclosures catalog page
Painted mild steel construction combines durability with cost efficiency, giving the STBPS151509 a robust protective shell without the premium price of stainless alternatives. The enclosure supports a compact footprint of 15x15x9 inches and a mounting pattern with 175 mm horizontal fixing centers, which translates to predictable integration with standard panels. For panel builders, this means fewer fabrication steps and more consistent panel depth. IP66 sealing delivers reliable ingress protection against dust and powerful wash-downs, significantly extending service intervals in harsh environments. This translates to lower maintenance costs and less unplanned downtime in manufacturing floors and outdoor installations. The combination of IP66 and a corrosion-resistant paint finish also improves longevity in chemical processing plants. NEC Class I, Division 2 hazardous-location rating, together with IEC/CEC standards, enables safe use in areas with flammable vapors. This expands deployment options for chemical plants, refineries, and offshore facilities where enclosure integrity directly affects equipment reliability. The enclosure's area classification label helps procurement teams document compliance quickly during audits. Rated for 400A with up to 690 Vac/Vdc, the STBPS151509 handles medium-sized power and control circuits within a single enclosure. The 175 mm horizontal fixing center ensures straightforward compatibility with existing frame hardware, while the 150 mm length and 90 mm width fit within standard panel cavities, enabling fast commissioning and simplified cable management. Finished with durable paint, the mild steel enclosure resists corrosion in mixed environments, while its light 1.9 kg weight aids handling during installation and service. The enclosure's rigid construction reduces deformation risks and supports long-term uptime, ensuring predictable lifecycle costs. For customers seeking scalable expansion, the STBPS151509 integrates smoothly with other STB series enclosures.
Get a Quick Quote for a Eaton STBPS151509
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton STBPS151509?
Enquire Now
FAQs
STBPS151509 centers on a 175 mm horizontal fixing center and a compact 15x15x9 inch footprint. It is designed for straightforward mounting to standard panels or frames, with predrilled holes and compatible gland plates. This reduces panel fabrication time and minimizes misalignment during installation, helping installers stay on schedule and maintain consistent enclosure spacing across machine neighborhoods.
Key electrical specs include a 400A rating and voltage tolerance up to 690 Vac/Vdc, enabling safe distribution of mid-size control circuits. IP66 protection guards against dust and wash-down exposure, while painted mild steel provides durable mechanical protection. Together these factors support reliable operation, lower maintenance costs, and extended service life in demanding industrial environments.
Yes. The STBPS151509 is approved for hazardous/classified locations with NEC Class I Division 2 ratings and area-classification support. Its IP66 seal helps resist moisture and dust in challenging environments, making it suitable for chemical plants, refineries, and offshore facilities where safety and compliance are critical. Its compatibility with IEC/CEC standards further ensures global applicability and easier regulatory audits.
Standards coverage includes IEC and NEC/CEC compliance, IP66 ingress protection, and NEC Class I Division 2 hazardous location rating. The catalog page and brochure materials support procurement traceability, while the painted mild steel construction meets typical industrial enclosure expectations for durability and cost effectiveness.
Durability comes from a painted mild steel shell offering corrosion resistance in challenging environments, while the enclosure's compact weight of 1.9 kg simplifies handling during service. The 690 Vac/Vdc rating and IP66 protection reduce the frequency of component replacements and downtime, delivering lower lifecycle costs and improved uptime for critical control panels.
