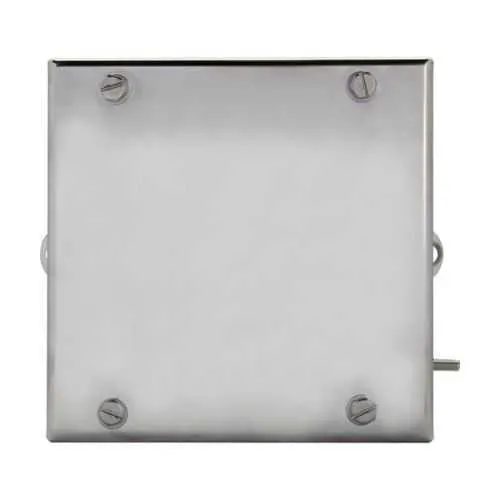

Eaton STBS13838222 Enclosure - IP66, 4X, 316L
Part Number: STBS13838222
Quick Summary
Eaton STBS13838222 enclosure provides robust stainless steel protection for hazardous-location electrical assemblies in harsh industrial environments. Owners and engineers face corrosion, ingress, and downtime when protection is insufficient or noncompliant. This enclosure achieves IP66 and 4X protection, supports IECEx/ATEX and NEC/CEC hazardous-area ratings, and is rated Class I, Division 2. With a 38 x 38 x 22 inch footprint and 316L stainless construction, it enables clean, compliant installations while reducing maintenance costs. Ideal for stainless steel enclosures in chemical, oil & gas, and power distribution applications, it helps achieve faster commissioning and longer service life. This combination of rugged build and certification reduces total cost of ownership while supporting safe, compliant operation.
Product Information
Extended Description
STBS13838222 Eaton: Eaton Crouse-Hinds series STB enclosure, 400A, 38" x 38" x 22" enclosure size, 435 mm horizontal fixing center, 250 mm vertical fixing center, 316L stainless steel, 2 gland plates, 690 Vac/Vdc
Product Name
Eaton Crouse-Hinds series STB enclosure
Catalog Number
STBS13838222
EAN
4251958137706
Product Length/Depth
380 mm
Product Height
380 mm
Product Width
220 mm
Product Weight
8.48 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
4X 6
Ingress protection (IP) ratings
IP66
Material
316L stainless steel
Enclosure size
38" x 38" x 22"
Crouse-Hinds series Stainless Steel Enclosures Solutions brochure
Crouse-Hinds series STB Stainless Steel or Sheet Steel Enclosures catalog page
316L stainless steel construction provides excellent corrosion resistance in demanding environments, extending service life and reducing maintenance costs for critical power and control systems. This directly translates to fewer replacements and lower total cost of ownership in chemical plants, offshore platforms, and food & beverage facilities. IP66 and NEMA 4X protection safeguard internal components from dust, water jets, and washdowns, significantly reducing downtime and enabling reliable outdoor or harsh-environment installations. In hazardous locations, IECEx/ATEX and NEC/CEC compliance together with Class I, Division 2 rating streamline approvals, accelerating project timelines and cross-border deployments. The 38 x 38 x 22 inch footprint, 435 mm horizontal and 250 mm vertical fixing centers, plus two gland plates, support flexible routing and easy field upgrades. The 690 Vac/Vdc rating and 400 A capacity deliver robust power handling for motor starters, controllers, and drive systems. Availability of 316L stainless steel, corrosion resistance, and a rugged enclosure design helps operators minimize maintenance cycles and extend asset life, even in coastal or chemical processing environments. The enclosure is compatible with standard Eaton Crouse-Hinds accessories, enabling seamless integration with existing electrical infrastructure and simplifying retrofit projects.
Get a Quick Quote for a Eaton STBS13838222
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton STBS13838222?
Enquire Now
FAQs
Begin with the 38 x 38 x 22 inch footprint and verify mounting centers of 435 mm horizontally and 250 mm vertically. Use the two gland plates to manage entry for cables, ensuring seals are intact. Confirm 316L stainless steel construction, IP66/NEMA 4X protection, and hazardous-location ratings (IECEx/ATEX, NEC/CEC Class I Division 2) before wiring. Follow manufacturer guidelines for enclosure grounding and internal component mounting to maintain compliance.
This enclosure supports up to 400 A and 690 Vac/Vdc, making it suitable for high-power control and protection. It carries IP66 and NEMA 4X ratings, providing robust ingress protection. It is certified for Hazardous/Classified Locations with IECEx/ATEX and NEC/CEC standards, including Class I, Division 2. Together, these specs enable safe operation in challenging environments while simplifying regulatory approvals.
Yes. The 316L stainless steel construction and IP66/NEMA 4X protection are ideal for chemical processing, offshore platforms, and washdown environments. Its hazardous-location certifications (IECEx/ATEX, NEC/CEC) and Class I Division 2 rating support safe operation in hazardous areas, while the 400 A current rating accommodates demanding power distribution needs common in these industries.
The STBS13838222 enclosure carries IECEx/ATEX and NEC/CEC standards for hazardous locations, with a Class I, Division 2 rating. It also offers IP66 ingress protection and NEMA 4X protection, aligning with global safety and reliability requirements. Material is 316L stainless steel, ensuring chemical and corrosion resistance across installations in various regions.
The combination of corrosion resistance, high ingress protection, and hazardous-location certifications reduces maintenance cycles, extends asset life, and minimizes downtime. By standardizing on a robust 316L stainless enclosure with flexible gland entry and reliable power handling, projects see faster commissioning, reduced rework, and lower long-term operating costs across harsh environments.
