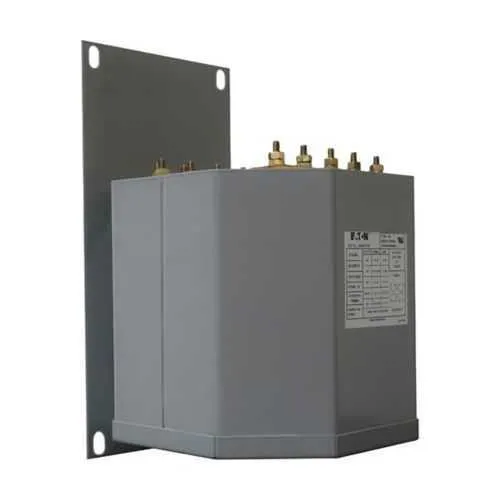

Eaton STI0.315(400/230) Industrial Control Transformer - CSA
Part Number: STI0.315(400/230)
Quick Summary
Eaton STI0.315(400/230) is an industrial control transformer that powers control circuits in machinery and automation panels. For engineers, selecting a compact, reliable transformer that matches a 400 V primary to a 230 V secondary while fitting tight panel spaces is a common challenge. This unit is CSA compliant and designed around IEC standards, with Eaton providing documentation to support regulatory verification. The 315 VA rating, single‑phase operation, and robust STN design deliver consistent performance, reduce wiring complexity, and improve lifecycle cost. With dependable build quality and straightforward installation, it supports faster procurement and easier maintenance for OEMs and service teams alike.
Product Information
Extended Description
STI0.315(400/230) Eaton: Eaton, IEC, industrial control transformer, STI0.315(400/230)
Product Name
Eaton Type STN industrial control transformer
Catalog Number
STI0.315(400/230)
EAN
4015080466390
Product Length/Depth
3.5 in
Product Height
4.5 in
Product Width
4.8 in
Product Weight
10.29 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CSA
Certifications
Contact Manufacturer
Design
STN
Primary voltage
400 V
Volt ampere rating
315 VA
Phase
Single-phase
Secondary voltage
230 V
315 VA rating and 400 V to 230 V conversion deliver precise control circuit power with a single device. Business impact: reduces the number of transformers in a panel and minimizes wiring complexity, cutting installation time and material cost. Application: ideal for control panels and machine automation where a reliable low-voltage supply is needed. The unit’s compact footprint—3.5 in length, 4.8 in width, 4.5 in height—and weight of 10.29 lb—facilitates easier panel fit and reduced enclosure space requirements, translating to faster installation and reduced cabinet size. STN design contributes to improved thermal performance and long-term reliability, minimizing maintenance intervals in demanding environments. CSA compliance and IEC-based design provide regulatory assurance, while documented data supports safe commissioning and traceability. A one-year warranty under Eaton policy 25-000 further mitigates risk, supporting lower total cost of ownership over the product lifecycle. Compatibility with standard mounting patterns and wiring practices simplifies retrofits and OEM panel builds.
Get a Quick Quote for a Eaton STI0.315(400/230)
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton STI0.315(400/230)?
Enquire Now
FAQs
The STI0.315(400/230) follows the STN class design with a compact footprint of 3.5 x 4.8 x 4.5 in and a weight of 10.29 lb, suitable for standard panel mounting and common wiring practices. It provides a 400 V primary and 230 V secondary in a single‑phase configuration, making it straightforward to integrate with typical control panels and PLC inputs. For specific mounting accessories or enclosure compatibility, consult the Eaton specification sheet (STI0:315(400/230)) for recommended hardware.
STI0.315(400/230) is a 315 VA single‑phase transformer with a 400 V primary and 230 V secondary. These ratings translate to dependable control‑circuit power for panels and automation electronics, enabling reliable PLC and relay inputs without overloading the device. When sizing, consider in‑rush characteristics, ambient temperature, and enclosure ventilation to preserve performance within the 315 VA limit.
Yes. With 315 VA capacity, 400 V to 230 V conversion, a compact STN design, and IEC‑based construction, STI0.315(400/230) is well suited for automation panels, machine controls, and PLC‑powered logic circuits. Its CSA compliance and documented data support safe integration in industrial environments, while its footprint and weight simplify panel layout and retrofits.
The STI0.315(400/230) carries CSA compliance and is designed around IEC standards, with Eaton providing the necessary documentation to support regulatory verification. The product page lists CSA as the compliance reference, while CAP and installation documentation are available from Eaton’s specification resources to facilitate audit readiness and quality control in manufacturing environments.
Eaton provides a warranty under policy 25-000: one year from the date of installation or eighteen months from shipment, whichever occurs first. This coverage reduces downtime risk and service costs for ongoing operations. Access to Eaton technical support and engineering documentation helps with proactive maintenance planning, facilitating faster issue resolution and improved return on investment for panel builds and OEM programs.
