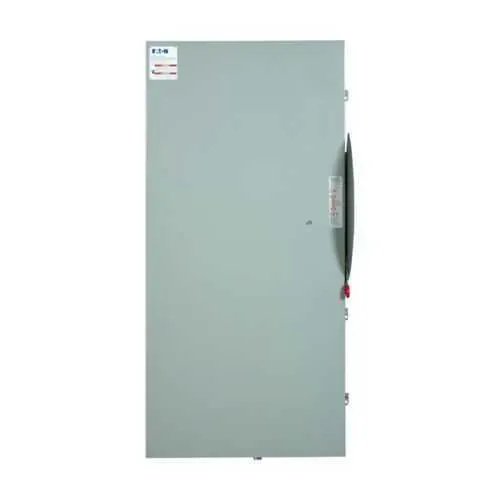

Eaton STS367NP61 Shunt Trip Safety Switch - NEMA 4
Part Number: STS367NP61
Quick Summary
Eaton shunt trip safety switch provides rapid circuit disconnection for industrial control panels. In demanding environments, mis-trips risk unplanned downtime and safety incidents. UL Listed, cUL Certified, and a NEMA 4 enclosure rating ensure compliance and rugged, reliable performance. The STS367NP61 supports 800 A, 600 Vac / 250 Vdc with a 24 Vdc coil, enabling straightforward integration with existing MCCs and control circuits. Its three-pole design with 1 NO 1 NC contacts simplifies wiring, fault handling, and ongoing maintenance. Backed by Eaton's warranty and service policy, it protects capital equipment and operator safety over the long term.
Product Information
Extended Description
STS367NP61 Eaton: Eaton shunt trip safety switch, 800 A, Three-pole, 600 Vac, 250 Vdc, Alarm switch, 24 Vdc, 1 NO 1 NC, NEMA 4, Painted steel, Fusible, 600 V
Product Name
Eaton shunt trip safety switch
Catalog Number
STS367NP61
UPC
786685829913
Product Length/Depth
12.43 in
Product Height
71.72 in
Product Width
29.54 in
Product Weight
170 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
cUL Certified UL Listed
Enclosure
NEMA 4
Enclosure material
Painted steel
Number Of Poles
Three-pole
Type
Shunt trip safety switch
Amperage Rating
800A
Coil voltage
24 Vdc
Protection
Fusible
Voltage rating
600 Vac, 250 Vdc
Contact configuration
1 NO 1 NC
Double Up on Safety
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - STS367NP61
Selling Policy 25-000 - Distribution and Control Products and Services
Feature 800 A amperage rating → Business Impact: Handles high inrush and continuous loads without nuisance trips, reducing unplanned downtime and operator risk. Application: Motor control centers and large distribution panels benefit from reliable protection without compromising performance. Feature 24 Vdc coil → Business Impact: Facilitates seamless PLC or control-system integration, enabling precise trip signaling and faster response times. Application: Control circuits in automated lines and safety interlocks gain predictable behavior. Feature 600 Vac / 250 Vdc ratings → Business Impact: Versatile across AC and DC control circuits, enabling unified protection schemes across equipment. Application: Industrial plants with mixed voltage domains simplify hardware stocking. Feature NEMA 4 enclosure → Business Impact: Superior ingress and weather resistance lowers maintenance cycles and extends service life. Application: Outdoor switchgear and damp environments. Feature Three-pole with 1 NO 1 NC → Business Impact: Flexible interlock and fault-signal configurations ease wiring complexity and protective coordination. Application: Safety circuits in MCCs and control panels. Feature Fusible protection → Business Impact: Enables controlled shutdowns and selective protection against faults. Application: Industrial protection schemes in high-current applications. Feature Warranty and service policy → Business Impact: Reduces total cost of ownership through predictable support and post-sale assistance. Application: Plant-wide deployments requiring long-term reliability.
