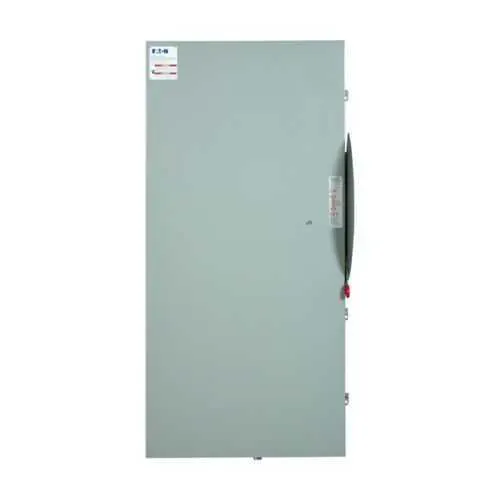

Eaton STS367UP6 Shunt Trip Safety Switch - UL Listed & NEMA4
Part Number: STS367UP6
Quick Summary
The Eaton shunt trip safety switch STS367UP6 rapidly disconnects power in motor control centers and switchgear. Engineers struggle with unplanned outages, equipment damage, and the challenge of coordinating trip signals across complex control networks. This device carries UL Listed and cUL certifications and a rugged NEMA 4 painted steel enclosure, making it suitable for harsh environments. With an 800 A rating, 600 Vac / 250 Vdc capabilities, and a 24 Vdc coil, it provides reliable protection while reducing nuisance trips. Its robust construction and straightforward installation streamline maintenance programs and help ensure regulatory compliance in industrial facilities. Designed for long service life, it reduces total cost of ownership.
Product Information
Extended Description
STS367UP6 Eaton: Eaton shunt trip safety switch, 800 A, Three-pole, 600 Vac, 250 Vdc, 24 Vdc, NEMA 4, Painted steel, Non-Fusible, 600 V
Product Name
Eaton shunt trip safety switch
Catalog Number
STS367UP6
UPC
786685830179
Product Length/Depth
12.43 in
Product Height
71.72 in
Product Width
29.54 in
Product Weight
158 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
cUL Certified UL Listed
Enclosure
NEMA 4
Enclosure material
Painted steel
Number Of Poles
Three-pole
Type
Shunt trip safety switch
Amperage Rating
800A
Coil voltage
24 Vdc
Protection
Non-Fusible
Voltage rating
600 Vac, 250 Vdc
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
ARMS Enclosed Circuit Breaker
Eaton Specification Sheet - STS367UP6
Feature: 800A amperage rating with three-pole configuration. Business Impact: Enables safe disconnection of high-current circuits, reducing arc flash risk and equipment damage in demanding drive systems. Application: Motor control centers and three-pole feeders in plant-wide protection schemes. Feature: 24 Vdc coil and dual voltage ratings (600 Vac, 250 Vdc). Business Impact: Fast, reliable actuation with compatibility to standard control circuits, lowering integration time and wiring errors. Application: Control panel interlocks and safety interlocks within industrial automation. Feature: NEMA 4 painted steel enclosure. Business Impact: Superior ingress protection against dust and water, extending life in harsh environments and reducing field maintenance. Application: Outdoor installations and wet / dirty factory floors. Feature: Non-Fusible protection mode. Business Impact: simplifies repairs and maintenance by avoiding fuse replacements after a trip, while enabling coordination with upstream protection. Application: Factory automation MCCs and switchgear blocks. Feature: UL Listed and cUL certified. Business Impact: Streamlines procurement, audit readiness, and regulatory compliance for safety-critical installations. Application: Electrical protection projects requiring recognized safety certifications. Feature: Compact, robust mechanical design with defined dimensions and weight. Business Impact: Predictable mounting in standard electrical spaces and easier retrofit in existing panels. Application: Retrofit projects and new builds in industrial facilities.
Get a Quick Quote for a Eaton STS367UP6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton STS367UP6?
Enquire Now
FAQs
STS367UP6 is designed for standard three-pole protection with a NEMA 4 painted steel enclosure, ideal for indoor and outdoor plant environments. Its dimensions support retrofit in common electrical spaces, and its weight supports secure, robust mounting in control panels and MCCs. Ensure mounting provisions match the enclosure footprint and allow for proper cable entry and coil access.
The device uses a 24 Vdc coil to produce a magnetic trip when a control signal is applied. This allows a remote trip command from safety interlocks or a plant-wide safety system, providing fast, reliable disconnection of the 800 A circuit at 600 Vac / 250 Vdc ratings while remaining compatible with common control circuits.
Yes. STS367UP6 is rated for 600 Vac and 250 Vdc, supporting non-fusible operation in three-pole configurations. This makes it suitable for high-energy motor control centers and switchgear, enabling safe, code-compliant shutdown during fault or safety-trip scenarios.
The STS367UP6 carries UL Listed and cUL certifications, signaling compliance with safety and performance standards for electrical protection devices. These certifications simplify procurement for regulated facilities, support audit readiness, and help ensure reliable operation in industrial environments where safety and compliance are paramount.
The non-fusible design reduces fuse-related maintenance, while UL/cUL certification and NEMA 4 enclosure improve reliability and uptime. Although the unit is heavy, its robust construction lowers field service frequency and replacement risk. Over a typical lifecycle, this translates to improved safety, fewer unplanned outages, and predictable maintenance budgeting.
