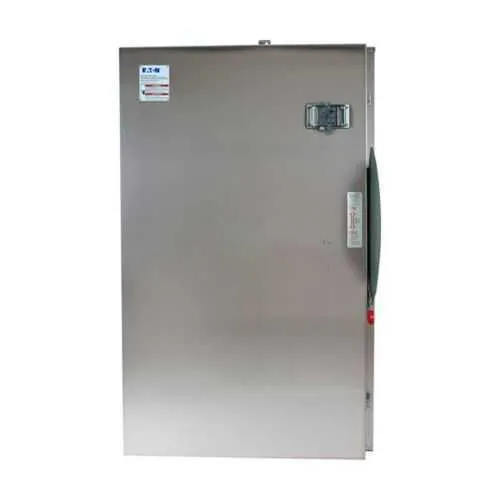

Eaton STS368FW32 Shunt Trip Safety Switch - UL Listed
Part Number: STS368FW32
Quick Summary
Shunt Trip Safety Switch is a protective device that rapidly interrupts power in critical electrical panels, enabling safer, faster fault response in industrial environments. Engineers face pressure to deliver reliable trip performance under high-current demand and in challenging sites, where marginal components can trigger costly downtime. UL Listed and cUL Certified markings, along with a NEMA 4X enclosure, ensure compliance and protection against moisture, dust, and washdown in tough environments. For design teams, STS368FW32 offers rugged, code-compliant protection that supports high-current switching and fast isolation, delivering lower maintenance costs and reduced risk to personnel. This combination helps shorten downtime, improve safety, and streamline integration with existing protection schemes in industrial facilities.
Product Information
Extended Description
STS368FW32 Eaton: Eaton Heavy Duty Shunt Trip Safety Switch, 1200 A, 600 Vac, 250 Vdc, Three pole , NEMA 4X, Fusible
Product Name
Eaton Heavy Duty Shunt Trip Safety Switch
Catalog Number
STS368FW32
UPC
786689314248
Product Length/Depth
23.15 in
Product Height
72.5 in
Product Width
47.23 in
Product Weight
405 lb
Certifications
UL Listed cUL Certified
Enclosure
NEMA 4X
Number Of Poles
Three-pole
Amperage Rating
1200A
Coil voltage
120 Vac
Protection
Fusible
Voltage rating
600 Vac, 250 Vdc
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - STS368FW32
The 1200 A amperage rating provides a high interrupting capacity, enabling reliable fault isolation for heavy-duty power distribution while reducing the risk of equipment damage and unscheduled downtime. The 120 Vac control coil is compatible with standard industrial control circuits, allowing quick remote actuation without custom interfaces and improving control-system consistency. The three-pole, fusible design ensures all conductors are safely disconnected during a trip, delivering predictable coordination with upstream protective devices and simpler troubleshooting in motor control centers. The NEMA 4X enclosure delivers rugged protection against moisture, dust, and washdown, enabling outdoor and harsh-environment installations with minimal enclosure maintenance. UL Listed and cUL Certified markings support compliant procurement and cross-border deployment, aligning with corporate safety programs and audit requirements. Catalog number STS368FW32 and the integrated protection scheme simplify ordering and integration with existing Eaton protection devices, streamlining project timelines and maintenance planning for industrial protection devices.
Get a Quick Quote for a Eaton STS368FW32
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton STS368FW32?
Enquire Now
FAQs
STS368FW32 is designed for standard 3-pole assemblies in a NEMA 4X enclosure, suitable for damp or outdoor locations. Confirm the mounting footprint and required clearances from the catalog, wire the 120 Vac control coil to your control circuit, and use appropriately rated conductors for 1200 A. Follow UL and cUL wiring guidelines to maintain enclosure integrity and protection.
The 1200 A amperage rating provides a high interrupting capacity suitable for heavy-duty power distribution, while the 120 Vac coil voltage supports integration with standard control circuits. Proper coordination with upstream devices ensures selective tripping, reducing downtime and arc-flash exposure while maintaining compliance with relevant codes and standards.
Yes. The NEMA 4X enclosure is designed to withstand moisture, dust, and washdown, making it suitable for process plants, outdoor installations, and demanding factory settings. UL Listed and cUL Certified markings further confirm safety compliance across North America. The fusible protection option adds an additional layer of protection against short circuits, enhancing reliability in challenging environments.
UL Listed and cUL Certified markings indicate the device meets recognized safety standards and is approved for use in North American facilities. These certifications support risk reduction, simplify procurement for regulated industries, and align with safety-management programs. When paired with a rugged NEMA 4X enclosure, they reinforce compliance during harsh operating conditions.
Maintenance focuses on control coil wiring integrity and enclosure seals, with minimal ongoing intervention required for safe operation. The fusible design reduces arc flash risk and helps minimize downtime costs. Over the asset lifecycle, reliable protection from STS368FW32 improves safety, lowers maintenance expenses, and delivers faster fault isolation, contributing to a favorable return on investment.
