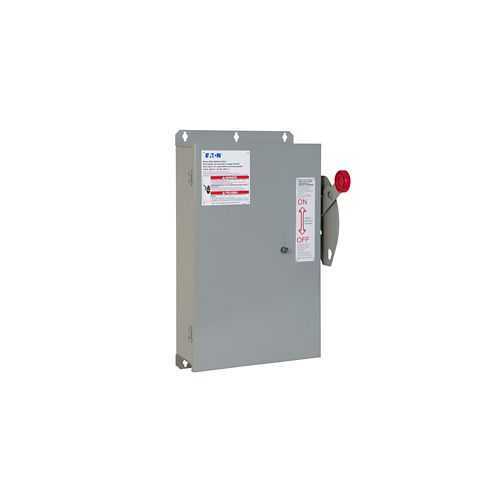

Eaton STS463UD3 Shunt Trip Safety Switch - UL Listed
Part Number: STS463UD3
Quick Summary
Eaton STS463UD3 shunt trip safety switch enables rapid emergency shutdown in industrial control panels. Operators and engineers often struggle with safe, coordinated protection actions across multi-pole systems during startups and fault events. UL Listed and cUL Certified construction, plus NEMA 12 / NEMA 3R enclosure ratings, help ensure reliability in harsh environments. With a 100 A rating, 120 VAC coil, and broad voltage flexibility (600 VAC, 250 VDC), this device supports safe, compliant electrical protection with minimal downtime and maintenance. Designed for installations in industrial automation and electrical protection & circuit control contexts, it delivers consistent safety performance across systems.
Product Information
Extended Description
STS463UD3 Eaton: Eaton shunt trip safety switch, 100 A, Four-pole, 600 Vac, 250 Vdc, 120 Vac, NEMA 12, NEMA 3R, Non-Fusible, 600 V
Product Name
Eaton shunt trip safety switch
Catalog Number
STS463UD3
UPC
786685830292
Product Length/Depth
11.51 in
Product Height
24.95 in
Product Width
19.22 in
Product Weight
45 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
cUL Certified UL Listed
Enclosure
NEMA 12, NEMA 3R
Number Of Poles
Four-pole
Type
Shunt trip safety switch
Amperage Rating
100A
Coil voltage
120 Vac
Protection
Non-Fusible
Voltage rating
600 Vac, 250 Vdc
