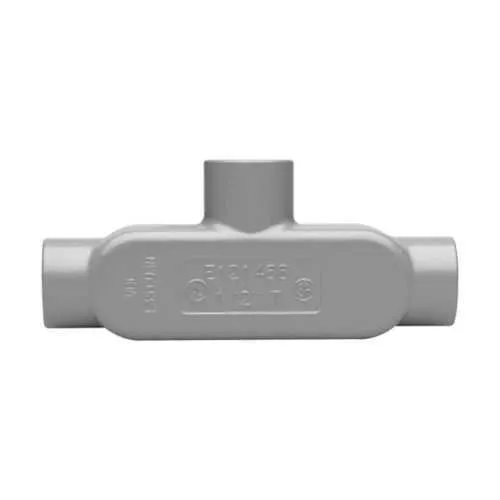

Eaton T105 Condulet Series 5 outlet body - Copper-free
Part Number: T105
Quick Summary
The Eaton T105 Condulet Series 5 conduit outlet body provides rugged, durable termination for rigid/IMC conduits in industrial installations. Installers frequently wrestle with heavy fittings, corrosion risk, and the challenge of ensuring a perfect fit with aluminum systems. It meets NEC/CEC standards for ordinary locations and carries Canadian certifications, enabling compliant deployments across North America. The 16 inch length and overall geometry support reliable mounting in constrained spaces while maintaining serviceability. Copper-free aluminum keeps weight down and reduces galvanic concerns, while Series 5 compatibility supports fast, cost-effective installations in wiring and connectivity projects.
Product Information
Extended Description
T105 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, T shape, 4"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
T105
UPC
784564140500
Product Length/Depth
16 in
Product Height
5.4 in
Product Width
5.42 in
Product Weight
10 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
T
Conduit type
Rigid/IMC
Trade size
4"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Condulet Series 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - T105
Copper-free aluminum construction reduces overall weight and corrosion risk, delivering easier handling during installation and lower long-term maintenance costs. Feature → Business Impact → Application: The material choice minimizes worker fatigue on overhead runs and reduces fastening torque requirements, improving on-site productivity for 4 inch rigid/IMC conduit terminations in factory floors and process lines. Feature → Business Impact → Application: The T shape and Series 5 design enable straightforward integration with existing Condulet accessories, accelerating configuration changes and scalable terminations for evolving wiring layouts. Feature → Business Impact → Application: With a 16 in length, 5.4 in height, 5.42 in width, and a 10 lb weight, installers gain predictable space planning, faster handling, and simpler routing in constrained panel enclosures. Feature → Business Impact → Application: NEC/CEC compliance and ordinary-location certification streamline approvals, reducing project delays and risk in cross-border deployments for Wiring & Connectivity systems. Feature → Business Impact → Application: Broad documentation availability, including brochures and datasheets, supports quicker spec validation and procurement, cutting lead times and ensuring consistent installation practices across sites.
Get a Quick Quote for a Eaton T105
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T105?
Enquire Now
FAQs
The T105 is designed for Series 5 conduit systems using 4 inch rigid/IMC conduits in ordinary locations. It measures 16 inches in length with a 5.4 inch height and 5.42 inch width, weighing about 10 pounds, which informs layout planning, shipping, and on-site handling for factory floors and process lines.
Copper-free aluminum reduces weight and galvanic corrosion risk, improving ease of handling during installation and extending service life in non-hazardous locations. This material choice also supports easier field modifications and lower life-cycle costs in Wiring & Connectivity projects.
Yes, the T105 aligns with NEC/CEC standards for ordinary locations and carries Canadian certifications, enabling compliant deployments across North America. This reduces compliance risk and speeds project approvals when sourcing Series 5 conduit outlet bodies.
The T105 is 16 inches long, 5.4 inches high, and 5.42 inches wide, with a weight of 10 pounds. These dimensions help in enclosure planning, cable routing, and estimating shipping or palletization for large-scale wiring projects.
Downloads include the Crouse-Hinds Series 5 brochure, Series 5 catalog page, Canadian certification pages, and the Eaton specification sheet for T105. These documents support design reviews, procurement, and regulatory audits across industrial facilities.
