Eaton T200M Condulet Form 5 Conduit Outlet - NEC/CEC
Part Number: T200M
Quick Summary
The Eaton T200M Condulet Form 5 conduit outlet body is a rugged 2" trade size fitting designed to terminate electrical runs in industrial enclosures. It helps engineers resolve common pain points around fitment, sealing, and compatibility when upgrading aging Form 5 assemblies. This product carries NEC/CEC compliance and UL certification for both the US and Canada, and it is rated for ordinary/non-hazardous locations, supporting cross-border procurement. By combining a durable malleable iron body with precise Form 5 geometry, it delivers consistent field performance and long service life. In practical terms, it enables faster installs, reduces field modifications, and improves overall panel reliability while integrating smoothly with Eaton Crouse-Hinds Form 5 accessories and standard conduit systems.
Product Information
Extended Description

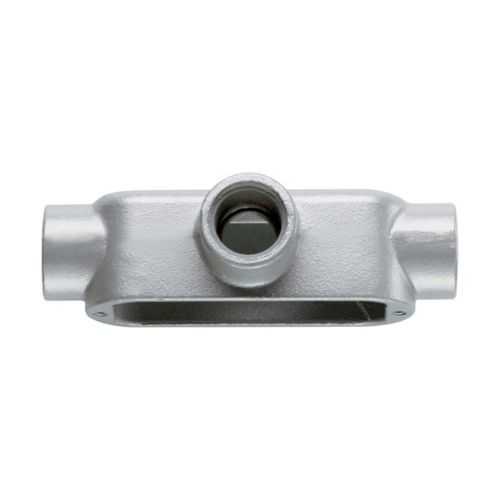

T200M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, T shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
T200M
UPC
782274756288
Product Length/Depth
11.5 in
Product Height
4.12 in
Product Width
3.12 in
Product Weight
6.63 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
T
Trade size
2"
Material
Malleable iron
Eaton Crouse-Hinds T200M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - T200M
Feature: Form 5 Config and 2" trade size for Condulet fittings. Business Impact: Streamlines routing and termination in switchgear and control panels, reducing field rewiring time and installation errors. Application: Ideal for panel builders upgrading Form 5 conduit bodies in machine automation environments. Feature: Malleable iron construction. Business Impact: Delivers durable enclosure protection against impact and wear, extending the service life in demanding factories. Application: Suitable for rugged industrial wiring in proximity to moving equipment and heavy use areas. Feature: Precise Form 5 geometry with T shape. Business Impact: Ensures consistent alignment with standard enclosures and fittings, lowering rework rates during assembly. Application: Used in wiring installations where reliable seal and alignment are critical. Feature: NEC/CEC compliance and UL certification. Business Impact: Supports regulatory compliance and cross-border procurement, reducing risk and audit findings. Application: Deploy in ordinary/non-hazardous locations across US and Canadian facilities. Feature: Measured dimensions and weight (11.5 in length, 4.12 in height, 3.12 in width, 6.63 lb). Business Impact: Predictable fit in control panels and cabinets, simplifies BOMs and installation planning. Application: Design-ready for standard industrial enclosures and form factor planning.
Get a Quick Quote for a Eaton T200M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T200M?
Enquire Now
FAQs
The T200M supports a 2 inch trade size Form 5 conduit. It is a T-shaped malleable iron body designed specifically for 2" conduit outlets, part of the Eaton Crouse-Hinds Form 5 family, providing secure terminations and reliable enclosure integrity for standard industrial fittings.
The T200M is NEC/CEC compliant and UL certified for both the United States and Canada. It is rated for Ordinary/Non-Hazardous locations, ensuring regulatory compliance across typical industrial environments and facilitating cross-border procurement.
Its Form 5, T-shaped design and 2" trade size simplify routing inside cabinets and equipment. The malleable iron construction provides durability, while the measured dimensions—11.5 in length, 4.12 in height, and 3.12 in width—support precise mounting in standard enclosures, reducing field modifications and downtime.
Documentation is available from Eaton, including the T200M specification sheet, a 3D drawing package, and UL certification references. The product’s dimensions and weight (11.5 in length, 4.12 in height, 3.12 in width, 6.63 lb) aid in precise panel design and BOM creation.
Ideal for industrial control panels, machine wiring, and equipment enclosures in ordinary locations. The Form 5 conduit outlet supports reliable terminations for 2" conduits, with durable malleable iron and a form factor designed to withstand routine industrial dust and vibration.
