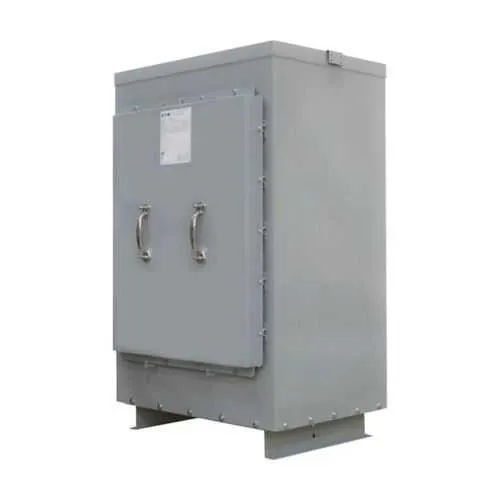

Eaton T20P11S50N12 Ventilated Transformer - UL Listed
Part Number: T20P11S50N12
Quick Summary
The Eaton T20P11S50N12 ventilated transformer provides reliable power distribution for industrial control panels. Engineers often face cramped enclosures and heat buildup that throttle performance and increase downtime. UL Listed safety certification and a NEMA 12 enclosure guard against dust and moisture, while aluminum windings reduce weight and improve heat dissipation under load. This 50 kVA single-phase unit supports 480 V input with 120/240 V outputs, delivering dependable power for automation cabinets and machine tools. The compact design helps streamline installations and lowers total cost of ownership in demanding industrial environments.
Product Information
Extended Description
T20P11S50N12 Eaton: Eaton NEMA 12 General Purpose Distribution Transformer 50 kVA TENV NEMA 12 XFMR 1PH 240X480-120/240, 150C rise, Aluminum Windings
Product Name
Eaton General purpose ventilated transformer
Catalog Number
T20P11S50N12
UPC
786680226540
Product Length/Depth
1.1 in
Product Height
1.1 in
Product Width
1.1 in
Product Weight
1.1 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Not Applicable
Certifications
UL Listed
Coil material
Aluminum
Type
Ventilated transformer
Primary voltage
480 V
Temperature rise
150 °C rise
Ventilated cooling design improves heat dissipation under load, enabling stable performance in tight panels and reducing enclosure fan requirements. This translates to lower maintenance costs and higher uptime in continuous processing lines. A 50 kVA single-phase rating provides robust power for automation controllers, servo drives, and lighting circuits, allowing you to consolidate power supplies and simplify cabinet layouts. The NEMA 12 enclosure protects internal windings from dust and moisture, delivering long-term reliability in manufacturing floors and outdoor-adjacent facilities. Aluminum windings reduce transformer weight and improve heat transfer, making installation and service easier while contributing to lower cooling energy needs. The compact footprint fits compact switchgear and control cabinets, freeing panel space for other critical components. UL Listed certification and Eaton’s warranty policy reinforce procurement confidence and risk management for capital projects.
Get a Quick Quote for a Eaton T20P11S50N12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T20P11S50N12?
Enquire Now
FAQs
This single-phase transformer is designed for 480 V input with 120/240 V outputs, suitable for installation in standard industrial control panels. Its compact 1.1 in x 1.1 in x 1.1 in footprint simplifies mounting in tight spaces, and the NEMA 12 enclosure provides dust and moisture protection. Ensure proper clearance for ventilation and follow the included Eaton specification guidelines to maintain UL compliance and heat dissipation.
Key specs include a 50 kVA rating, single-phase operation, primary voltage of 480 V, secondary voltage of 120/240 V, 150 °C rise, aluminum windings, and a NEMA 12 enclosure. UL Listed certification confirms safety compliance. These characteristics support reliable power for automation cabinets, CNC interfaces, and distribution within industrial environments.
Yes. The 50 kVA single-phase transformer with 480 V input and 120/240 V outputs is well-suited for automation cabinets, servo controllers, and power distribution in manufacturing lines. Its ventilated design and aluminum windings help manage heat in dense panel layouts, while the NEMA 12 enclosure protects against typical shop-floor contaminants, contributing to dependable operation in dynamic automation environments.
The transformer is UL Listed, which verifies safety compliance and quality for electrical components used in industrial settings. The NEMA 12 enclosure provides environmental protection suitable for dusty or damp environments. These certifications streamline compliance during audits, reduce risk in supplier qualification, and support faster approval in regulated projects.
Eaton offers a warranty of one year from installation or eighteen months from shipment, whichever occurs first. The robust, ventilated design with aluminum windings minimizes maintenance needs, lowers cooling requirements, and reduces downtime. For procurement, this translates into predictable maintenance budgets and a quicker return on investment when powering critical automation and distribution tasks.
