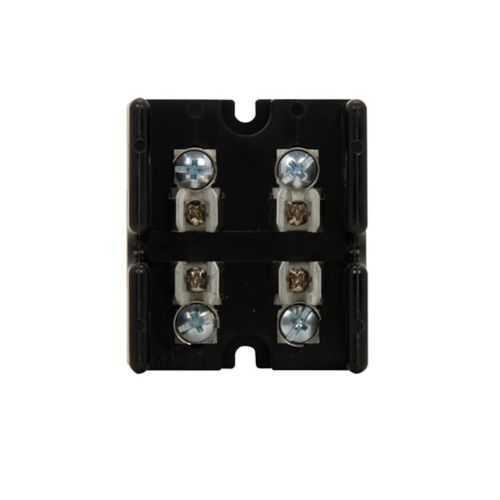

Eaton T30030-2SR Class T fuse block - UL Recognized
Part Number: T30030-2SR
Quick Summary
The Eaton Bussmann Class T modular fuse block provides reliable overcurrent protection for control panels and power distribution enclosures. Engineers frequently confront limited space and wiring complexity in modern equipment; this two-pole, screw-terminal unit delivers robust protection without sacrificing wiring ease or accessibility. It carries UL Recognized and CSA Certified marks and RoHS compliance, ensuring safety and regulatory alignment across markets. Designed for fast installation and dependable operation, it supports common field wiring practices while minimizing panel footprint. With compatibility for #18-10 AWG copper conductors and a compact 3 x 3 inch footprint, this fuse block helps reduce panel size, maintenance time, and overall system cost.
Product Information
Extended Description
T30030-2SR Eaton: Eaton Bussmann series Class T modular fuse block, 0-30 A, Two-pole, Screw, 200 kAIC, 300 Vac/dc, #18-10 AWG Cu
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T30030-2SR
UPC
051712147910
Product Length/Depth
3 in
Product Height
1 in
Product Width
3 in
Product Weight
0.306 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
0-30A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
300 Vac/dc
Number of Poles
Two-pole
Wire size
#18-10 AWG Cu
Class
Class T
Connection
Screw
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - T30030-2SR
Feature: 0-30 A amperage rating paired with a 200 kAIC interrupt rating. Business Impact: Protects circuits from overloads while tolerating high fault currents without nuisance trips, improving uptime. Application: Control panels in machines and process equipment where reliable, fast-acting protection is critical. Feature: Two-pole, screw-terminal design. Business Impact: Simplifies field wiring, reduces installation time, and improves connection reliability even in tight spaces. Application: Machines and panels with limited clearance and standard copper conductors. Feature: 3 in length and 3 in width footprint with 1 in height. Business Impact: Saves panel space and enables more compact layouts in crowded electrical cabinets. Application: Small to mid-size control panels and power distribution enclosures. Feature: Wire size compatibility #18-10 AWG Cu. Business Impact: Broad wiring compatibility reduces accessory costs and simplifies procurement. Application: Typical control-circuit wiring in industrial environments. Feature: RoHS compliant with UL Recognized and CSA Certified status. Business Impact: Ensures regulatory compliance and safety across regions, simplifying qualification and audits. Application: Manufacturing environments demanding strict material and safety standards. Feature: Voltage rating 300 Vac/dc. Business Impact: Supports both AC and DC circuits, enabling versatile protection across mixed systems. Application: Mixed-voltage control and drive systems in industrial settings.
Get a Quick Quote for a Eaton T30030-2SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T30030-2SR?
Enquire Now
FAQs
Use the screw terminals to secure #18-10 AWG Cu conductors, ensuring clean, parallel wiring with proper strain relief. The two-pole design fits compact panels; confirm panel space is at least 3 in by 3 in with a 1 in height allowance and verify a secure torque on terminal screws per general practice.
The unit is rated 0-30 A with a 200 kAIC interrupt rating and a 200 kA short-circuit rating, suitable for up to 300 Vac/dc. It is designed for AC and DC circuits in industrial equipment and control panels.
Yes, the fuse block is RoHS compliant and carries UL Recognized and CSA Certified markings, reflecting conformity to common safety and environmental standards for electrical protection devices.
The device accepts #18-10 AWG copper conductors with screw connections, enabling straightforward field wiring and compatibility with standard control cabling used in industrial installations.
Ideal for compact control panels, motor control centers, and small power-distribution enclosures where reliable overcurrent protection is required, and where space, wiring simplicity, and compliance are priorities.
