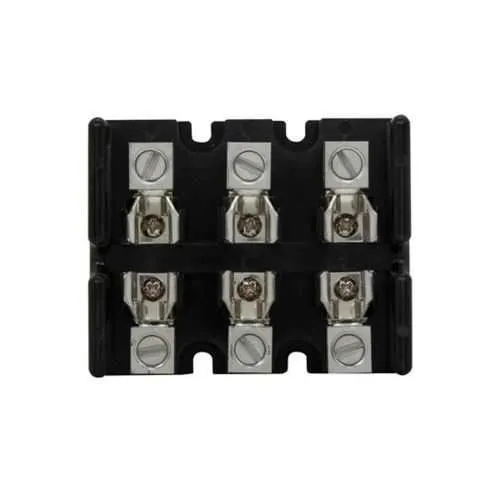

Eaton T30060-2CR Class T Fuse Block - UL Recognized
Part Number: T30060-2CR
Quick Summary
Eaton T30060-2CR Class T fuse block provides reliable overcurrent protection for control circuits in industrial machinery. When panel space is tight and legacy protection blocks struggle to meet current standards, having a compact, compatible solution matters. UL Recognized and CSA Certified, along with RoHS compliance, help meet global regulatory and environmental requirements. The modular fuse block design supports quick integration in new and retrofit applications, delivering safer, code-compliant protection for control panels. Engineers especially appreciate the box-lug connection and glass polyester body for reliable field service, translating to reduced downtime, simpler maintenance, and lower total cost of ownership in demanding industrial environments.
Product Information
Extended Description
T30060-2CR Eaton: Eaton Bussmann series Class T modular fuse block, CR, 300 Vac/Vdc or less control systems, 31-60 A, Two-pole, Box lug, 200 kAIC, Glass polyester, 300 Vac/dc, #2 AWG Cu/Al
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T30060-2CR
UPC
051712147958
Product Length/Depth
2.41 in
Product Height
2.75 in
Product Width
1.63 in
Product Weight
0.35 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
31-60A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
300 Vac/dc
Material
Glass polyester
Number of Poles
Two-pole
Wire size
#2 AWG Cu/Al
Class
Class T
Connection
Box lug
Special features
CR
Feature → Business Impact → Application: Amperage rating of 31–60 A provides precise protection for mid-range control circuits, reducing nuisance trips and extending component life in motors, contactors, and PLC power rails. This translates to improved machine uptime and lower replacement costs in automation projects. Application: industrial control panels in manufacturing lines and packaging equipment. Feature → Business Impact → Application: 200 kAIC interrupt rating and 200 kA short-circuit rating offer robust fault protection against high-energy faults, decreasing bus damage and cascading failures. Application: CNC machines and robotic cells where fault energy can be high. Feature → Business Impact → Application: 300 Vac/dc voltage rating, two-pole design, and box-lug connection enable straightforward, dependable wiring with #2 AWG Cu/Al conductors, accelerating installation while improving wiring integrity in panel assemblies. Application: power distribution blocks in machine controls and HVAC systems. Feature → Business Impact → Application: Glass polyester housing provides durable insulation and environmental resilience, reducing maintenance cycles and enhancing reliability in harsh industrial environments. Application: panel housings with temperature and vibration exposure. Feature → Business Impact → Application: RoHS compliance and UL Recognized/CSA Certified status ensure regulatory adherence and supply-chain confidence, supporting global deployments and audits. Application: multinational manufacturing operations seeking consistent protection standards across sites.
Get a Quick Quote for a Eaton T30060-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T30060-2CR?
Enquire Now
FAQs
The T30060-2CR is designed for two-pole protection in industrial control panels. It accepts #2 AWG Cu/Al conductors with box lug terminals, and its 31–60 A rating suits medium-current circuits. Plan for a compact footprint in space-constrained panels and ensure wiring routes are sized for the lug connections to maximize reliability and ease of maintenance.
Key specs include a voltage rating of 300 Vac/dc, amperage range of 31–60 A, interrupt rating of 200 kAIC, and short-circuit rating of 200 kA. It is a two-pole block with a glass polyester body and supports #2 AWG copper or aluminum conductors, making it suitable for robust control applications.
Yes. With a voltage rating of 300 Vac/dc and a robust 200 kAIC interrupt rating, the T30060-2CR is suitable for DC control circuits used in automation equipment, PLC power rails, and motor control assemblies, offering reliable protection against high-energy DC faults.
The unit is UL Recognized and CSA Certified, with RoHS compliance. These certifications support regulatory acceptance in North America and Europe, enabling safer procurement and smoother audits for equipment deployed worldwide.
The fuse block’s compact Class T design, box-lug wiring, and RoHS/UL/CSA certifications reduce installation time and wiring errors, leading to quicker commissioning and lower maintenance frequency. Its robust fault protection minimizes downtime from electrical faults, contributing to a lower total cost of ownership in industrial environments.
