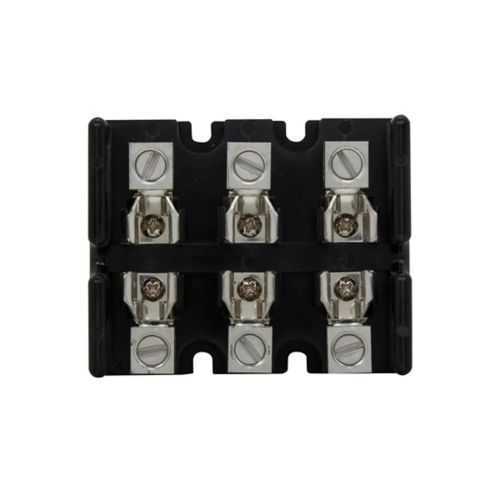

Eaton T30060-3CR Class T modular fuse block - UL Recognized
Part Number: T30060-3CR
Quick Summary
The Eaton Bussmann series Class T modular fuse block protects control circuits in industrial panels. For engineers wrestling with cramped control cabinets, this compact unit simplifies wiring and reduces maintenance with box lug terminals and a robust glass-polyester housing. It carries UL Recognized, CSA Certified, and RoHS compliance, delivering traceable safety and environmental assurance. With a 31–60 A rating, 200 kAIC interrupt capability, and 300 Vac/dc voltage tolerance, the block supports reliable, code-compliant operation in demanding environments. Easy integration with #2 AWG Cu/Al conductors and a three-pole configuration helps streamline panel design and procurement without sacrificing protection.
Product Information
Extended Description
T30060-3CR Eaton: Eaton Bussmann series Class T modular fuse block, CR, 300 Vac/Vdc or less control systems, 31-60 A, Three-pole, Box lug, 200 kAIC, Glass polyester, #2 AWG Cu/Al
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T30060-3CR
UPC
051712147965
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.48 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
31-60A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
300 Vac/dc
Material
Glass polyester
Number of Poles
Three-pole
Wire size
#2 AWG Cu/Al
Class
Class T
Connection
Box lug
Special features
CR
Feature: Amperage range 31–60 A provides precise protection for mid-range control loads. Business Impact: By selecting the correct trip point, you reduce nuisance trips, extend contact life, and improve overall line efficiency. Application: Ideal for three-pole control circuits in industrial automation panels where motor starters, relays, and logic power share the same enclosure. Feature: 200 kAIC interrupt rating delivers high fault-current tolerance, safeguarding equipment and wiring from catastrophic damage. Business Impact: Plant downtime is minimized through robust fault isolation, enabling faster maintenance and safer fault clearance. Application: Suitable for high-energy machines and conveyors common in packaging, material handling, and machine-building environments. Feature: 300 Vac/dc voltage rating supports both AC and DC control networks, simplifying panel design. Business Impact: Engineers can standardize components across mixed-voltage systems, reducing SKU counts and procurement complexity. Application: Control panels, PLC cabinets, and safety circuits in automation lines. Feature: Glass polyester housing offers durable, flame-resistant construction with stable performance in industrial temperatures. Business Impact: Long service life and reduced replacement costs in harsh environments. Application: Electrical protection blocks mounted inside enclosures exposed to vibration, dust, and occasional moisture. Feature: Box lug connections accept #2 AWG Cu/Al cables for quick, secure terminations; Class T provides consistent performance with easy installation. Compliance and certification alignment (UL Recognized, CSA Certified, RoHS) support regulatory adherence and traceability, while a compact three-pole footprint fits modern control cabinets, aiding procurement and inventory management.
Get a Quick Quote for a Eaton T30060-3CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T30060-3CR?
Enquire Now
FAQs
For installation, ensure a three-pole enclosure with adequate mounting clearance. Use box lug terminations compatible with #2 AWG Cu/Al conductors and follow torque specifications to secure the conductors. The unit fits standard control panels and benefits from RoHS-compliant materials. Position away from excessive heat or moisture and comply with UL CSA labeling for traceability.
The 300 Vac/dc rating supports both AC and DC control networks, reducing the need for multiple protection devices. The 200 kAIC interrupt rating provides high fault-current tolerance, protecting wiring and components during short circuits. Together, they enable safer, more reliable operation in demanding industrial environments and simplify panel design.
Yes. The T30060-3CR carries UL Recognized and CSA Certified markings and complies with RoHS standards. This combination ensures regulatory compliance, safer sourcing for repairs and replacements, and traceability within manufacturer-specified data sheets and installation manuals.
Industries with automated machinery, packaging lines, material handling systems, and process control panels benefit most. The three-pole design supports synchronized protection across multiple circuits, while the box lug termination and #2 AWG capability simplify wiring in cabinets with mixed-voltage controls and high-current logic power.
Plan for periodic inspection of conductor connections and enclosure cleanliness to prevent corrosion and overheating. The UL CSA RoHS-compliant design supports long-term reliability, and the 200 kAIC rating helps minimize replacement frequency after fault events. If a fuse block is replaced, ensure compatible Class T units maintain the same amperage range and voltage rating.
