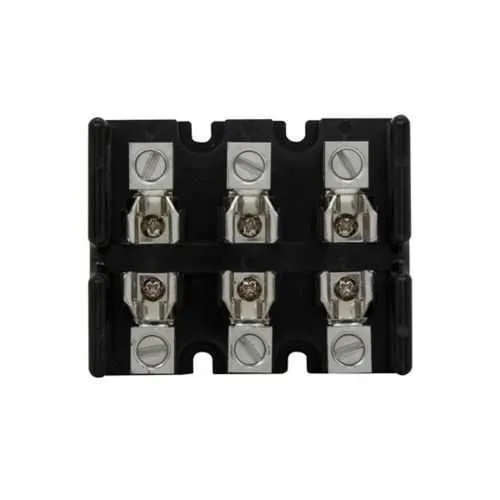

Eaton T30060-3SR Class T modular fuse block - UL Recognized, CSA Certified
Part Number: T30060-3SR
Quick Summary
Eaton T30060-3SR Class T modular fuse block protects industrial control panels with reliable overcurrent protection. This solution is ideal for mid-range loads in harsh environments where space is at a premium and wiring must stay tidy. The device carries UL Recognized and CSA Certified listings and RoHS compliance, signaling regulatory readiness and supplier reliability. With a three-pole, screw-terminal design rated up to 60 A and a 200 kAIC interrupt rating, it delivers robust fault protection without complicating panel layouts. The combination of compact form, RoHS-compliant materials, and proven Bussmann Class T performance supports lower total cost of ownership and easier compliance across global facilities.
Product Information
Extended Description
T30060-3SR Eaton: Eaton Bussmann series Class T modular fuse block, 31-60 A, Three-pole, Screw, 200 kAIC, Glass polyester, 300 Vac/dc, #18-10 AWG Cu
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T30060-3SR
UPC
051712149808
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.566 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
31-60A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
300 Vac/dc
Material
Glass polyester
Number of Poles
Three-pole
Wire size
#18-10 AWG Cu
Class
Class T
Connection
Screw
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - T30060-3SR
Feature: Amperage range 31–60 A is matched to typical fuse-block protections in control panels. Business Impact: this range supports selective protection against overloads while minimizing nuisance trips, helping maintenance planning and energy efficiency. Application: suitable for mid-range loads in industrial machinery and automation networks. Feature: High interrupt rating of 200 kAIC delivers fault tolerance for heavy-duty circuits. Business Impact: reduces the risk of cascading faults and equipment damage during short circuits, lowering downtime costs. Application: ideal for panel boards and motor control centers where fault current can spike. Feature: 300 Vac/dc voltage rating ensures compatibility with both AC and DC systems. Business Impact: enables versatile deployment across mixed-voltage applications, simplifying procurement and inventory. Application: used in mixed-voltage control circuits in manufacturing lines. Feature: Glass polyester housing and three-pole screw-terminal construction. Business Impact: robust insulation and secure terminations withstand vibration and harsh environments, improving reliability. Application: suitable for compact control panels in process and automation environments. Feature: Wire size #18-10 AWG Cu with screw connection. Business Impact: standard copper wiring compatibility reduces fabrication time and inventory complexity while ensuring solid electrical contact. Application: common in industrial panel wiring and field installations. Certification and compliance: RoHS compliant with UL Recognized and CSA Certified markings. Business Impact: supports regulatory compliance, sustainability goals, and supplier qualification across global facilities. Application: ideal for multinational installations and OEM assemblies requiring formal certifications.
Get a Quick Quote for a Eaton T30060-3SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T30060-3SR?
Enquire Now
FAQs
Install the T30060-3SR using its screw-terminal connections for three-pole protection. Ensure #18-10 AWG copper conductors are properly terminated with clean, secure screws and that the assembly meets panel clearance and insulation requirements. Verify the unit is mounted in a suitable position to maintain airflow and reduce vibration. Always follow Eaton installation guidelines and local electrical codes.
The T30060-3SR is rated for 31–60 A, with a 200 kAIC interrupt rating and a 200 kA short-circuit rating. It operates at 300 Vac/dc. These ratings support high fault tolerance in motor control centers and panel boards while maintaining safe, reliable protection for both AC and DC circuits.
Yes, the T30060-3SR is RoHS compliant. It carries UL Recognized and CSA Certified markings, indicating compliance with major North American safety standards. This helps with regulatory approvals, supplier qualification, and sustainability goals across global deployments.
This three-pole, screw-terminal fuse block is commonly used in industrial control panels, panel boards, and motor control centers where space-efficient, reliable overcurrent protection is required. Its compact form, 31–60 A range, and high fault tolerance make it suitable for automation networks and equipment protection in manufacturing and process environments.
The fuse block accepts #18-10 AWG copper conductors with a secure screw termination. It supports both AC and DC applications at up to 300 V, facilitating mixed-voltage configurations. Ensure correct conductor sizing, proper torque on screws, and adherence to wiring methods to maintain protection integrity and ease of future maintenance.
