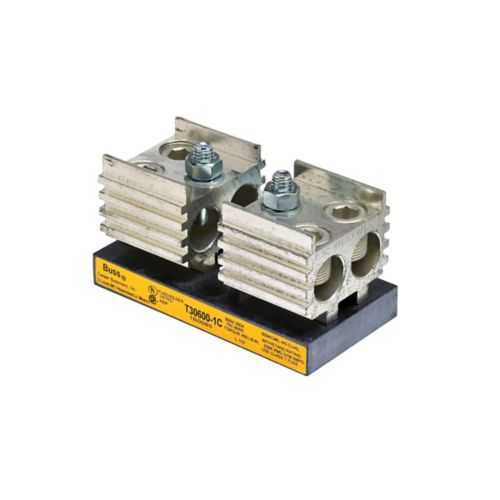

Eaton T30600-1C Modular Fuse Block - RoHS Compliant
Part Number: T30600-1C
Quick Summary
The Eaton T30600-1C modular fuse block is designed to deliver Class T protection for high-current power distribution in industrial panels. This solution supports 401–600 A circuit protection with a 200 kAIC interrupt rating, helping prevent nuisance outages and equipment damage from short circuits. When upgrading legacy fusing, you’ll appreciate the robust glass polyester construction and box lug terminations that streamline installation in tight control cabinets. RoHS compliance, UL Recognized, and CSA Certified markings ensure conformity across regulated markets, reducing compliance risk. In practice, integrating this fuse block can lower downtime and simplify maintenance while accommodating Cu/Al wiring from #2/0 to 600 kcmil. The result is safer, scalable protection for demanding manufacturing, processing, and energy-distribution environments.
Product Information
Extended Description
T30600-1C Eaton: Eaton Bussmann series Class T modular fuse block, 401-600 A, Box lug, 200 kAIC, Glass polyester, 300 Vac/dc, #2/0-600 kcmil Cu/Al
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T30600-1C
UPC
051712149778
Product Length/Depth
5.75 in
Product Height
3.44 in
Product Width
3 in
Product Weight
2.25 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Recognized CSA Certified
Amperage Rating
401-600A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
300 Vac/dc
Material
Glass polyester
Wire size
#2/0-600 kcmil Cu/Al
Class
Class T
Connection
Box lug
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - T30600-1C
Feature: Amperage rating of 401–600 A → Impact: Delivers reliable overcurrent protection for large feeders, reducing nuisance trips and equipment damage → Application: Panel feeders in MCCs and industrial drives. Feature: 200 kAIC interrupt rating and 200 kA short-circuit rating → Impact: High fault-current resilience supports safer operation and faster fault clearance → Application: Critical in panelboards and switchgear exposed to heavy startup currents. Feature: 300 Vac/dc voltage rating with Cu/Al wire size support from #2/0 to 600 kcmil → Impact: Versatile wiring compatibility lowers procurement effort and installation time → Application: Industrial controls, machine panels, and power distribution blocks. Feature: Glass polyester housing with box lug terminations → Impact: Durable, heat-resistant construction simplifies termination and improves long-term reliability → Application: Enclosed control cabinets and environments with vibration and temperature variation. Feature: RoHS compliance, UL Recognized, and CSA Certified → Impact: Regulatory compliance across global markets reduces certification risk → Application: Global manufacturing facilities and projects with strict sourcing requirements. Feature: Compact Class T architecture and space-efficient design → Impact: Saves panel real estate and eases retrofits without compromising protection → Application: Space-constrained electrical rooms and modernizing legacy systems.
Get a Quick Quote for a Eaton T30600-1C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T30600-1C?
Enquire Now
FAQs
Yes. The T30600-1C supports wire sizes from #2/0 up to 600 kcmil Cu/Al and uses box lug terminations, simplifying field wiring and ensuring secure, vibration-resistant connections in heavy-duty panels.
The unit offers a 200 kAIC interrupt rating and a 200 kA short-circuit rating, providing robust protection against high fault currents in demanding electrical distributions.
The T30600-1C is RoHS Compliant and UL Recognized, with CSA Certification noted by the manufacturer, supporting regulatory compliance across global markets.
Best for motor control centers, panelboards, and switchgear in industrial settings where reliable 401–600 A protection and space-efficient, box-lug wiring are advantageous.
Its durable glass polyester body, straightforward box-lug wiring, and RoHS/UL/CSA compliance reduce maintenance complexity and certification risk, delivering predictable uptime and lower lifecycle costs in modernized or new installations.
