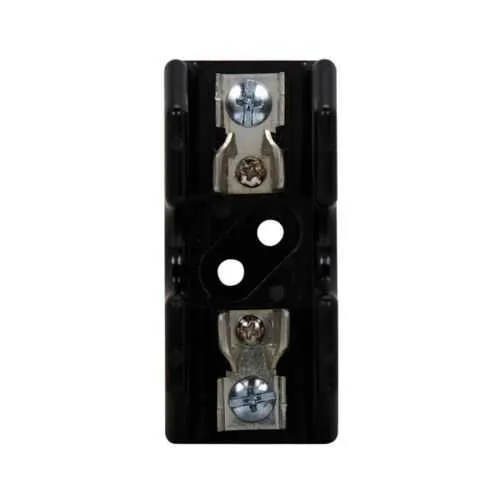

Eaton T60030-1SR Modular Fuse Block - UL Listed
Part Number: T60030-1SR
Quick Summary
The Eaton Bussmann Class T modular fuse block provides compact overcurrent protection for control panels and equipment. Engineers often struggle with fitting reliable protection in tight panel spaces while meeting demanding 600 V ratings. This module delivers a small footprint (3 in x 1.5 in x 1 in) with screw terminals for quick, vibration-resistant connections. It supports 0-30 A fuses with a 200 kAIC interrupt rating and 200 kA short-circuit rating, suitable for high-energy circuits. Compliant with RoHS and CE marking, plus UL Listed and CSA Certified, it meets global safety standards. By aligning with Bussmann series fuses and standard conductor sizes (#18-10 AWG Cu), it streamlines procurement, inventory management, and field replacements, delivering consistent performance across industrial applications.
Product Information
Extended Description
T60030-1SR Eaton: Eaton Bussmann series Class T modular fuse block, 0-30 A, Single-pole, Screw, 200 kAIC, Glass polyester, 600 Vac/dc, #18-10 AWG Cu
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60030-1SR
UPC
051712148061
Product Length/Depth
3 in
Product Height
1 in
Product Width
1.5 in
Product Weight
0.181 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Glass polyester
Number of Poles
Single-pole
Wire size
#18-10 AWG Cu
Class
Class T
Connection
Screw
T60030-1SR~BUSS CLASS T FUSEBLOCK
T60030-1SR~BUSS CLASS T FUSEBLOCK
Bussmann series Fuseology
Eaton Specification Sheet - T60030-1SR
Feature: Class T modular fuse block delivers targeted overcurrent protection with a compact footprint. Business Impact: Saves panel space and reduces installation time, enabling faster commissioning in tight control enclosures. Application: Ideal for control panels and small equipment racks in manufacturing lines. Feature: 0-30 A amperage rating with 200 kAIC interrupt capability. Business Impact: Provides reliable short-circuit protection for medium-power circuits, minimizing downtime and costly fuse changes. Application: Protective layer for control circuits and drive feeds in automation projects. Feature: 600 Vac / 600 Vdc voltage rating. Business Impact: Supports multi-rail or dual-voltage machines without needing separate protection devices, lowering BOM complexity. Application: Industrial equipment and process lines requiring versatile voltage protection. Feature: Glass polyester housing with screw connection. Business Impact: Durable under vibration and thermal cycling while offering a secure, reuse-friendly wiring method. Application: Harsh manufacturing environments and elevated vibration settings. Feature: Single-pole configuration with #18-10 AWG Cu wire compatibility. Business Impact: Simplifies wiring harness design and stock management, reducing assembly time and error risk. Application: Wiring feeders in compact control panels and motor control centers. Feature: Certifications and Compliance (UL Listed, CSA Certified, RoHS Compliant, CE Marked). Business Impact: Helps meet global regulatory requirements, enabling cross-market deployments and audit readiness. Application: Regulated industries such as automotive, energy, and process industries seeking supplier confidence and traceability.
Get a Quick Quote for a Eaton T60030-1SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60030-1SR?
Enquire Now
FAQs
The T60030-1SR uses a screw-terminal connection and supports #18-10 AWG Cu conductors. Its compact 3 in x 1.5 in footprint fits tight control panels, reducing enclosure size. Plan for a single-pole fuse block layout with proper clearance, and verify compatibility with Bussmann series fuses to ensure proper protective coordination and quick replacements in the field.
Expect 0-30 A protection with a 200 kAIC interrupt rating and 200 kA short-circuit rating, suitable for high-energy circuits. The device is rated for 600 Vac and 600 Vdc, enabling flexible use across dual-voltage drives and control circuits. This combination supports reliable fault clearing while maintaining system continuity during routine operations.
Yes. The fuse block is designed for #18-10 AWG Cu wiring and uses screw connections for secure, vibration-resistant terminations. This compatibility streamlines harness design and stock planning, enabling quick field replacements without rewiring complexities and ensuring robust mechanical and electrical integrity in industrial environments.
The T60030-1SR carries UL Listed and CSA Certified marks, along with RoHS compliance and CE marking. These certifications support regulatory adherence in North America and Europe, facilitate supplier qualification audits, and simplify cross-border procurement for automotive, energy, and process industries.
The compact form factor and screw-terminal design reduce installation time and wiring errors, while UL/CSA certification and RoHS compliance ease regulatory reviews. With a 0-30 A rating and high interrupt capabilities, the fuse block delivers reliable protection, minimizes unscheduled downtime, and lowers maintenance costs through straightforward field replacements and standardized Bussmann-series compatibility.
