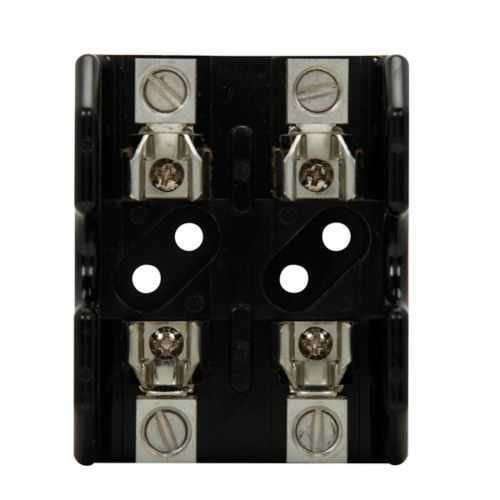

Eaton T60030-2CR Class T modular fuse block - UL Listed
Part Number: T60030-2CR
Quick Summary
The Eaton T60030-2CR Class T modular fuse block provides compact, reliable circuit protection for control panels and industrial machinery. Facing crowded enclosures and limited fault tolerance, engineers need a protector that installs quickly without compromising safety. It carries RoHS compliance and CE marking, along with UL Listed and CSA Certified ratings, supporting worldwide approvals. With a 0-30 A range, 200 kAIC interrupt rating, and a robust glass polyester body, it combines durability with straightforward wiring. Two-pole, box-lug connections for #2 AWG Cu/Al simplify field installation and future maintenance, reducing downtime and total cost of ownership.
Product Information
Extended Description
T60030-2CR Eaton: Eaton Bussmann series Class T modular fuse block, CR, 600 Vac/Vdc or less control systems, 0-30 A, Two-pole, Class T, Box lug, 200 kAIC, Glass polyester, #2 AWG Cu/Al
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60030-2CR
UPC
051712148078
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.325 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Glass polyester
Number of Poles
Two-pole
Wire size
#2 AWG Cu/Al
Class
Class T
Connection
Box lug
Special features
CR
0-30 A amperage rating translates to tailored protection for low-to-medium current control circuits, reducing nuisance trips while safeguarding valuable equipment. This targeted protection drives uptime and predictable performance in automated machines and panel assemblies. The 200 kAIC interrupt rating provides high fault-current tolerance, minimizing arc energy and collateral damage in demanding industrial environments. End users benefit from safer startups and faster fault isolation, enabling quicker maintenance and reduced repair costs. The voltage rating of 600 Vac/600 Vdc supports dual-voltage control systems in mixed AC/DC setups, simplifying designs and reducing part counts. In practice, technicians can deploy this fuse block across mixed-control panels with confidence, knowing one device covers both AC and DC control rails. The two-pole configuration, box-lug terminals, and #2 AWG Cu/Al wiring enable robust, code-compliant wiring with straightforward torque requirements, improving installation quality and consistency. Glass polyester housing delivers durable insulation and resistance to heat and vibration, extending service life in harsh industrial settings. Certification to RoHS, CE, UL Listed, and CSA Certified standards reduces regulatory risk and streamlines procurement for global projects. The CR feature signals a specialized protection profile for critical loads, supporting selective coordination and easier diagnostics in complex panels.
Get a Quick Quote for a Eaton T60030-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60030-2CR?
Enquire Now
FAQs
To install the T60030-2CR, mount the two-pole fuse block in the enclosure and terminate conductors using the box lug connections. Use #2 AWG Cu/Al wire within the rated range and secure with the appropriate torque to maintain a solid, vibration-resistant connection. Verify that the panel bus or feeder circuits align with the device’s voltage rating of 600 Vac/Vdc and that the application falls within the 0-30 A protection window. This approach minimizes wiring errors and ensures compliant, repeatable installations in machine controls.
Key specifications include an amperage rating of 0-30A, a 200 kAIC interrupt rating, and a voltage rating of 600 Vac or 600 Vdc. The fuse block is a two-pole Class T device with a glass polyester body and box-lug terminals designed for #2 AWG Cu/Al conductors. These characteristics support reliable protection for low-to-medium current control circuits while maintaining high fault-current tolerance in industrial environments.
Yes. The T60030-2CR is designed for 600 Vdc control systems and 600 Vac, making it suitable for mixed AC/DC control panels. Its 0-30A range and 200 kAIC interrupt rating provide robust protection for machine control circuits, while the two-pole design ensures complete circuit protection. This makes it a practical choice for modern industrial machines requiring compact, compliant protection in tight panel layouts.
The device is RoHS Compliant and CE Marked, with UL Listed and CSA Certified certifications. These marks support global deployments, simplify procurement across regions, and help ensure regulatory compliance for panel builders and OEMs working in diverse markets. Always verify current certification status with the manufacturer or datasheet for the latest approvals.
The rugged Class T design, glass polyester body, and box-lug wiring provide durable, vibration-resistant protection that reduces unexpected outages. The 0-30A rating aligns with predictable protection for common control loads, while the high 200 kAIC interrupt capacity minimizes fault damage. Coupled with straightforward installation and reliable certifications, this fuse block lowers maintenance effort, shortens downtime during servicing, and lowers total cost of ownership over the system lifecycle.
