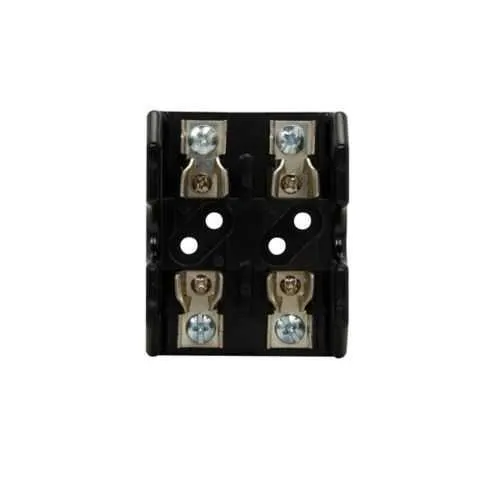

Eaton T60030-2SR Class T Modular Fuse Block - UL Listed
Part Number: T60030-2SR
Quick Summary
Eaton Bussmann Class T modular fuse block protects control circuits in industrial equipment with fast, reliable overcurrent protection. This compact two‑pole unit covers 0–30 A, 600 Vac or 600 Vdc systems, delivering robust interrupt ratings for demanding environments. Many engineers struggle to balance protection, space, and installation time in control panels; this model addresses that by combining a screw connection with a glass‑polyester body for durable operation. The device carries UL Listed and CSA Certified marks, plus RoHS compliance and CE marking, supporting global deployment and regulatory alignment. From panel builders to maintenance teams, it enables faster wiring, easier sourcing, and predictable protection across mixed voltages while reducing downtime and total cost of ownership.
Product Information
Extended Description
T60030-2SR Eaton: Eaton Bussmann series Class T modular fuse block, 600 Vac/Vdc or less control systems, 0-30 A, Two-pole, Class T, Screw, 200 kAIC, Glass polyester, 600 Vac/dc, #10 AWG Cu
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60030-2SR
UPC
051712148085
Product Length/Depth
3 in
Product Height
1 in
Product Width
3 in
Product Weight
0.311 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Glass polyester
Number of Poles
Two-pole
Wire size
#10 AWG Cu
Class
Class T
Connection
Screw
T60030-2SR~BUSS FUSEBLOCK CLASS T
T60030-2SR~BUSS FUSEBLOCK CLASS T
Bussmann series Fuseology
Eaton Specification Sheet - T60030-2SR
Feature → Business Impact → Application: Wide electrical range: 0–30 A with 600 Vac/600 Vdc rating provides flexible protection for mixed control circuits, minimizing the need for multiple devices and simplifying panel design. This translates to reduced component count and faster commissioning in packaging lines and conveyors. Feature → Business Impact → Application: High interrupt rating of 200 kAIC ensures fault events are contained near the source, protecting downstream equipment and reducing damage to sensitive drives. Use in machine controls and auxiliary power feeds to achieve safer, more resilient panels. Feature → Business Impact → Application: Two-pole, screw-terminal construction in a glass‑polyester body delivers durable, vibration‑resistant connections suitable for harsh industrial environments. Ideal for retrofits and new builds where reliability and ease of maintenance matter. Feature → Business Impact → Application: Global compliance with UL Listed, CSA Certified, RoHS, and CE marks simplifies cross-border sourcing and regulatory adherence, lowering project risk and accelerating international deployments in automotive, packaging, and processing facilities. Feature → Business Impact → Application: Compact footprint (3 in x 3 in x 1 in) and light weight (0.311 lb) support denser control panels, enabling scalable protection without sacrificing panel space or cooling efficiency.
Get a Quick Quote for a Eaton T60030-2SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60030-2SR?
Enquire Now
FAQs
The T60030-2SR uses screw terminals for two-pole wiring and accepts #10 AWG copper conductors. It measures 3 inches in length and width with a 1 inch height, making it a compact choice for tight panel spaces. Its lightweight design (0.311 lb) facilitates easier handling during panel assembly and maintenance.
This fuse block supports a 0–30 A amperage range, with a voltage rating of 600 Vac and 600 Vdc. It offers a 200 kAIC interrupt rating and a 200 kA short-circuit rating, providing strong fault protection for control circuits in demanding environments.
Yes. The device carries UL Listed and CSA Certified markings, along with RoHS compliance and CE marking, enabling worldwide application in industrial equipment and meeting common regulatory requirements for international projects.
Absolutely. Its modular design and screw-terminal wiring allow quick fuse replacement and straightforward diagnostics. The compact form factor and straightforward wiring reduce maintenance time, helping keep lines productive and minimizing unplanned downtime.
Common applications include machine controls, PLC power feeds, motor control circuits, and auxiliary supply protection in packaging and processing lines. Its 0–30 A range, 600 Vac/dc rating, and high interrupt capability make it suitable for both AC and DC control systems in robust industrial environments.
