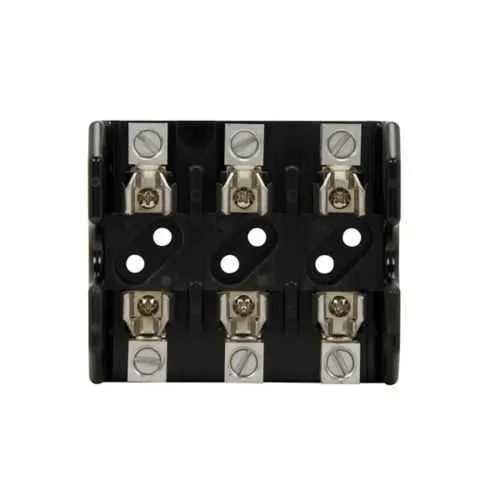

Eaton T60030-3CR Class T modular fuse block - UL Listed
Part Number: T60030-3CR
Quick Summary
Eaton T60030-3CR Class T modular fuse block is a compact, three‑pole protector for control circuits in industrial panels and MCCs. It delivers reliable overcurrent protection from 0 to 30 A in 600 Vac or 600 Vdc environments, helping engineers reduce fuse failures and unplanned downtime. This unit carries RoHS compliance and CE marking, with UL Listed and CSA Certified ratings to support global regulatory adherence. By combining a box‑lug connection with a robust glass polyester body, it offers easy field installation and strong safety margins, enabling scalable panel design and cost‑effective maintenance across automation facilities.
Product Information
Extended Description
T60030-3CR Eaton: Eaton Bussmann series Class T modular fuse block, CR, 600 Vac/Vdc or less individual control circuits, 0-30 A, Three-pole, Class T, Box lug, 200 kAIC, Glass polyester, #2 AWG Cu/Al
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60030-3CR
UPC
051712148092
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.52 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Glass polyester
Number of Poles
Three-pole
Wire size
#2 AWG Cu/Al
Class
Class T
Connection
Box lug
Special features
CR
Feature: 0-30A amperage rating → Business impact: precise control circuit protection reduces nuisance blows and equipment wear; Application: control circuits in industrial panels and machine controls. Feature: 600 Vac/600 Vdc voltage rating → Business impact: supports mixed AC/DC control environments without adapters; Application: process and automation lines. Feature: 200 kAIC interrupt rating → Business impact: enhances system safety during fault conditions, decreasing downtime and collateral damage; Application: feeders and control circuits in high-energy panels. Feature: Three-pole design → Business impact: simplifies wiring, reduces terminal clutter, and improves fault discrimination; Application: three-phase control networks in MCCs. Feature: Glass polyester material → Business impact: rugged, flame‑retardant construction for long service life in harsh environments; Application: industrial automation enclosures. Feature: Box lug connection → Business impact: easier, safer terminations with reliable torque retention; Application: field installations with common #2 AWG Cu/Al wiring. Feature: Special features CR → Business impact: compact configuration for retrofit projects without sacrificing protection; Application: retrofits in legacy control panels. Compliance and certification → Business impact: RoHS, CE, UL Listed, CSA Certified align with global regulatory requirements, reducing supplier risk. Weight and form factor → Business impact: lightweight, space‑efficient design supports dense panel layouts and easier handling on site; Application: panel builders and integrators benefit from faster assembly.
Get a Quick Quote for a Eaton T60030-3CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60030-3CR?
Enquire Now
FAQs
The T60030-3CR uses box lug terminals designed for reliable terminations with #2 AWG Cu/Al conductors. It is a three‑pole device intended for panel mounting in standard industrial enclosures. For best reliability, torque specifications must be followed, and consider accommodating lead routing to minimize heat buildup and vibration exposure in dynamic machine environments.
With a voltage rating of 600 Vac and 600 Vdc and an interrupt rating of 200 kAIC, the T60030-3CR provides robust protection for both AC and DC control circuits. This versatility makes it appropriate for mixed-control systems, reducing the need for multiple fuse blocks and simplifying spare parts inventory.
This unit is RoHS Compliant and CE Marked, along with UL Listed and CSA Certified. These certifications support global regulatory compliance, enable wider market access, and help mitigate supplier risk by meeting safety and environmental standards expected in modern electrical protection products.
A 200 kAIC interrupt rating means the fuse block can safely interrupt very high fault currents, protecting upstream equipment and reducing the risk of fire or collateral damage. This capability translates to lower maintenance costs, less downtime after faults, and improved overall system reliability in demanding industrial environments.
Ideal for protection of three‑pole control circuits in industrial panels, MCCs, and automation enclosures, the T60030-3CR supports scalable protection with minimal wiring complexity. ROI comes from reduced fuse failures, faster maintenance, and easier compliance audits, especially in facilities requiring durable, regulatory‑aligned protection in both AC and DC control networks.
