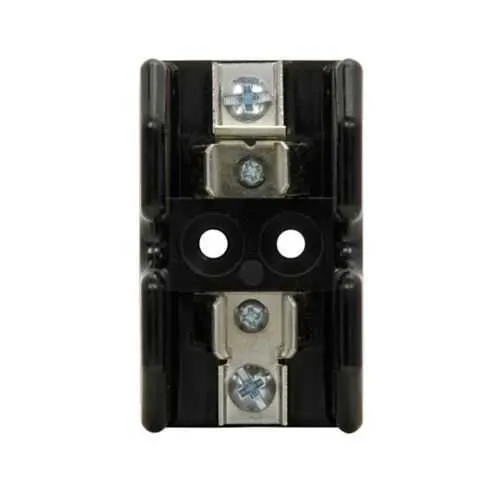

Eaton T60060-1SR Class T Fuse Block - UL Listed
Part Number: T60060-1SR
Quick Summary
The Eaton T60060-1SR Class T fuse block provides modular overcurrent protection for control panels and motor circuits. Design teams frequently contend with crowded enclosures, wiring complexity, and the challenge of achieving fast response and reliable interruption in fault conditions. UL Listed, CSA Certified, and CE Marked with RoHS compliance ensure global acceptance and regulatory alignment across OEMs and integrators. As part of the Bussmann protection family, this compact, screw-terminal fuse block reduces panel footprint and simplifies installation while delivering up to 60A and 200 kAIC performance. This combination supports easy field replacement and scalable protection in diverse automation architectures.
Product Information
Extended Description
T60060-1SR Eaton: Eaton Bussmann series Class T modular fuse block, 31-60 A, Single-pole, Screw, 200 kAIC, Glass polyester, 600 Vac/dc, #18-10 AWG Cu
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60060-1SR
UPC
051712149839
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.31 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
31-60A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Glass polyester
Number of Poles
Single-pole
Wire size
#18-10 AWG Cu
Class
Class T
Connection
Screw
T60060-1SR~BUSS FUSEBLOCK CLASS T
T60060-1SR~BUSS FUSEBLOCK CLASS T
Bussmann series Fuseology
Eaton Specification Sheet - T60060-1SR
Modular fuse block design enables flexible panel layouts and incremental protection upgrades, reducing replacement parts and engineering time. This single-pole, screw-terminal unit accepts copper conductors from #18 to #10 AWG, simplifying early-wiring and field maintenance. Used in control panels, machine control circuits, and compact power-distribution assemblies, it provides a straightforward path from design to deployment in mixed-voltage environments. With 31-60A amperage and 200 kAIC interrupt capacity, the unit delivers robust fault protection, minimizing downtime during short-circuit events and protecting critical equipment. The 600 Vac/600 Vdc rating supports both AC and DC control circuits, expanding application scope in feeders, drives, and automation modules. Glass polyester housing offers durability in industrial settings, while RoHS, CE, UL Listed, and CSA Certified marks ensure global compliance and supply-chain confidence. Compatibility with Bussmann series fuses ensures consistent performance and simplifies stocking for spare parts and replacements. The screw-terminal design enables fast, secure terminations and reduces installation time in dense control panels, supporting faster commissioning and easier maintenance planning. Overall, this fuse block helps OEMs achieve cost savings through reduced wiring complexity, improved uptime, and streamlined compliance documentation.
Get a Quick Quote for a Eaton T60060-1SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60060-1SR?
Enquire Now
FAQs
The T60060-1SR uses a single-pole, screw-terminal connection and accepts #18-10 AWG Cu conductors, enabling quick wiring in standard control panels. Its compact form and straightforward installation reduce panel downtime during commissioning and replacements, while ensuring reliable termination in dense enclosures.
This fuse block is rated for 31–60A with a 200 kAIC interrupt rating and a 200 kA short-circuit rating. It supports 600 Vac and 600 Vdc, making it suitable for both AC and DC control circuits in automation equipment and motor starter applications.
Ideal for control panels, machine control circuits, and compact power-distribution assemblies, especially where space is at a premium and reliable overcurrent protection is required. It integrates with Bussmann Series fuses for consistent protection across the protection family.
The unit is UL Listed and CSA Certified, with CE marking and RoHS compliance. These certifications support global deployment, regulatory alignment, and reduced supplier risk in international projects.
The screw-terminal design and modular form factor simplify wiring and field replacement, reducing labor time during maintenance. Its compatibility with standard Bussmann fuses and documented specifications streamline part stocking, facilitating faster repairs and improved uptime in automated systems.
