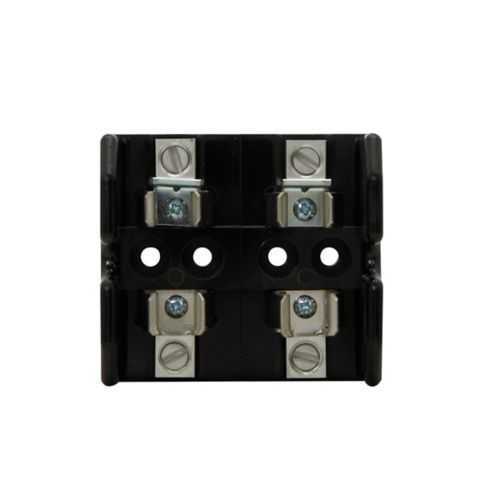

Eaton T60060-2CR Class T modular fuse block - 200 kAIC
Part Number: T60060-2CR
Quick Summary
The Eaton T60060-2CR Class T modular fuse block protects control panels in machine automation. Engineers frequently grapple with nuisance fuse outages and panel downtime, which this block helps minimize through reliable protection. UL Listed, CSA Certified, and RoHS compliant, it meets global safety and environmental standards for diverse markets. A Class T fuse block, part of Eaton Bussmann series, supports 600 Vac/dc control circuits with easy box-lug connections. With 31–60 A rating and 200 kAIC interrupt capacity, it safeguards equipment during short-circuits. Glass polyester construction and #2 AWG Cu/Al wiring support rugged industrial environments. Compatible with box lug connections, RoHS CE marked, and ready for harsh environments.
Product Information
Extended Description
T60060-2CR Eaton: Eaton Bussmann series Class T modular fuse block, CR, 600 Vac/Vdc or Less Control Systems, 31-60 A, Two-pole, Class T, 200 kA, 200 kAIC, Glass polyester, 600 Vac/dc, #2 AWG Cu/Al
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60060-2CR
UPC
051712148122
EAN
5027590404495
Product Length/Depth
3.5 in
Product Height
1.5 in
Product Width
3 in
Product Weight
0.392 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
31-60A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Glass polyester
Number of Poles
Two-pole
Wire size
#2 AWG Cu/Al
Class
Class T
Connection
Box lug
Special features
CR
T60060-2CR~BUSS FUSEBLOCK WAS 1B0077 T60060-2CR-BN
T60060-2CR~BUSS FUSEBLOCK WAS 1B0077 T60060-2CR-BN
Bussmann series Fuseology
Eaton Specification Sheet - T60060-2CR
Feature: 31–60 A amperage rating and 200 kAIC interrupt capability deliver robust protection for control circuits, reducing unplanned downtime and equipment damage. Business impact: minimal downtime translates to higher line throughput and safer maintenance windows. Application: industrial controllers and automation panels in manufacturing environments benefit from reliable, easy-to-service protection. Feature: 600 Vac/600 Vdc voltage rating broadens compatibility with mixed AC/DC control systems. Business impact: simplifies panel design and stock management while meeting safety standards. Application: machine controls, safety interlocks, and conveyors. Feature: Box lug connection and #2 AWG Cu/Al wire compatibility enable faster, error-free wiring. Business impact: reduces installation time and field wiring mistakes, cutting labor costs. Application: panel builders and electrical contractors in automation deployment. Feature: Glass polyester housing provides high dielectric strength and durability in harsh environments. Business impact: longer service life and lower replacement costs. Application: outdoor or harsh factory settings. Feature: Compliance and certifications RoHS, CE marking, UL Listed, CSA Certified ensure regulatory readiness. Business impact: accelerates time-to-market and expands global reach. Application: compliant control equipment for global customers.
Get a Quick Quote for a Eaton T60060-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60060-2CR?
Enquire Now
FAQs
The two-pole T60060-2CR uses box lug connections and supports #2 AWG Cu/Al wiring, rated 31–60 A with a 200 kAIC interrupt rating and a 600 Vac/dc voltage rating, making it suitable for compact control panels and automation cabinets.
Key specs include an amperage rating of 31–60 A, a 200 kAIC interrupt rating, a 200 kA short-circuit rating, and a voltage rating of 600 Vac or 600 Vdc, enabling reliable protection across mixed AC/DC control circuits.
Yes. The fuse block is UL Listed and CSA Certified, with RoHS compliance and CE marking, aligning with global safety, environmental, and regulatory requirements for international deployments.
Commonly deployed in industrial control panels, machine automation systems, and safety circuits where reliable protection and quick fuse replacement are essential for uptime and compliance.
By reducing unplanned outages, enabling faster wiring with box lug terminals, and meeting global compliance, facilities see lower maintenance costs and shorter downtime, improving overall equipment effectiveness (OEE) in automated lines.
