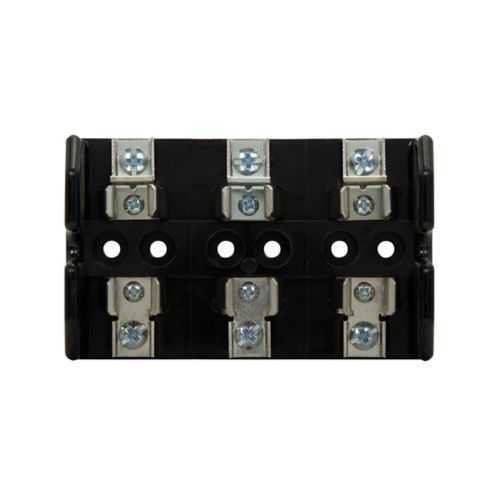

Eaton T60060-3SR Class T modular fuse block - UL Listed
Part Number: T60060-3SR
Quick Summary
The Eaton T60060-3SR Class T modular fuse block provides reliable overcurrent protection for electrical control panels and automation systems. Engineers often struggle with choosing components that meet both performance and maintenance goals; this unit delivers a clear amperage range and robust fault protection to simplify design decisions. UL Listed, CSA Certified, CE Marked, and RoHS compliant, it aligns with essential safety standards for global deployments. With screw terminals and #10 AWG copper wiring, installation is straightforward in tightly packed panels, reducing commissioning time. Designed for Class T protection, it supports scalable protection strategies across evolving automation systems and helps minimize downtime in demanding environments.
Product Information
Extended Description
T60060-3SR Eaton: Eaton Bussmann series Class T modular fuse block, 600 Vac/Vdc or Less Control Systems, 31-60 A, Class T, 200 kA, Screw, 200 kAIC, Glass polyester, 600 Vac/dc, #10 AWG Cu
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60060-3SR
UPC
051712149853
EAN
5027590421720
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.55 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
31-60A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Glass polyester
Wire size
#10 AWG Cu
Class
Class T
Connection
Screw
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - T60060-3SR
Feature: Class T modular fuse block design enables a compact, modular approach to protection. Benefit: simplifies maintenance and field replacement while preserving panel density and serviceability in evolving automation architectures. Application: control panels in medium-scale machinery and line-side equipment. Feature: 31–60 A amperage rating paired with a 200 kAIC interrupt rating. Benefit: reliable fault-current handling for high-speed disconnects and reduced risk of cascading failures. Application: mid-range control circuits in automated lines and packaging machines. Feature: 600 Vac/600 Vdc voltage rating. Benefit: supports both AC and DC control circuits within a single protective device, reducing component variety and stock. Application: industrial automation and power-distribution blocks. Feature: Screw terminals and #10 AWG copper wire. Benefit: secure, vibration-resistant connections with straightforward field wiring and inspection. Application: panel wiring inside harsh factory floors and robotic cells. Feature: Glass polyester housing with RoHS compliance and CE/UL/CSA certifications. Benefit: durable, compliant protection for global deployments, lowering regulatory risk and facilitating cross-border procurement. Application: compliant, long-life protection in harsh environments. Feature: Class T designation and ease of compatibility with Bussmann series accessories. Benefit: predictable performance and scalable protection as plant protections evolve. Application: modular protection strategies in automation, conveyors, and packaging lines.
Get a Quick Quote for a Eaton T60060-3SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60060-3SR?
Enquire Now
FAQs
The catalog number is T60060-3SR and the device protects 31–60 A per circuit. It supports a 200 kAIC interrupt rating and a 600 Vac/600 Vdc voltage rating, with screw terminals for #10 AWG Cu conductors and a glass-polyester housing. This combination suits mid-range control circuits in industrial panels.
Yes. The T60060-3SR is UL Listed and CSA Certified, and it is CE marked with RoHS compliance. These certifications help ensure regulatory alignment for global deployments and simplify supplier qualification for automated systems and machinery.
Key ratings include 31–60 A amperage, 200 kAIC interrupt rating, 200 kA short-circuit rating, and a voltage rating of 600 Vac/600 Vdc. These specs make it suitable for reliable protection in medium-load control circuits across industrial automation.
The fuse block uses screw terminals and supports #10 AWG copper conductors, enabling secure, vibration-resistant wiring. Its Class T design and robust glass polyester housing provide durable protection in compact panel layouts, reducing commissioning time and improving serviceability during maintenance or upgrades.
Commonly used in industrial automation, machine control panels, conveyors, and power-distribution networks. It is well-suited for 600 Vac/DC control circuits requiring high fault-current protection, regulatory compliance (UL/CSA/CE), and reliable, modular protection that scales with evolving plant protection schemes.
