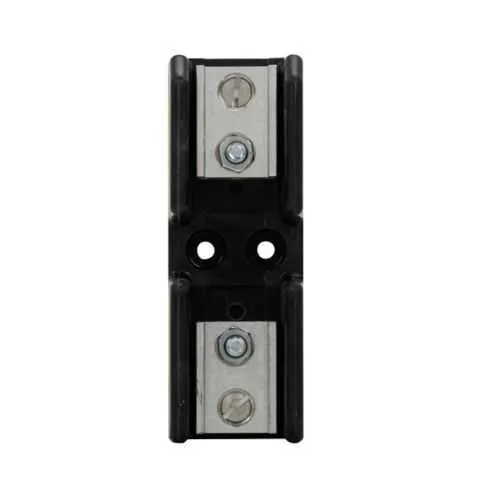

Eaton T60100-2C Fuse Block - Class T UL Listed
Part Number: T60100-2C
Quick Summary
Eaton T60100-2C fuse block provides modular overcurrent protection for control panels and automation systems. Design teams often struggle to fit high-current fusing into compact enclosures while maintaining reliability and safety. This Class T device carries RoHS compliance, CE marking, UL Listed status, and CSA certification to streamline procurement and regulatory workflows. Its two-pole design with box lug terminals supports #2/0 AWG Cu/Al, enabling robust protection with straightforward installation and predictable system performance. For engineering teams, this translates to faster panel builds, reduced downtime, and improved regulatory alignment across automation projects. This combination helps OEMs and integrators meet strict safety and performance targets while reducing total cost of ownership.
Product Information
Extended Description
T60100-2C Eaton: Eaton Bussmann series Class T modular fuse block, 600 Vac/Vdc or less control systems, 61-100 A, Two-pole, 200 kA, Box lug, 200 kAIC, Glass polyester, #2/0 AWG Cu/Al
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60100-2C
UPC
051712147156
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
3.9 in
Product Weight
2.025 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
61-100A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Glass polyester
Number of Poles
Two-pole
Wire size
#2/0 AWG Cu/Al
Class
Class T
Connection
Box lug
T60100-2C~CLASS T FUSEBLOCK
T60100-2C~CLASS T FUSEBLOCK
Bussmann series Fuseology
Eaton Specification Sheet - T60100-2C
Feature: Two-pole Class T fuse block supports 61–100 A with a 200 kAIC interrupt rating. Business Impact: Delivers high-energy fault protection for mid-range loads, reducing uptime risk and equipment damage. Application: Ideal for control panels and machine feeders in automation lines where reliable current protection is essential. Feature: Rated for 600 Vac and 600 Vdc with a glass polyester body. Business Impact: Provides safe, durable operation across AC and DC control circuits while supporting RoHS and CE compliance. Application: Suitable for mixed-voltage control systems in industrial equipment and process automation. Feature: Box lug terminals accept #2/0 AWG Cu/Al. Business Impact: Enables robust wiring with straightforward termination, reducing field install time and torque variability. Application: Main power inputs and branch connections in compact panels where secure, low-resistance terminations are required. Feature: RoHS compliant, CE marked, UL Listed, and CSA Certified. Business Impact: Streamlines purchasing, eases audits, and reduces regulatory risk across North American and European sites. Application: Any regulated industrial installation needing formal certifications and environmental compliance. Feature: Compact width of 3.9 in and weight of 2.025 lb. Business Impact: Space-efficient footprint supports tighter cabinet layouts and lighter handling during installation and service. Application: Enclosures with limited mounting depth, where panel real estate matters. Feature: Class T designation and wiring-friendly design with a box-lug connection. Business Impact: Enables modular, scalable protection in control architectures, lowering spare-parts inventory and improving serviceability. Application: Retrofit or expansion of automation panels in manufacturing and OEM equipment.
Get a Quick Quote for a Eaton T60100-2C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60100-2C?
Enquire Now
FAQs
To install the T60100-2C, power down the panel and verify that the conductor type is #2/0 AWG Cu or Al. Mount the two-pole fuse block in the designated enclosure, connect conductors to the box lug terminals, and securely tighten the lugs per standard torque guidelines. Ensure all wiring remains within voltage and amperage ratings (61–100 A, 200 kAIC) and that the device is properly grounded for safety.
The unit is rated for 61–100 A, with a 200 kAIC interrupt rating and a 200 kA short-circuit rating. It supports 600 Vac and 600 Vdc, with a two-pole configuration and box lug connections designed for reliable power distribution in control panels and automation equipment.
Yes. The fuse block accepts #2/0 AWG conductors made of copper or aluminum. This compatibility simplifies wiring choices for mixed-material installations and supports robust, low-impedance terminations in high-current applications.
The device is RoHS compliant and CE marked, with UL Listed and CSA Certified approvals. These certifications help streamline procurement, qualify for regulatory audits, and support safe operation across North American and European installations.
Using a Class T fuse block provides predictable protection with high interrupt ratings, reducing unplanned downtime. Certifications and RoHS compliance simplify audits and sourcing, while the box lug terminations and compact form factor speed installation and cabinet space utilization, delivering lower total cost of ownership for OEMs and maintenance teams.
