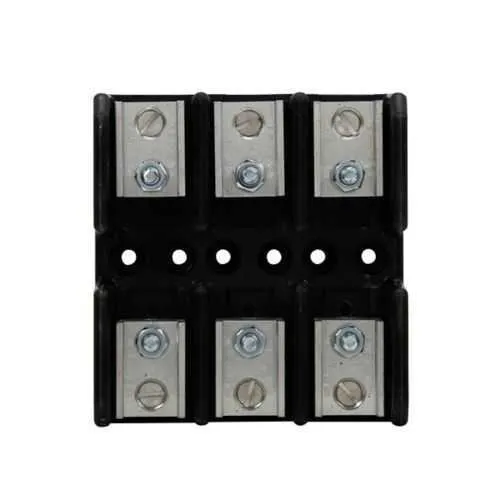

Eaton T60100-3C Class T modular fuse block - UL Listed
Part Number: T60100-3C
Quick Summary
Eaton T60100-3C Class T modular fuse block protects industrial control systems. Engineers often struggle with space constraints, high fault currents, and the need for reliable protection in rugged environments. UL Listed, CSA Certified, and CE RoHS compliant, this device aligns with critical industry standards for safety and traceability. Its compact three-pole design and box-lug connections streamline installation, while the 200 kAIC interrupt rating supports demanding applications. With a 600 Vac/600 Vdc rating, it fits modern control cabinets and motor-control circuits, delivering dependable protection and lower maintenance costs.
Product Information
Extended Description
T60100-3C Eaton: Eaton Bussmann series Class T modular fuse block, 600 Vac/Vdc or less control systems, 61-100 A, Three-pole, Class T, Box lug, 200 kAIC, Glass polyester, #2/0 AWG Cu/Al
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60100-3C
UPC
051712147163
Product Length/Depth
4.875 in
Product Height
2 in
Product Width
4.563 in
Product Weight
1.482 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
61-100A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Glass polyester
Number of Poles
Three-pole
Wire size
#2/0 AWG Cu/Al
Class
Class T
Connection
Box lug
Feature: The T60100-3C is a 61-100 A three-pole Class T fuse block designed for demanding control systems. Business impact: With an interrupt rating of 200 kAIC, it rapidly isolates faults, minimizes arc energy, and protects downstream devices. Application: Suitable for industrial machines, machine control panels, and safety circuits where compact footprint and robust protection are essential.Feature: It accepts 600 Vac and 600 Vdc for versatile AC and DC control circuits across mixed automation architectures. Business impact: This broad compatibility reduces spare part inventories, simplifies training, and improves maintenance planning. Application: Ideal for control panels in conveyors, packaging lines, and process equipment where reliable protection is mission critical.Feature: Three-pole construction with box lug terminations keeps wiring neat, secure, and accessible for service. Business impact: Box lug connections provide reliable torque performance, vibration resistance, and fast installer-friendly terminations. Application: Use in rugged environments where mechanical integrity matters during routine maintenance and inspections.Feature: Glass polyester housing offers excellent dimensional stability, electrical insulation, and chemical resistance. Business impact: Maintains insulation integrity under thermal cycling, humidity, and harsh cleaning regimes, reducing nuisance trips. Application: Suitable for control enclosures in manufacturing, food and beverage, and chemical processing facilities.Feature: Accepts #2/0 AWG Cu/Al conductors, accommodating large feeder requirements. Business impact: Supports high-current feeders with minimal terminal jitter and easier conductor routing, improving install time. Application: Power feeds and distribution in machine controls, switchgear, and drive panels.Feature: RoHS compliant, CE marked, UL Listed, and CSA Certified to meet global regulatory expectations. Business impact: Streamlines procurement, reduces compliance risk, and accelerates global deployment. Application: Suitable for regulated facilities and international equipment rollouts across manufacturing and energy sectors.
Get a Quick Quote for a Eaton T60100-3C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60100-3C?
Enquire Now
FAQs
The T60100-3C uses box lug terminations and accepts #2/0 AWG Cu/Al conductors, enabling secure, vibration-resistant wiring in control panels and switchgear enclosures.
It is rated for 61-100 A, with a 200 kAIC interrupt rating and 200 kA short-circuit rating, and supports 600 Vac or 600 Vdc, suitable for mixed AC/DC control circuits.
Yes. It carries RoHS compliance, CE marking, UL Listed, and CSA Certification, providing regulatory confidence and suitability for rugged manufacturing settings.
Ideal for machine control panels, drives and motor-control centers, and safety circuits where compact protection, high fault tolerance, and reliable termination are critical.
The three-pole Class T design with box lug terminations simplifies servicing; its high interrupt rating reduces arc exposure, and modular construction minimizes spare parts and downtime during scheduled maintenance.
