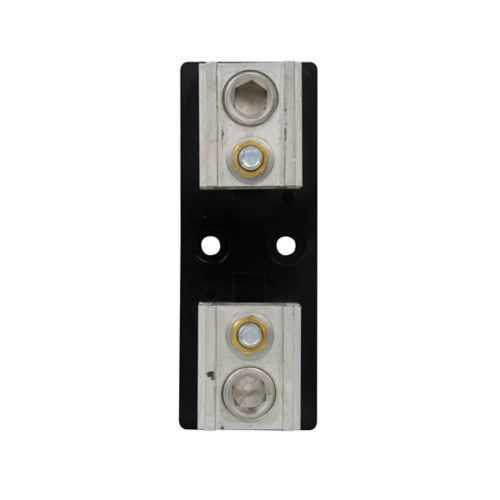

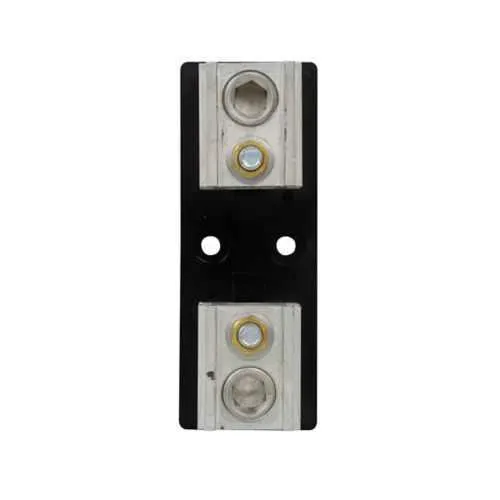

Eaton T60400-1C Class T Fuse Block - UL Listed
Part Number: T60400-1C
Quick Summary
The Eaton T60400-1C Class T fuse block is a modular protection device for high-current electrical systems. In many panel and switchgear applications, installers face tight spaces, complex wiring, and the need for reliable, high-current interruption. This design carries UL Listed and CSA Certified marks, plus RoHS compliance and CE marking, ensuring regulatory alignment in many regions. By combining robust wire termination options (#2/0-600 kcmil Cu/Al) with a compact glass polyester body, it delivers faster installation and safer operation, supporting long-term maintenance cost reductions while maintaining Class T credentials and box lug connectivity for diverse enclosure layouts.
Product Information
Extended Description
T60400-1C Eaton: Eaton Bussmann series Class T modular fuse block, 201-400 A, Class T, Box lug, 200 kAIC, Glass polyester, 600 Vac/dc, #2/0-600 kcmil Cu/Al
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60400-1C
UPC
051712149464
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
1.2 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
201-400A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Glass polyester
Wire size
#2/0-600 kcmil Cu/Al
Class
Class T
Connection
Box lug
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - T60400-1C
Feature: Amperage rating of 201-400A. Business Impact: Provides appropriate interrupt capacity with a 200 kAIC interrupt rating, enhancing protection for mid-to-high current feeders. Application: Ideal for panel boards and switchgear assemblies in industrial environments. Feature: Class T modular fuse block design. Business Impact: Modular architecture reduces spare parts, speeds field replacements, and simplifies future upgrades. Application: Flexible into retrofit projects and evolving control cabinets. Feature: Wide conductor compatibility Cu/Al #2/0-600 kcmil. Business Impact: Enables direct termination of large feeders, reducing termination complexity and fault risk. Application: Power distribution panels and motor control centers. Feature: Glass polyester housing with 600 Vac/600 Vdc rating. Business Impact: Durable insulation and safe operation across AC and DC circuits, even in demanding environments. Application: Harsh manufacturing floors and equipment enclosures. Feature: Compliance and certifications UL Listed, CSA Certified, RoHS Compliant, CE Marked. Business Impact: Regulatory alignment reduces audit overhead and accelerates procurement across regions. Application: Global rollouts in automotive, water treatment, and food processing facilities.
Get a Quick Quote for a Eaton T60400-1C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60400-1C?
Enquire Now
FAQs
The T60400-1C supports Cu/Al conductors from #2/0 up to 600 kcmil and uses box lug terminations, enabling straightforward integration with common panelboard and switchgear architectures. This reduces field rework and simplifies alignment with existing bus and busbar layouts while maintaining a secure, low-resistance connection.
Key specs include an amperage rating of 201-400A, an interrupt rating of 200 kAIC, a short-circuit rating of 200 kA, and a voltage rating of 600 Vac/600 Vdc. Built with a glass polyester housing, it is designed for reliable protection in demanding industrial environments and aligns with Class T protection standards.
Yes. The device is UL Listed and CSA Certified, and it complies with RoHS and CE marking requirements. This combination supports global procurement and regulatory acceptance, reducing compliance risk in multinational projects and ensuring safer, certifiable protection in systems up to 600 Vac and 600 Vdc.
The modular Class T design simplifies replacement and upgrades, reduces spare parts inventory, and improves maintenance speed. With box lug terminations and the ability to accommodate large Cu/Al conductors, it streamlines wiring in control cabinets and switchgear assemblies while maintaining robust protection at high current levels.
Expected benefits include reduced downtime due to rapid replacement, lower long-term maintenance costs from durable glass polyester construction, and regulatory assurance from UL CSA RoHS CE compliance. The combination of reliable protection and easier installation supports a lower total cost of ownership in critical power distribution paths.
