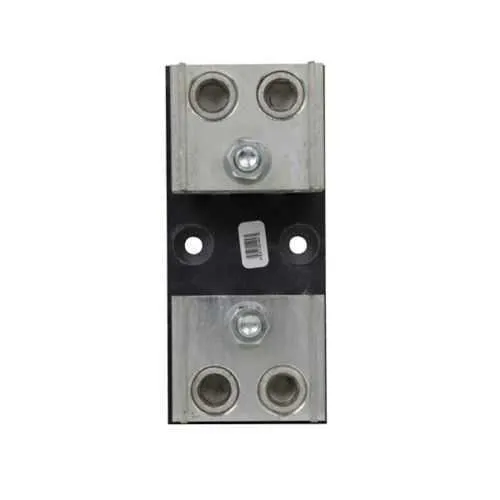

Eaton T60600-1C Class T modular fuse block - UL Listed
Part Number: T60600-1C
Quick Summary
Eaton T60600-1C Class T modular fuse block provides essential overcurrent protection for industrial control panels. Engineers and maintenance teams often struggle with compatibility, wiring complexity, and downtime when selecting fuse blocks for critical control circuits. UL Listed, CSA Certified, and RoHS compliant with CE marking help meet safety, regulatory, and environmental requirements in modern facilities. With box-lug terminations and support for Cu/Al conductors #2/0-600 kcmil, it enables fast installation, reliable service, and simplified procurement for panel builders and OEMs.
Product Information
Extended Description
T60600-1C Eaton: Eaton Bussmann series Class T modular fuse block, 600 Vac/Vdc or less individual control circuits, 401-600 A, Box lug, 200 kAIC, Phenolic, #2/0-600 kcmil Cu/Al
Product Name
Eaton Bussmann series Class T modular fuse block
Catalog Number
T60600-1C
UPC
051712149471
Product Length/Depth
7 in
Product Height
3 in
Product Width
3 in
Product Weight
2.507 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
401-600A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 Vac, 600 Vdc
Material
Phenolic
Wire size
#2/0-600 kcmil Cu/Al
Class
Class T
Connection
Box lug
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - T60600-1C
High-amperage Class T design supports 401-600 A, delivering robust protection in compact form. This enables panel designers to consolidate fusing without sacrificing safety, reducing enclosure size and wiring complexity for motor control centers. The device features a 600 Vac/600 Vdc rating and a 200 kAIC interrupt capability, providing rapid fault clearance and protecting downstream equipment in demanding applications such as conveyors and presses. Built with a phenolic housing, the fuse block offers enhanced flame resistance and temperature stability in harsh industrial environments, improving long-term reliability. Wiring is simplified by Cu/Al compatibility and a box-lug termination supporting #2/0-600 kcmil conductors, enabling faster field wiring and easier upgrades or retrofits in existing panels. Compliance is straightforward with UL Listed, CSA Certified, and RoHS CE Marked certifications, reducing procurement risk and ensuring alignment with regulatory programs across global facilities.
Get a Quick Quote for a Eaton T60600-1C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton T60600-1C?
Enquire Now
FAQs
When wiring the T60600-1C, use the box lug terminals designed for Cu or Al conductors from #2/0 up to 600 kcmil. Ensure enclosure space accommodates the 7 in length and 3 in width, and verify panel mounting aligns with standard Class T fuse blocks to maintain secure connections and proper heat dissipation.
The unit provides 401-600 A continuous amperage, a 600 Vac and 600 Vdc voltage rating, and a 200 kAIC interrupt rating with a 200 kA short-circuit rating, suitable for high-energy control circuits and demanding protection scenarios in industrial equipment.
Yes. The fuse block is UL Listed and CSA Certified, with RoHS compliance and CE marking, ensuring regulatory alignment for global manufacturing, import, and uptime requirements in automation and power distribution applications.
Common applications include industrial control panels, motor control centers, machine controllers, and power distribution sections within manufacturing lines, where reliable 401-600 A protection and robust fault clearing are critical for uptime and safety.
The device reduces downtime through fast fault clearance (200 kAIC capability), simplifies procurement via UL/CSA and RoHS/CE compliance, and supports easier field wiring with Cu/Al compatibility and box-lug terminations, delivering lower maintenance costs and a shorter time-to-repair in high-demand environments.
