Eaton TB100M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: TB100M
Quick Summary
The Eaton TB100M Condulet is a Form 5 conduit outlet body designed for rugged industrial wiring installations across control panels and machine enclosures. Engineers and procurement teams often struggle with durable, code-compliant fittings that install quickly and resist impact in busy plant environments. This model meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, with UL certifications available through Eaton's specification resources. Malleable iron construction and a 1-inch trade size ensure reliable wiring routes, easy accessory compatibility, and predictable performance in cramped installations. Using TB100M can streamline procurement, shorten commissioning times, and lower lifecycle costs by delivering a robust, field-ready conduit outlet body with proven Form 5 compatibility.
Product Information
Extended Description

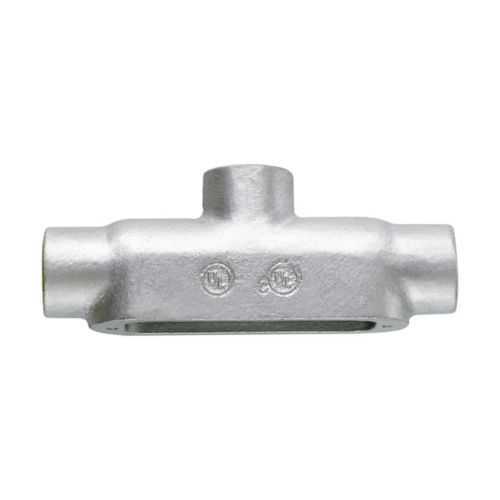

TB100M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, TB shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
TB100M
UPC
782274756608
Product Length/Depth
7.05 in
Product Height
2.65 in
Product Width
1.8 in
Product Weight
1.97 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
TB
Trade size
1"
Material
Malleable iron
Eaton Crouse-Hinds TB100M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - TB100M
Feature: Malleable iron construction provides robust protection for splices and terminations. Business Impact: Enhanced durability reduces replacement costs and downtime. Application: Ideal for Form 5 conduit assemblies in control panels and machine enclosures where reliability is critical. Feature: 1 inch trade size enables broad conduit compatibility. Business Impact: Faster installation with fewer field modifications, cutting labor costs and risk. Application: Suitable for standard industrial wiring runs in ordinary locations using Condulet TB100M. Feature: Form 5 TB shape facilitates easy access to internal splices while maintaining conductor protection. Business Impact: Simplified maintenance schedules and quicker inspections, boosting uptime. Application: Common in Eaton Crouse-Hinds Form 5 systems and related fittings. Feature: Weight of 1.97 lb supports safer handling and improved on-site productivity. Business Impact: Reduced fatigue during installation and retrofits in crowded panels. Application: Field deployments where space and maneuverability are constrained. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating minimize regulatory risk. Business Impact: Streamlined QA approvals and faster procurement cycles. Application: Industrial facilities requiring reliable, code-compliant conduit outlet bodies. Feature: Precise dimensions—7.05 in length, 2.65 in height, 1.8 in width—facilitate accurate panel layout and mounting. Business Impact: Predictable fit, easier planning, and fewer reworks. Application: System design and installation planning for Form 5 conduit networks.
