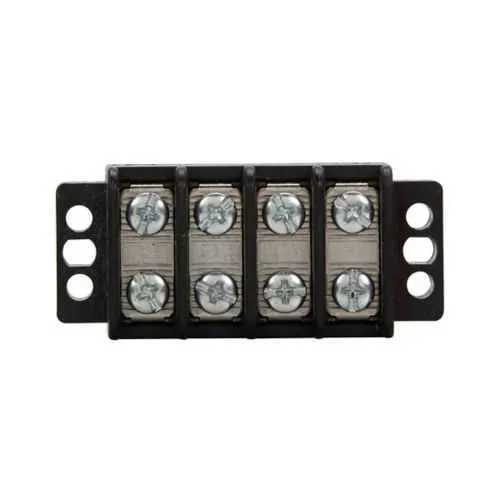

Eaton TB200-15B Terminal Block Connector - CE RoHS
Part Number: TB200-15B
Quick Summary
The Eaton TB200-15B Terminal Block Connector is a panel-mount termination solution designed for reliable, high-density wiring in electrical control panels. Engineers frequently confront wiring density, misaligned connections, and insulation challenges in compact cabinets; TB200-15B helps reduce these risks with a double-row barrier design and 6-32 TPI screw terminals. It carries CE marking and RoHS compliance, ensuring regulatory conformity across European installations while supporting robust electrical performance. For teams pursuing scalable, cost-effective panel wiring, this 15-pole block delivers a proven balance of density, ease of installation, and long-term reliability in industrial environments. Its nickel-plated brass philslot screws contribute to corrosion resistance and consistent torque, reducing maintenance and rework in the field.
Product Information
Extended Description
TB200-15B Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800 V, 300 V, 30 A, Double row, Barrier, 15-pole, 6-32 TPI Screw, Black, Nickel-plated brass philslot screw
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200-15B
UPC
051712274074
Product Length/Depth
7.31 in
Product Height
0.56 in
Product Width
1.12 in
Product Weight
3 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
300 V
Number Of Poles
15-pole
Type
Double row, barrier
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Feature: 15-pole, double-row barrier configuration with 6-32 TPI philslot screws. Business Impact: Enables high-density wiring in a compact footprint, reducing panel size and simplifying routing. Application: Ideal for control panels and distribution blocks in machine automation where space is at a premium. Feature: Electrical ratings of 30 A and 300 V with a breakdown voltage of 4800 V. Business Impact: Supports standard control circuits with a healthy insulation margin, improving safety and system reliability. Application: Suitable for power and signal interconnects in industrial automation throughout European and North American facilities. Feature: Dimensions and mass (7.31 in length, 1.12 in width, 0.56 in height, 3 lb). Business Impact: Small form factor enables easier installation in tight cabinets and aligns with modular panel designs, reducing installation time. Application: Replacement-friendly in legacy systems and new builds alike. Feature: Compliance attributes (CE Marked, RoHS Compliant). Business Impact: Regulatory conformity simplifies procurement for European projects and mitigates compliance risk. Application: Useful across automated lines requiring certified components. Feature: Material and hardware (nickel-plated brass philslot screws). Business Impact: Provides corrosion resistance and stable torque for long-term reliability, lowering maintenance costs. Application: Harsh industrial environments where screw integrity is critical.
Get a Quick Quote for a Eaton TB200-15B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB200-15B?
Enquire Now
FAQs
TB200-15B employs 6-32 TPI philslot screws and a double-row barrier design, enabling secure, high-density terminations within a panel-mount footprint. The 15-pole configuration supports dense interconnects while providing straightforward assembly, alignment, and torque control to minimize rework in control cabinets and industrial panels.
This block is rated for 30 A and 300 V, with a breakdown voltage of 4800 V to ensure a wide insulation margin in dense interconnects. These ratings support typical control circuits in automation equipment, while maintaining safe separation between conductors and reducing arc-related risks in harsh industrial environments.
TB200-15B is ideal for control cabinets, machine automation panels, and power-distribution blocks requiring 15 poles in a compact footprint. Its double-row barrier design helps organize signaling and interconnects in dense layouts, making it well-suited for European machinery and other installations needing CE RoHS-compliant components.
The block is CE marked and RoHS compliant, supporting regulatory adherence in European markets. For additional or specific certifications beyond these, consult the manufacturer, as needed for particular industries or customer requirements.
Nickel-plated brass philslot screws provide corrosion resistance and consistent torque, reducing maintenance in harsh environments. The compact 7.31 in length and 3 lb weight simplify installation and replacement, while the robust barrier design lowers rework and spares costs over the system's lifetime, contributing to a favorable totalCost of ownership in automated facilities.
