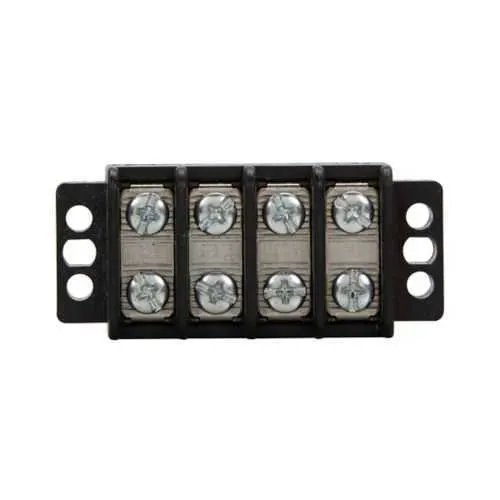

Eaton TB200-15SP Panel Mount Terminal Block - 4800V
Part Number: TB200-15SP
Quick Summary
The Eaton TB200-15SP panel mount terminal block provides reliable, high-current connections for control panels and equipment. Installers often face crowded enclosures and terminals that loosen over time, causing downtime. This unit carries CE marking and RoHS compliance, helping meet European safety and environmental requirements. The 15-pole, double-row barrier design enables dense wiring with predictable terminations, while the screw-based connection is compatible with standard 6-32 TPI hardware. By combining rugged tin-plated brass terminals with sturdy zinc-plated steel screws, it delivers long-term reliability, easier maintenance, and scalable wiring for growing automation systems.
Product Information
Extended Description
TB200-15SP Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800 V, 300 V, 30 A, 15-pole, 6-32 TPI Screw, Black, Tin-plated brass terminal, Zinc-plated steel SEMS philslot screw
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200-15SP
UPC
051712272568
Product Length/Depth
7.31 in
Product Height
0.56 in
Product Width
1.12 in
Product Weight
3 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
300 V
Number Of Poles
15-pole
Type
Double row, barrier
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Feature: 15-pole, double-row barrier configuration. Benefit: enables high-density wiring in a compact footprint, reducing panel size and improving traceability. Application: control panels with limited space for interconnects. Feature: 30A rating at 300V and 4800V breakdown voltage. Benefit: supports multi-circuit applications with robust isolation and safe operation in mixed-voltage environments. Application: machine controls and instrumentation panels requiring reliable isolation. Feature: 6-32 TPI screws with tin-plated brass terminals. Benefit: provides secure, corrosion-resistant terminations and low contact resistance, enhancing longevity in vibration-prone environments. Application: rugged manufacturing lines and outdoor enclosures. Feature: Double-row barrier design. Benefit: simplifies wiring schemes and minimizes mis-wiring during maintenance or expansion. Application: modular automation architectures and scalable control systems. Feature: Panel mount footprint with precise dimensions (7.31 in length, 1.12 in width, 0.56 in height) and 3 lb weight. Benefit: easy integration into existing enclosures and supports straightforward installation. Application: retrofit projects and new builds prioritizing compact, serviceable wiring solutions. Feature: CE Marked, RoHS compliant. Benefit: regulatory alignment reduces compliance risk and accelerates approval cycles. Application: European installations and regulated industries requiring environmental and safety certifications.
Get a Quick Quote for a Eaton TB200-15SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB200-15SP?
Enquire Now
FAQs
To install TB200-15SP, prepare a compatible panel cutout for 15 poles in a double-row arrangement. Secure the block with the supplied panel-mount hardware, tighten 6-32 screws evenly to the recommended torque, and route conductors into the tin-plated brass terminals. Ensure the enclosure remains clean and vibration is mitigated to prevent loosening.
TB200-15SP supports up to 30 A per pole at 300 V, with a 4800 V breakdown voltage for isolation. The 15-pole, double-row barrier design supports dense wiring, while SEMS philslot screws and tin-plated terminals ensure low contact resistance and reliable performance in control circuits.
Yes. The 15-pole, double-row barrier configuration enables dense wiring within a compact footprint, reducing enclosure size. Its robust terminals and hardware tolerate vibration and provide dependable terminations, making it ideal for automation panels, machine control, and instrumentation wiring where space is at a premium.
TB200-15SP is CE marked and RoHS compliant, supporting European regulatory requirements for safety and environmental impact. For additional certifications beyond CE RoHS, consult the manufacturer to confirm suitability for specific industries or regional standards.
The tin-plated brass terminals resist corrosion, and the stainless/steel screws with SEMS philslot design provide secure, vibration-resistant terminations. These features reduce rework, downtime, and maintenance costs while improving wiring reliability in dense control panels, contributing to lower total cost of ownership for OEMs and panel builders.
