Eaton TB200-16P Panel Mount Terminal Block - CE Marked RoHS
Part Number: TB200-16P
Quick Summary
The Eaton TB200-16P panel mount terminal block provides a reliable high-current connection for control panels. Engineers often struggle with limited panel space, vibration-induced loosening, and inconsistent termination quality. The TB200-16P addresses these challenges with a sixteen-pole barrier block, molded thermoplastic body, and tin-plated brass terminals. It carries CE Marked RoHS compliance to satisfy regulatory and procurement requirements in harsh environments. With 30 A at 300 V, 7.75 in length and barrier-type mounting, the solution scales easily across control cabinets. From installation time to ongoing reliability, this product supports better uptime, lower maintenance costs, and streamlined supplier certification. Its CE RoHS compliance aligns with global sourcing policies and reduces compliance risk for engineered systems.
Product Information
Extended Description

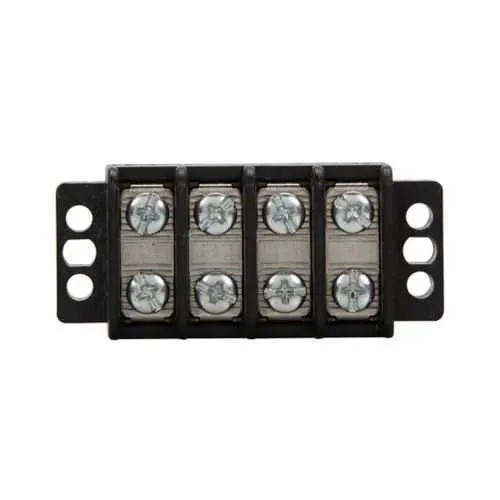

TB200-16P Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800 V, 300 V, 30 A, 16-pole, Black, Molded thermoplastic base, Tin-plated brass terminal, P-style steel SEMS screw
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200-16P
UPC
051712272179
Product Length/Depth
7.75 in
Product Height
0.56 in
Product Width
1.12 in
Product Weight
3.2 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
300 V
Number Of Poles
Sixteen-pole
Type
Barrier
Sixteen-pole barrier block with a 30 A, 300 V electrical rating enables high-density wiring in compact control panels, delivering increased channel count without expanding cabinet space. Business impact: denser layouts reduce panel footprint and wiring complexity, lowering material and labor costs during assembly and future maintenance. Application: machine control and process automation wiring where space is at a premium. The molded thermoplastic base provides excellent insulation and rugged resilience, across vibration-prone environments. Business impact: minimizes arcing risk and insulation failure, boosting reliability and lowering downtime. Application: automotive, packaging, and conveying systems with continual vibration. Tin-plated brass terminals paired with P-style SEMS screws deliver durable, corrosion-resistant terminations and fast, repeatable installations. Business impact: reduces contact resistance and maintenance intervals while enabling quicker field servicing. Application: PLC rack wiring and sensor/actuator terminations. The compact footprint—7.75 in long, 1.12 in wide, 0.56 in high—supports dense panel layouts and cleaner routing. Business impact: simplifies cable routing and reduces panel depth. Application: distributed control panels and multi-channel I/O assemblies. Compliance features—CE Marked and RoHS Compliant—provide regulatory assurance, supporting supplier qualification and risk management. Business impact: accelerates procurement cycles and ensures alignment with global manufacturing standards. Application: regulated industrial environments across oil & gas, water treatment, and packaging lines. The barrier design clearly separates circuits, aiding inspection and fault isolation, while the breakdown voltage options offer generous margins for high-energy applications. Application: safety-critical power distribution and protective interlocks. Overall, the TB200-16P combines material robustness, high-current capability, and regulatory compliance to deliver reliable, scalable terminations for modern automation architectures.
