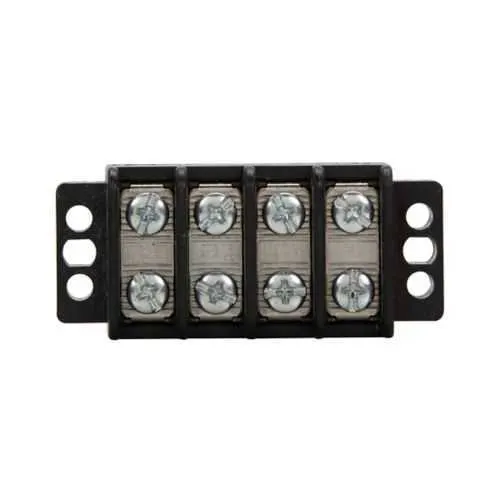

Eaton TB200-2000 Panel Mount Terminal Block Connector - CE RoHS
Part Number: TB200-2000
Quick Summary
TB200-2000 panel mount terminal block connector enables reliable interconnects in electrical control panels. Engineers often wrestle with messy wiring, inconsistent terminations, and slow assembly in high-density panels. These certifications—CE Marked and RoHS Compliant—help ensure regulatory alignment and easier supplier qualification. With bulk screws shipped with the unit and a rugged molded thermoplastic base, the TB200-2000 supports fast field wiring, repeatable terminations, and durable connections in harsh environments. It aligns with standard control panel practices and complements Eaton's Bussmann fuse differentiation. For procurement teams, the consistent form factor simplifies stocking and fast replacement during outages.
Product Information
Extended Description
TB200-2000 Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800 V, 300 V, 30 A, 20-pole, Black, Molded thermoplastic base, Tin-plated brass terminal, Screws shipped bulk
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200-2000
UPC
051712350105
Product Length/Depth
9.5 in
Product Height
0.56 in
Product Width
1.12 in
Product Weight
3.8 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
300 V
Number Of Poles
20-pole
Type
Barrier
Feature → Business Impact → Application: The TB200-2000 uses a 20-pole barrier design which enhances safety by preventing cross-connections and improving traceability in dense panels; this reduces wiring errors and accelerates commissioning in control cabinets. Feature → Business Impact → Application: With a 30 A, 300 V rating and a breakdown voltage up to 4800 V, it supports both low-level control signals and moderate power distribution, enabling safer, more versatile machine control panels in automation lines. Feature → Business Impact → Application: Tin-plated brass terminals paired with a molded thermoplastic base deliver corrosion resistance and robust terminations, reducing maintenance cycles and delivering reliable long-term performance in harsh environments. Feature → Business Impact → Application: Screws shipped bulk streamline procurement and installation on large builds, cutting onsite labor and minimizing part handling time during panel assembly. Feature → Business Impact → Application: The 20-pole, panel-mount form factor with compact dimensions enables high-density layouts in industrial automation, simplifying enclosure design and reducing overall system footprint.
Get a Quick Quote for a Eaton TB200-2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB200-2000?
Enquire Now
FAQs
TB200-2000 installs as a panel-mount block with 20 poles. Use the included or bulk screws to secure the base, route conductors to the tin-plated brass terminals, and tighten to the recommended torque. Maintain clearances per enclosure guidelines and verify insulation between adjacent poles to prevent crosstalk.
The terminal block is rated for 30 A and 300 V, suitable for mixed signal and light power tasks in control circuits. Its breakdown voltage reaches up to 4800 V, providing robust insulation for safe operation under transient and surge conditions typical in industrial automation environments.
Yes. With 20 poles in a compact panel-mount footprint, it supports high-density wiring while still offering safe barrier terminations. The 9.5 in length and 1.12 in width help maximize enclosure real estate, making it a practical choice for modern control cabinets and distributed I/O layouts.
This TB200-2000 is CE Marked and RoHS Compliant, ensuring conformance to European safety and environmental requirements. These certifications simplify regulatory approvals, streamline supplier qualification, and support risk management in global supply chains for industrial equipment.
The unit’s robust materials (tin-plated brass terminals and molded thermoplastic base) contribute to longer service life and reduced maintenance. Bulk screws shipped with the product cut purchasing complexity and speed up field replacement, delivering lower lifecycle costs and faster downtime recovery in production environments.
