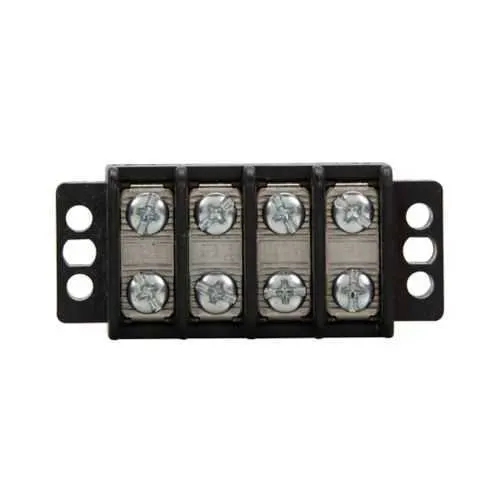

Eaton TB200-20SP Panel Mount Terminal Block - 4800V
Part Number: TB200-20SP
Quick Summary
The Eaton TB200-20SP panel mount terminal block provides reliable, high-density wiring for control panels and industrial machinery. Space constraints and the risk of loose connections in active panels are common pain points that this design helps mitigate. CE Marked and RoHS compliant support regulatory requirements, while the 30 A, 300 V ratings and 4800 V breakdown voltage deliver robust insulation margins. With a double-row barrier configuration and standard 6-32 TPI screws, it enables fast installation, easier maintenance, and long-term reliability in rugged industrial environments. Engineers gain predictable performance with documented spec values, supporting project timelines and cost controls. Its compatibility with standard hardware accelerates procurement and reduces spare parts inventory.
Product Information
Extended Description
TB200-20SP Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800 V, 300 V, 30 A, Barrier, 20-pole, 6-32 TPI Screw, Black, Tin-plated brass terminal, Zinc-plated steel SEMS philslot screw
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200-20SP
UPC
051712194365
Product Length/Depth
9.5 in
Product Height
0.56 in
Product Width
1.12 in
Product Weight
3.8 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
300 V
Number Of Poles
20-pole
Type
Double row, barrier
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Feature: 20-pole barrier design in a double-row arrangement maximizes wiring density while maintaining circuit isolation. Business Impact: Reduces panel width and simplifies wiring schemes, cutting assembly time and minimizing fault opportunities. Application: Ideal for compact control panels in conveyor systems, packaging lines, and automated machinery where space is at a premium. Feature: 30 A at 300 V electrical ratings provide sufficient headroom for typical control circuits and small drives. Business Impact: Lets designers consolidate wiring without overrating components, lowering cost and stock complexity. Application: Suitable for power distribution blocks within machine controls and panel assemblies. Feature: 4800 V breakdown voltage offers enhanced insulation margin beyond standard operating voltages. Business Impact: Increases safety margin during switching transients and fault conditions, reducing risk of arcing. Application: Beneficial in mixed-voltage control cabinets and high-energy environments. Feature: Tin-plated brass terminals and zinc-plated steel SEMS philslot screws deliver durable, corrosion-resistant connections. Business Impact: Improves long-term reliability in harsh industrial settings and reduces maintenance frequency. Application: Preferred in environments with exposure to humidity and contaminants. Feature: 6-32 TPI screw terminals support common wiring practices and broad compatibility with standard hand tools. Business Impact: Speeds installation and simplifies field modifications, lowering labor time. Application: Common in retrofit projects and new builds where installers rely on familiar hardware. Feature: CE Marked and RoHS compliant, with documented general specifications and physical dimensions. Business Impact: Eases regulatory approvals and procurement alignment with standards-based programs. Application: Compliance-conscious deployments in automotive, packaging, and process automation.
