Eaton TB200-20SSL1 Terminal-Block Connector - Barrier
Part Number: TB200-20SSL1
Quick Summary
TB200-20SSL1 Terminal Block Connector is a rugged panel-mount wiring solution designed for reliable, high-density control panels. The design helps engineers eliminate loose connections and chaotic wiring in confined enclosures. With RoHS compliance and CE marking, it supports global deployment while maintaining regulatory peace of mind. The barrier-style construction delivers safe isolation, while tin-plated brass terminals resist corrosion in challenging environments. For panel builders and machine integrators, the TB200-20SSL1 offers dense 20-pole connectivity and a molded thermoplastic base that speeds installation and improves field serviceability. This creates measurable gains in reliability, reduces maintenance costs, and simplifies spare-part management across automation projects.
Product Information
Extended Description

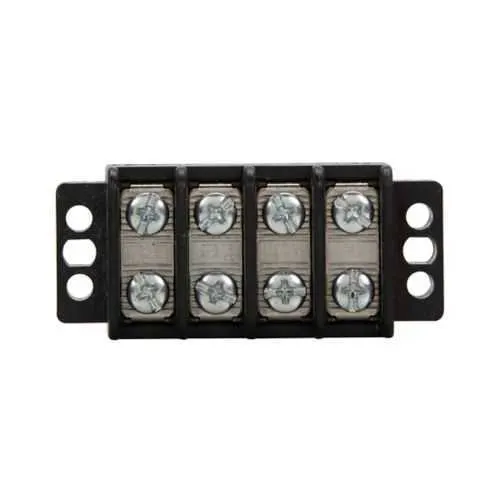

TB200-20SSL1 Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 300V, 30A, Barrier, 20-pole, Black, Molded thermoplastic base, tin-plated brass terminal, stainless steel SEMS philslot - TB200-20SSL1
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200-20SSL1
UPC
051712497367
Product Length/Depth
9.5 in
Product Height
0.56 in
Product Width
1.12 in
Product Weight
3.8 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
300 V
Number Of Poles
20-pole
Type
Barrier
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Feature → Business Impact → Application: 20-pole barrier design enables high-density wiring in a compact footprint. The barrier isolates adjacent circuits, reducing cross-talk and accidental shorts, which translates to safer, more reliable panel wiring. In practice, control cabinets, PLC racks, and machine panels benefit from cleaner terminations, easier fault diagnosis, and faster wiring checks during commissioning. Engineers can allocate more channels in small enclosures without sacrificing serviceability, while field technicians appreciate the clear separation that barrier blocks provide during maintenance.Feature → Business Impact → Application: 30A at 300V ratings support typical automation loads without oversizing components. This reduces the number of required connectors and simplifies protection schemes, cutting bill-of-materials and installation time. In motor drives, servo systems, and I/O cabinets, reliable current capacity and voltage handling translate into fewer warm-up issues and fewer service calls.Feature → Business Impact → Application: Breakdown voltage up to 4800V adds margin for transient events and cross-cabinet interconnects in high-energy environments. The TB200-20SSL1 maintains insulation integrity under fault conditions, which lowers the risk of arcing and equipment damage. This is especially valuable in industrial automation lines with mixed DC and AC feeds, where safety margins are critical.Feature → Business Impact → Application: Molded thermoplastic base provides a robust, lightweight platform with good chemical resistance. Combined with tin-plated brass terminals, it offers corrosion resistance and consistent electrical contact over the product life. Stainless steel SEMS philslots improve fastener retention under vibration, enabling reliable field assembly in machinery with dynamic loads.Feature → Business Impact → Application: RoHS compliant and CE marked ensure global regulatory acceptance and supply-chain confidence. The block's reliable construction, compact form factor, and compatibility with standard panel cutouts help reduce design risk and spare-part variety. For integrators seeking a long-lasting, standards-aligned wiring solution, TB200-20SSL1 supports scalable automation deployments.
Get a Quick Quote for a Eaton TB200-20SSL1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB200-20SSL1?
Enquire Now
FAQs
TB200-20SSL1 installs in panel cavities using its panel-mount design and a 9.5 in length. Start by aligning the 20-pole barrier block with the enclosure cutout, secure with mounting hardware, and route conductors to tin-plated brass terminals. The molded thermoplastic base provides a stable footprint, while the SEMS philslot facilitates secure fastener engagement and vibration resistance.
TB200-20SSL1 is rated for 30A and 300V, with a breakdown voltage up to 4800V. This combination supports power and signal distribution in automation panels while maintaining safe isolation. When designing circuits, ensure conductor sizes and insulation distances match the 30A/300V limits, and select appropriate fusing and protection to protect both the terminal block and connected equipment.
Yes, the TB200-20SSL1's 20-pole barrier design delivers dense connectivity in a compact footprint. The molded thermoplastic base and tin-plated brass terminals withstand vibration and corrosion, making it well-suited for PLC cabinets, motor control centers, and other automation enclosures where space is at a premium and reliability is critical.
TB200-20SSL1 carries RoHS compliance and CE marking, enabling global deployment while meeting environmental and safety requirements. Certifications beyond those depend on the manufacturer's documentation; always verify regional regulatory needs and maintain compliance records in your bill of materials to support audits and supplier qualification.
Using TB200-20SSL1 can lower maintenance and downtime through durable construction, corrosion-resistant terminals, and reliable connections. The dense 20-pole layout reduces panel footprint, speeds wiring during assembly, and simplifies fault tracing. Coupled with RoHS/CE compliance, it supports long service life in harsh environments and reduces spare parts inventory, contributing to lower total cost of ownership.
