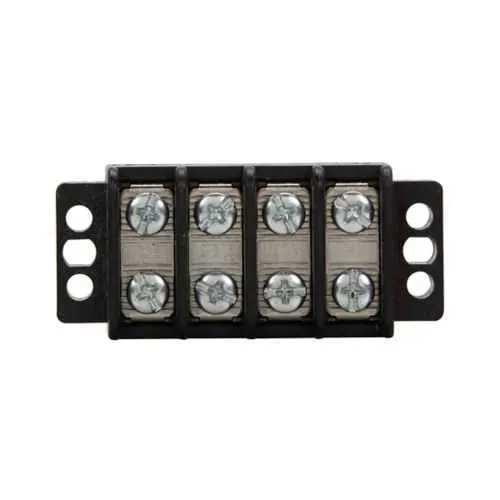

Eaton TB200-26 Panel Mount Terminal Block - CE RoHS
Part Number: TB200-26
Quick Summary
TB200-26 terminal block provides reliable panel-mount connections for distributed control panels. Engineers often struggle with compact barrier blocks that meet 300 V and 30 A specs without slowing installation. This Eaton model is CE marked and RoHS compliant, featuring tin-plated brass terminals and zinc-plated steel screws for long service life in demanding environments. In industrial automation wiring, it delivers density, reliability, and easy maintenance. By combining a 26-pole double-row layout with barrier separation, it reduces panel depth while maintaining safe terminations.
Product Information
Extended Description
TB200-26 Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800 V, 300 V, 30 A, Barrier, 26-pole, 6-32 TPI Screw, Black, Tin-plated brass terminal, Zinc-plated steel philslot screw
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200-26
UPC
051712271967
Product Length/Depth
12.12 in
Product Height
0.56 in
Product Width
1.12 in
Product Weight
4.2 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
300 V
Number Of Poles
26-pole
Type
Double row, barrier
Feature: 26-pole, double-row barrier design enables high-density terminations with safe isolation. Benefit: Maximizes panel wiring density, reducing overall control panel footprint and improving maintenance access in tight spaces. Application: Ideal for compact control panels in machine builders and OEM equipment. Feature: Barrier block construction with 6-32 TPI screws and robust metal terminals. Benefit: Secure, vibration-resistant terminations that withstand industrial environments. Application: Suitable for high-vibration applications in manufacturing lines and packaging equipment. Feature: Tin-plated brass terminals and zinc-plated steel philslot screws. Benefit: Corrosion resistance and durable conductors for long service life with minimal rework. Application: Appropriate for harsh environments and long-term deployments in automation installations. Feature: Electrical ratings of 30 A at 300 V and breakdown voltage up to 4800 V. Benefit: Clear safety margins and reliable performance across transient events. Application: Critical for power distribution and control wiring in mid-scale automation systems. Feature: Compliance with CE and RoHS. Benefit: Simplified regulatory approval and reduced risk across international projects. Application: Global deployments in automated lines and packaging machinery. Feature: 12.12 in length, 1.12 in width, 0.56 in height, and 4.2 lb weight. Benefit: Predictable fit within standard panel cutouts and straightforward handling during installation. Application: Panel wiring where space is constrained and weight considerations matter.
Get a Quick Quote for a Eaton TB200-26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB200-26?
Enquire Now
FAQs
TB200-26 uses a panel-mount design with a double-row barrier configuration, optimized for high-density terminations in standard control panels. It supports 6-32 TPI screws and is designed to fit common panel cutouts used in automation equipment.
TB200-26 is rated for 30 A at 300 V, with a breakdown voltage of up to 4800 V. These specs provide a robust safety margin for typical control-wiring applications in industrial environments.
TB200-26 carries CE marking and RoHS compliance, supporting regulatory requirements across many regions. This helps streamline approvals for machinery and panels in global markets.
The terminals are tin-plated brass and the screws are zinc-plated steel philslot screws, delivering corrosion resistance and reliable termination under vibration and temperature cycling.
Its 26-pole, double-row barrier design provides dense terminations while maintaining isolation between circuits. The compact 12.12 in length, along with 6-32 TPI screws, facilitates faster assembly and easier field maintenance in automation panels.
