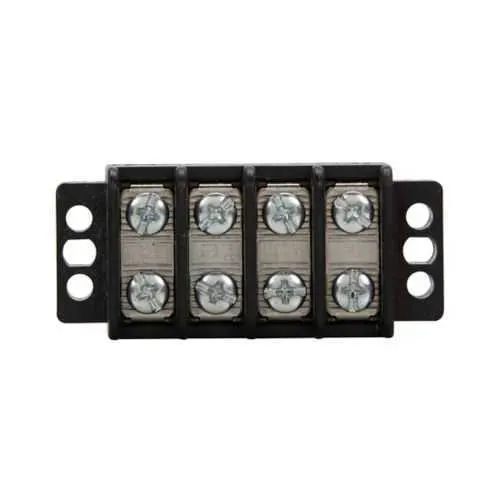

Eaton TB200-26BS Panel Mount Terminal Block - CE RoHS
Part Number: TB200-26BS
Quick Summary
The Eaton TB200-26BS panel mount terminal block connector is designed for high-density wiring in industrial control panels. Engineers often struggle with reliable, safe connections in tight spaces and the need for fast, corrosion-resistant terminations. CE Marked and RoHS compliant design provides regulatory peace of mind while the 26 poles and barrier configuration support complex, multi-channel wiring. The 12.12 inch depth with a compact 1.12 by 0.56 inch footprint helps maximize cabinet space and simplify routing. Rugged tin-plated brass terminals and nickel-plated SEMS screws deliver durable performance in demanding industrial environments. Together, these features translate into faster assembly, reduced maintenance, and improved reliability across power, control, and automation applications.
Product Information
Extended Description
TB200-26BS Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800 V, 300 V, 30 A, 26-pole, Black, Tin-plated brass terminal, Nickel-plated brass SEMS philslot screw
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200-26BS
UPC
051712194372
Product Length/Depth
12.12 in
Product Height
0.56 in
Product Width
1.12 in
Product Weight
4.2 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
300 V
Number Of Poles
26-pole
Type
Barrier
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Feature: 26-pole barrier design provides clearly separated wiring channels, which reduces miswiring risk. Business Impact: Clear separation helps maintain signal integrity, simplifies testing, and speeds fault isolation in complex control schemes. Application: Ideal for multi-channel machine controllers, motor drives, and power distribution blocks where dense wiring is unavoidable. Feature: Tin-plated brass terminals combined with nickel-plated SEMS philslot screws deliver corrosion resistance and secure torques. Business Impact: Longer service life in harsh environments and reduced maintenance costs due to low contact resistance changes. Application: Particularly beneficial in humid manufacturing floors, outdoor enclosures, and equipment that experiences frequent thermal cycling. Feature: 4800 V breakdown voltage delivers higher isolation between adjacent circuits. Business Impact: Enhances safety margins and allows mixed-voltage operations without compromising insulation. Application: Suitable for panels with a mix of low- and high-voltage wiring, medical devices, or automation stations that demand robust isolation. Feature: 12.12 in depth with a compact 1.12 by 0.56 inch footprint supports dense cabinet layouts. Business Impact: Maximizes usable panel space, simplifies cable routing, and reduces enclosure size for new builds. Application: Retrofit and new equipment projects in space-constrained automation lines. Feature: CE Marked and RoHS compliant design aligns with global regulatory demands. Business Impact: Streamlines certification cycles and makes it easier to sell into regulated markets. Application: OEMs delivering equipment to Europe and other RoHS-adherent regions. Feature: 26-pole barrier configuration supports complex control circuits with clear channel economics. Business Impact: Improves installation accuracy and accelerates commissioning in multi-axis, multi-sensor systems. Application: Industrial robots, packaging lines, and process controls. Feature: 30 A, 300 V ratings ensure compatibility with common industrial loads. Business Impact: Enables reliable operation across input conditions while meeting safety standards. Application: Power distribution blocks and machine control panels.
Get a Quick Quote for a Eaton TB200-26BS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB200-26BS?
Enquire Now
FAQs
Begin by mounting the 26-pole barrier terminal block onto the panel DIN rail or a suitable mounting surface per Eaton’s installation guidelines. Route conductors to each pole, strip ends appropriately, and secure with the nickel-plated SEMS philslot screws. Tighten to the recommended torque to maintain solid contacts and prevent vibration issues in harsh environments.
TB200-26BS provides a 30 A amperage rating and a 300 V voltage rating across 26 poles. It features a breakdown voltage of 4800 V for isolation between adjacent circuits, making it suitable for mixed-voltage panels. This combination supports reliable operation in demanding control and power distribution applications.
Yes. The TB200-26BS terminal block is CE Marked and RoHS compliant, which helps streamline regulatory approvals for European and other markets. It supports compliant material use and safety standards critical for new equipment builds and retrofits.
Best suited for high-density control panels, machine controls, and power distribution blocks where 26 separate channels must be organized in a compact footprint. The barrier design, corrosion-resistant hardware, and robust insulation make it ideal for automation equipment, packaging lines, and process control systems.
The tin-plated brass terminals and nickel-plated screws resist corrosion, reducing maintenance needs and contact resistance drift. The dense, organized 26-pole layout speeds wiring changes and commissioning, lowering downtime and improving lifecycle ROI for OEMs and system integrators.
