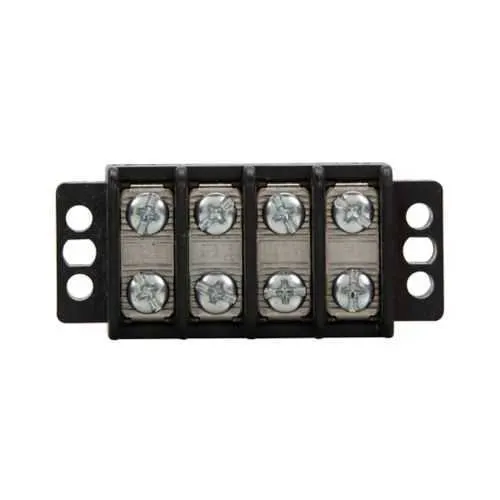

Eaton TB200-30SP panel mount terminal block - CE RoHS Compliant
Part Number: TB200-30SP
Quick Summary
The Eaton TB200-30SP panel mount terminal block is a high-density connector for rapid power distribution in control panels. Its compact, barrier-style design helps you manage crowded cabinet layouts and minimize wiring errors during commissioning. This TB200 series carries CE marking and RoHS compliance, with reliability signals from its tin-plated brass terminals and zinc-plated steel screws. Designed for efficiency and long service in automation cabinets, it supports scalable layouts with 30 poles in a single block. Engineers benefit from straightforward installation, reduced terminal count, and improved change-out flexibility, especially when upgrading legacy equipment.
Product Information
Extended Description
TB200-30SP Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800 V, 300 V, 30 A, 30-pole, 6-32 TPI Screw, Black, Tin-plated brass terminal, Zinc-plated steel SEMS philslot screw
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200-30SP
UPC
051712272025
Product Length/Depth
13.87 in
Product Height
0.56 in
Product Width
1.12 in
Product Weight
4.2 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
300 V
Number Of Poles
30-pole
Type
Double row, barrier
Feature → Business Impact → Application: The TB200-30SP delivers 30A at 300V across 30 poles in a double-row, barrier configuration with a 13.87 in length, enabling high-density power distribution in a compact footprint. Benefit: reduces enclosure depth and wiring complexity, accelerating panel commissioning for machine builders and OEM integrators. Application: use in control panels and automation cabinets where space is at a premium and traceability is essential. Feature → Business Impact → Application: Tin-plated brass terminals and zinc-plated steel SEMS screws provide durable connections with corrosion resistance in harsh industrial environments. Benefit: longer service life and lower maintenance costs for continuous-operation equipment. Application: process automation, packaging lines, and robotics cells requiring reliable terminations. Feature → Business Impact → Application: Barrier design and double-row topology improve isolation between circuits. Benefit: minimizes cross-talk and fault propagation, enabling safer, cleaner wiring harnesses. Application: any multi-circuit distribution block in high-density panels. Feature → Business Impact → Application: Standard 6-32 TPI screws ensure secure terminations with widely available tooling. Benefit: faster field assembly and easier spare-part management. Application: retrofit projects and new builds alike. Feature → Business Impact → Application: CE Marked and RoHS compliant status simplifies regulatory approvals and sustainability reporting. Benefit: reduces project risk and supports environmental compliance. Application: OEM manufacturing, electrical cabinets, and modular automation installations.
Get a Quick Quote for a Eaton TB200-30SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB200-30SP?
Enquire Now
FAQs
Plan a panel cutout and mounting sequence that aligns the 30-pole double-row block with the available vertical clearance. Use standard 6-32 TPI screws for secure mounting and maintain proper spacing to avoid harness interference. Ensure the wiring run respects the 30A current rating and keep conductor insulation intact for reliable terminations.
TB200-30SP provides a 30A amperage rating and a 300V voltage rating across 30 poles. The terminal block is designed for high-density distribution with a breakdown voltage specification of up to 4800 V, supporting robust performance in industrial panels.
TB200-30SP features tin-plated brass terminals and zinc-plated steel screws, delivering durability in typical industrial environments. There is no IP rating listed for outdoor use; consult Eaton for ruggedized variants or protective housings if exposure to moisture, dust, or chemicals is a concern.
TB200-30SP is CE marked and RoHS compliant, aligning with European regulatory and environmental standards. These certifications help simplify audits, ensure product suitability for European equipment, and support green manufacturing initiatives. For additional regulatory needs, confirm with the manufacturer whether other certifications are available for your application.
The 30-pole, high-density design reduces the number of discrete blocks in a cabinet, cutting wiring time and harness complexity. Compatibility with standard TB200 components and reliable tin-plated terminations contribute to lower maintenance and spare-parts costs, providing measurable ROI through faster commissioning and easier upgrades.
