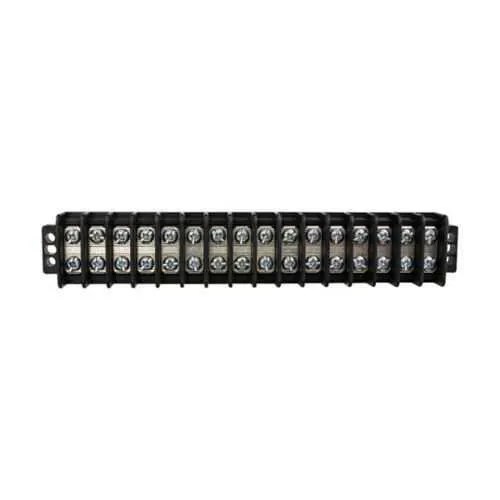

Eaton TB200HB-16 Terminal Block - CE RoHS Compliant
Part Number: TB200HB-16
Quick Summary
Eaton TB200HB-16 terminal block provides panel-mount termination for multi-conductor control circuits. In dense control panels, engineers struggle with space constraints, insulation barriers, and wiring reliability. This device is CE Marked and RoHS compliant, helping satisfy regulatory requirements and supplier audits. The TB200HB-16 features a 16-pole, double-row high-barrier design with #6-32 TPI screws and tin-plated brass terminals, delivering robust performance in industrial automation. By combining compact form with high electrical ratings and proven durability, it enables faster wiring, easier maintenance, and lower total cost of ownership in motor control centers and PLC I/O assemblies.
Product Information
Extended Description
TB200HB-16 Eaton: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 600V, 30A, Double row, high barrier, 16-pole, #6-32 TPI Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw
Product Name
Eaton Bussmann TB200 series panel mount terminal block connector
Catalog Number
TB200HB-16
UPC
051712272377
Product Length/Depth
7.75 in
Product Height
0.75 in
Product Width
1.37 in
Product Weight
0.8 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Sixteen-pole
Type
Double row, high barrier
The TB200HB-16 utilizes a 16-pole, double-row high-barrier design to maximize wiring density while maintaining insulation integrity, reducing panel width and simplifying routing in automated systems. This configuration translates to measurable space savings and safer, more reliable terminations in motor control centers and machine control panels. With a 30A, 600V rating, the block supports both power and control signals, enabling fewer parts and shorter install times in electrical assemblies. Tin-plated brass terminals paired with zinc-plated steel philslot screws offer corrosion resistance and durable torque retention, improving long-term reliability in harsh industrial environments. The compact 7.75 in length, 0.75 in height, and 1.37 in width help optimize enclosure layouts and reduce mounting footprint, while CE Marked and RoHS compliant status streamlines compliance when wiring EU and global equipment. Compatibility with standard panel boards and straightforward screw termination further accelerates installation and reduces commissioning risk.
Get a Quick Quote for a Eaton TB200HB-16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TB200HB-16?
Enquire Now
FAQs
TB200HB-16 is designed for panel-mount installation using #6-32 TPI screws and tin-plated brass terminals. It fits standard 16-pole, double-row terminal block mounting patterns and aligns with typical control cabinet rail spacing. When installing, ensure clean conductor termination, proper torque on screws, and adequate insulation barriers. The device's dimensions (7.75 in length, 0.75 in height, 1.37 in width) help confirm enclosure fit before wiring. For best results, verify the panel cutout and mounting hardware compatibility with your enclosure supplier specifications.
TB200HB-16 provides a 30A amperage rating and a 600 V voltage rating. It comprises sixteen poles arranged in a double-row, high-barrier configuration. This combination supports dense wiring for both power distribution and signal termination in automation panels, enabling reliable operation of PLC I/O and control circuits with a compact footprint.
Yes, TB200HB-16 is CE marked and RoHS compliant, which supports compliance for many EU-driven machinery applications and regulatory audits. When additional certifications are required (e.g., UL or CSA), contact the manufacturer for guidance on alternatives or equivalencies. Its high-density, robust construction makes it suitable for control cabinets, motor drives, and automation panels in industrial environments that demand reliable terminations.
Certified features include CE marking and RoHS compliance, indicating conformity with European safety, health, and environmental requirements. For additional certifications beyond CE/RoHS, you should contact Eaton or the authorized distributor to explore available options or equivalents. This ensures your wiring solution aligns with specific industry or regional regulatory demands while maintaining streamlined procurement.
The TB200HB-16 uses tin-plated brass terminals and zinc-plated steel philslot screws, delivering good corrosion resistance and stable torque over time, which reduces maintenance cycles and avoids frequent re-termination. The high-barrier design minimizes arc risks and improves insulation integrity, contributing to longer service life and lower downtime in automated systems. With its compact footprint and straightforward termination, field servicing and panel upgrades can be completed quickly, delivering a favorable total cost of ownership.
